PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	690 × 686 × 1350 mm
Overall assembled dimensions	690 x 686 x 1350 mm
Five-star base diameter	350 mm
Caster diameter	60 mm
Seat height adjustment range upper endpoint	520 mm
Seat pan width	510 mm
Seat pan depth	500 mm
Backrest height from seat surface	800 mm
Headrest adjustment travel (height/angle/depth)	60 mm / 35° / 40 mm
Armrest height adjustment travel	80 mm
Extended footrest length from seat front	320 mm
Knee clearance under seat (lowest height)	150 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight reference upper limit	19.5 kg
Maximum recommended user weight	204 kg
Seat foam density	45 kg/m³
Seat foam thickness	60 mm
Backrest frame static load capacity	120 kg
Five-star base static load rating	1136 kg
Gas lift durability cycles	120000 cycles
Caster rolling durability cycles	300000 cycles
Mesh upholstery abrasion resistance	50000 Martindale rubs
Seam stitching pitch	8 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable geometric-patterned polyester mesh
Seat upholstery	Matching geometric mesh over high-density resilient foam
Headrest upholstery	Padded mesh-covered cushion with internal foam core
Armrest pads	Soft molded PU padded tops on PA/nylon support brackets
Internal support frame	Reinforced nylon and steel seat/back frame
Five-star base	Powder-coated heavy-duty steel five-prong base
Casters	Dual-wheel silent PU/nylon swivel casters with metal axles
Gas lift cylinder	SGS-certified Class 4 steel gas lift with powder-coated finish
Recline mechanism	Thick-gauge steel multi-lock tilt chassis under seat
Retractable footrest	Mesh-padded steel frame footrest with sliding track
Hardware components	Zinc-plated steel bolts, adjustment levers and locking hardware
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic height adjustment via side lever, 100mm stroke from Class 4 gas lift
Multi-position backrest recline	Lockable recline from 90° upright to 135° reclined, with adjustable tilt tension
3D adjustable armrests	Height, width, and pivot adjustment with padded PU tops to support forearms
Multi-axis adjustable headrest	Height, angle, and depth adjustment to support neck and cervical spine
Retractable pull-out footrest	Slides out from under seat to support lower legs during reclined rest
Adaptive lumbar support	Contoured mesh back zone that flexes to support natural lower back curve
Smooth rolling mobility	Dual-wheel casters roll freely on hard floors and low-pile carpet
Tilt tension control	Under-seat knob adjusts recline resistance to match user weight
Backrest recline upper angle	135°
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office workspace	Suitable for daily 8+ hour desk work, with ergonomic support for long seated tasks
Home office setup	Fits compact home workspaces, with recline and footrest for short work breaks
Open-plan task workstations	Suitable for shared commercial office environments, durable construction for multi-user use
Coworking spaces	Adjustable features accommodate a wide range of user body sizes and sitting preferences
Study and gaming spaces	Recline function and footrest support both focused study and casual computer/gaming use
Conference room secondary seating	Appropriate for meeting rooms where extended seated discussion occurs
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applicable European standard for office chair dimensional safety requirements, reference for ergonomic fit
EN 1335-2:2018	Applicable European standard for office chair strength, durability and stability, reference for performance testing
EN 1022:2018	Applicable European standard for seating stability determination, reference for tip resistance verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applicable BIFMA standard for general-purpose office chairs, reference for base, back, and caster load tests

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 35607-2017	Applicable standard for green product evaluation of office furniture, reference for low-VOC material requirements
GB/T 10357.2-2013	Applicable test standard for chair mechanical stability, reference for structural safety verification
GB/T 10357.3-2013	Applicable test standard for chair strength and durability, reference for load cycle verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 35607-2017: Applicable standard for green product evaluation of office furniture, reference for low-VOC material requirements;
2. GB/T 10357.2-2013: Applicable test standard for chair mechanical stability, reference for structural safety verification;
3. GB/T 10357.3-2013: Applicable test standard for chair strength and durability, reference for load cycle verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-FR-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-FR-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-FR-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

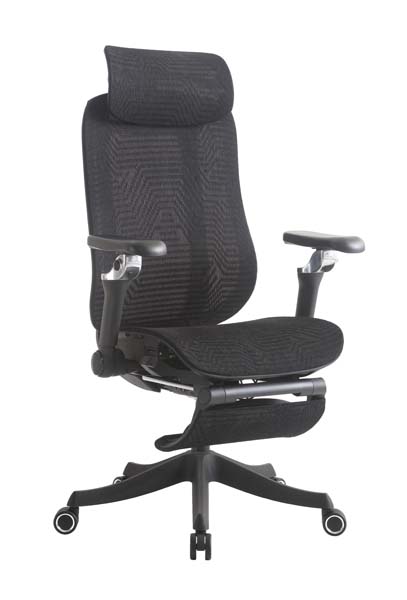

The unbranded ERG-MESH-FR-001 high-back ergonomic office chair features a cohesive black finish, with a tall mesh backrest rising 800mm from the seat surface paired with a generously proportioned 510mm wide, 500mm deep seat pan. Its compact, streamlined form sits atop a 350mm diameter steel five-star base, supporting smooth movement without excessive visual bulk, designed to balance professional aesthetic with casual rest functionality. The chair is built for long-term durability, starting with a breathable geometric-patterned polyester mesh backrest upholstery that flexes with user movement. The seat pairs matching geometric mesh over 60mm thick, 45kg/m³ high-density resilient foam for cushioned, pressure-relieving support, while the headrest uses a padded mesh-covered cushion with an internal foam core. The internal support structure combines reinforced nylon and steel for the seat and back frame, anchored to a powder-coated heavy-duty steel five-prong base. Soft molded PU arm pads sit on PA/nylon support brackets, and dual-wheel silent PU/nylon swivel casters with metal axles attach to the base. The seat mechanism uses a thick-gauge steel multi-lock tilt chassis, paired with an SGS-certified Class 4 steel gas lift rated for 120,000 durability cycles, supporting a maximum recommended user weight of 204kg. The frame carries a 120kg static load capacity, and the five-star base holds an 1136kg static load rating. Total assembled dimensions measure 690 x 686 x 1350mm, with a maximum adjustable seat height of 520mm, and the unit weighs a maximum of 19.5kg when fully assembled. The chair delivers comprehensive ergonomic support for extended use. Pneumatic seat height adjustment operates via a side lever with a 100mm stroke, while the backrest offers lockable recline from 90 degrees upright to 135 degrees reclined, with adjustable tilt tension to match user preference. 3D armrests adjust for height, width, and pivot angle to cradle forearms, and the multi-axis headrest offers 60mm of height travel, 35 degrees of angle adjustment, and 40mm of depth adjustment to support the neck and cervical spine. A retractable pull-out footrest slides out from under the seat to support lower legs during reclined rest, while the contoured mesh back zone provides adaptive lumbar support that flexes to match the natural lower back curve. The dual-wheel casters roll smoothly across hard floors and low-pile carpet for unobstructed movement. This chair suits a broad range of public and private seated spaces. It supports 8+ hours of daily desk work in private office workspaces, fits compact home office setups with its recline and footrest for short rest breaks, and stands up to multi-user wear in open-plan task workstations and coworking spaces, where its wide range of adjustable features accommodates diverse body sizes and sitting preferences. It also works well for study and gaming spaces, supporting both focused task work and casual leisure use, and serves as appropriate secondary seating in conference rooms for extended seated discussions.

High-Back Mesh Ergonomic Office Chair with Retractable Footrest and Adjustable Headrest Specifications
