Name: High-Back Ergonomic Mesh Office Chair with Adjustable Headrest
Brand: YUXIANG
SKU: CYYS0C

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

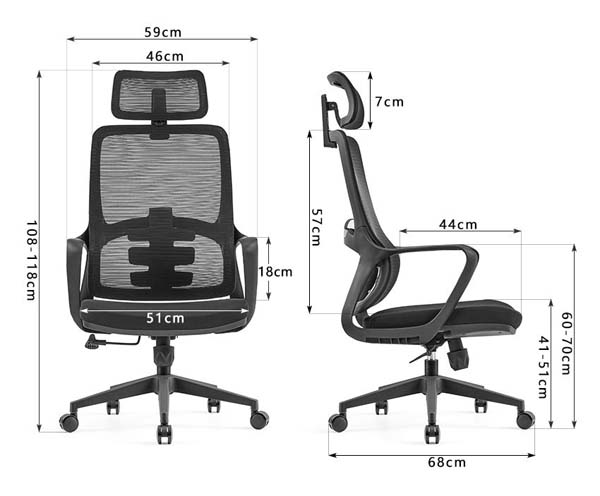

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	590 × 680 × 1180 mm
seat width	510 mm
seat depth	440 mm
seat height adjustment range	510 mm
backrest width	460 mm
backrest height	570 mm
headrest height	70 mm
armrest height above seat	180 mm
five-star base diameter	680 mm
caster diameter	60 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net weight	18 kg
maximum static load capacity	200 kg
recline angle range	125 degrees
swivel rotation	360 degrees
seat foam density	45 kg/m³
foam rebound rate	55%
caster rolling durability	100000 cycles
warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

backrest panel	Breathable tensioned polyester mesh over PP reinforced frame
headrest pad	Tensioned mesh surface over curved PP support frame
seat pan internal support	12 mm thick plywood base
seat cushion	50 mm thick high-density foam with breathable fabric upholstery
armrests	Fixed curved PP loop armrests connecting seat to back frame
gas lift cylinder	Class 3 steel gas lift, 100 mm stroke, 85 mm outer diameter
tilt mechanism	3 mm thick steel butterfly tilt plate with tension adjustment
five-star base	Reinforced nylon five-star base, 340 mm center diameter
casters	60 mm diameter mute nylon twin-wheel casters
upholstery fabric thickness	1.2 mm
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

seat height adjustment	Pneumatic gas lift adjusts seat height between 410 mm and 510 mm via under-seat lever
backrest recline	Butterfly tilt mechanism supports 125degree recline with lockable upright position
tilt tension control	Adjustable tension knob modulates recline resistance to match user weight
360-degree swivel	Full rotation around central axis for easy desk access without moving base
headrest adjustment	Height and angle adjustable headrest supports neck during recline
lumbar support	Contoured integrated central lumbar support maintains lower spine alignment
mobility	Five dual-wheel casters enable smooth rolling on hard and carpeted floors
armrest support	Fixed curved armrests provide stable forearm support at 180 mm above seat
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

corporate open offices	Suitable for individual workstations with standard 760 mm desk height
home office workspaces	Fits residential desk setups for daily 8 hour computer work
meeting and conference rooms	Appropriate for guest or participant seating in meeting spaces
co-working spaces	Durable construction supports high-traffic shared desk use
managerial private offices	High-back design offers upper back and neck support for extended work sessions
study and student desks	Adjustable height fits teen and adult users for homework or study use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applies to office work chair dimensional safety and performance requirements
EN 1335-2:2018	Applies to office chair structural strength and durability test methods
EN 1021-1:2014	Applies to upholstered furniture cigarette ignition resistance requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to general-purpose office chair safety, durability and structural requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to office furniture chair dimensional stability and strength requirements
GB/T 35607-2017	Applies to office furniture ergonomic performance evaluation for desk chairs
GB 18584-2001	Applies to indoor furniture formaldehyde emission limit requirements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to office furniture chair dimensional stability and strength requirements;
2. GB/T 35607-2017: Applies to office furniture ergonomic performance evaluation for desk chairs;
3. GB 18584-2001: Applies to indoor furniture formaldehyde emission limit requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MSH-FXARM-590

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MSH-FXARM-590

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MSH-FXARM-590Open Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG High-Back Ergonomic Mesh Office Chair, model ERG-MSH-FXARM-590, is a purpose-built seating solution engineered for extended daily use across professional and residential settings. Its streamlined, functional silhouette features a tall supportive backrest paired with a height- and angle-adjustable headrest, fixed curved armrests that connect seamlessly between the seat and back frame, and a classic five-star base configuration that creates a stable, balanced footprint suited to standard desk layouts. Constructed for long-term durability, the chair pairs a breathable tensioned polyester mesh backrest set over a PP reinforced frame with a matching mesh headrest surface mounted to a curved PP support, promoting consistent airflow to reduce heat buildup during long work sessions. The seat rests on a 12 mm thick plywood internal base, topped with a 50 mm thick high-density foam cushion upholstered in breathable fabric for balanced comfort and support. Core structural components include a Class 3 steel gas lift cylinder, a 3 mm thick steel butterfly tilt plate with tension adjustment, a reinforced nylon five-star base, and 60 mm diameter mute nylon twin-wheel casters. The chair supports a maximum static load of 200 kg, with a net weight of 18 kg. Practical, user-centric functions support adaptable comfort for diverse users: pneumatic seat height adjustment is operated via an under-seat lever, the butterfly tilt mechanism enables a 125-degree recline with a lockable upright position, and an adjustable tension knob modulates recline resistance to match individual user weight. A full 360-degree swivel allows easy access to surrounding desk surfaces without repositioning the base, the adjustable headrest provides targeted neck support during reclined positions, and a contoured integrated central lumbar support maintains healthy lower spine alignment. The smooth-rolling casters move easily across both hard flooring and carpeted surfaces. This chair is well suited for a wide range of spaces, including corporate open office workstations aligned with standard 760 mm desk heights, home office setups for daily full-shift computer work, conference and meeting room participant seating, high-traffic co-working shared desks, private managerial offices requiring extended-session upper back and neck support, and residential study areas serving teen and adult users for schoolwork or personal projects. Procurement teams should note the product ships as one set across two cartons, with a reference assembly time of 40 minutes per unit, and packaged weight of 23 kg per set, with 135 sets fitting in a 20GP container at 85% space utilization, supporting efficient bulk ordering for large space fit-outs.

High-Back Ergonomic Mesh Office Chair with Adjustable Headrest Specifications
