PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 640 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended maximum user weight	150 kg
Net chair weight	20.2 kg
Seat foam density	50 kg/m³
Seat foam thickness	80 mm
Seat foam rebound rate	60%
Recommended user height range	180 cm
Caster rolling durability	100000 cycles
Gas lift cycle rating	120000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support surface	Tensioned breathable grey polyester mesh
Backrest structural frame	White reinforced polypropylene with glass fiber
Seat support core	12mm thick multi-layer plywood
Seat cushion padding	Molded high-density polyurethane foam
Seat upholstery	Woven abrasion-resistant grey polyester fabric
Headrest surface	Matching grey breathable mesh with PP frame
Armrest supports	White powder-coated steel uprights with soft TPU arm pads
5-star base	Chrome-plated 1.5mm thick steel construction
Casters	60mm PU-wrapped nylon dual-wheel casters
Height adjustment gas lift	Class 3 chrome-plated steel gas lift
Seat shell understructure	White molded polypropylene
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel function	Full rotation enabled by central gas lift and base assembly
Seat height adjustment	130mm vertical travel controlled by right-side lever, via Class 3 gas lift
Backrest tilt function	14-degree recline with single-position lock at upright position
2D headrest adjustment	60mm vertical height adjustment plus 15-degree angle tilt
3D lumbar support adjustment	70mm vertical and 30mm depth adjustment for lower back fit
Armrest adjustment	80mm height adjustment plus forward/back slide and pad angle rotation
Smooth rolling mobility	Dual-wheel casters roll freely on hard floors and low-pile carpet
Tilt tension control	Adjustable resistance knob under seat to match user body weight
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office workstation use	Suitable for 8 hour daily work for administrative and professional staff
Home office setup	Neutral grey-white color scheme matches modern residential workspaces
Co-working shared spaces	Adjustable features accommodate diverse user body types and preferences
Conference meeting room use	Swivel and tilt functions support flexible interaction during long meetings
Study room for students and remote learners	Adjustable lumbar and headrest support reduce fatigue during extended study
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety and performance	EN 1335:2020
Office chair stability testing	EN 1022:2018
Upholstered furniture flame retardancy	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair general purpose standard	ANSI/BIFMA X2017
Gas lift safety requirement	ANSI/BIFMA X5.1 Clause 8
Caster durability requirement	ANSI/BIFMA X5.1 Clause 12

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair strength and durability	GB/T 10357.2
Office chair safety requirement	GB 28007
Upholstered furniture environmental limit	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair strength and durability: GB/T 10357.2;
2. Office chair safety requirement: GB 28007;
3. Upholstered furniture environmental limit: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EOB-W38W-GY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EOB-W38W-GY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EOB-W38W-GYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

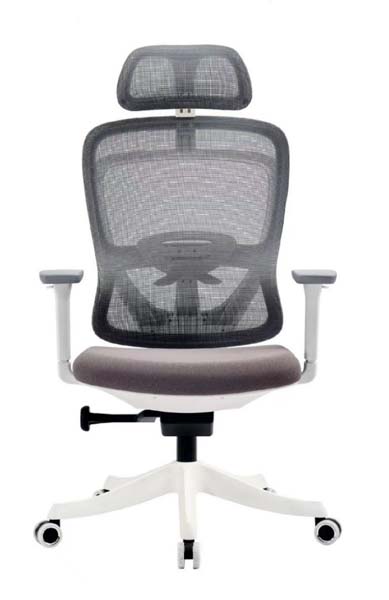

The White Frame Grey Mesh Ergonomic Office Chair, model EOB-W38W-GY, is an unbranded high-back public and workspace seating solution defined by its clean two-tone visual profile. Its crisp white structural frame pairs with soft, neutral grey mesh and fabric surfaces to create a streamlined, contemporary silhouette, with a chrome-finished 5-star base that adds subtle polished contrast without disrupting minimalist space aesthetics. The chair’s open mesh back and padded fabric seat balance visual lightness with substantial structural presence, fitting seamlessly alongside both professional and casual workspace furnishing schemes. Constructed for long-term regular use, the chair features a tensioned breathable grey polyester mesh back supported by a white glass-fiber reinforced polypropylene frame. Its seat is built on a 12mm multi-layer plywood core, topped with molded 50kg/m³ high-density polyurethane foam with a 60% rebound rate, upholstered in abrasion-resistant woven grey polyester; finished seat cushion thickness measures 90mm, with 70mm of padding across the backrest. The headrest uses matching grey mesh set in a polypropylene frame, armrests mount to white powder-coated steel uprights topped with soft TPU pads, the 5-star base is 1.5mm thick chrome-plated steel, and 60mm dual-wheel casters feature a polyurethane wrap over a nylon core. The chair supports a maximum user weight of 150kg, suitable for users up to 180cm in height, with casters tested to 100,000 rolling cycles. Full functional adjustability supports sustained comfort across varied uses: a Class 3 gas lift enables 130mm of seat height adjustment via a right-side lever, paired with full 360-degree swivel. The backrest offers 14 degrees of tilt with a lock for the upright position, while the 2D headrest adjusts 60mm vertically and tilts 15 degrees. The 3D lumbar support, spanning a 240mm support zone, moves 70mm vertically and 30mm in depth to align with the lower back, and armrests adjust 80mm in height, slide forward and back, and rotate at the pad, with 540mm of clear width between armrests. Casters roll smoothly on hard floors and low-pile carpet. This chair is suited for private office workstations supporting 8 hours of daily use for administrative and professional staff, modern home offices, co-working shared spaces, conference rooms, and student or remote learner study rooms, pairing optimally with 2.4m executive desks. For procurement, note each unit ships in 2 cartons with a total packaged gross weight of 23kg and 0.26m³ total volume, allowing 135 sets to load in a 20GP container at 85% space utilization; assembly requires 40 minutes per set.

White Frame Grey Mesh Ergonomic Office Chair with Adjustable Headrest and Armrests Specifications
