Automatic mm / inch conversion · Core engineering specifications

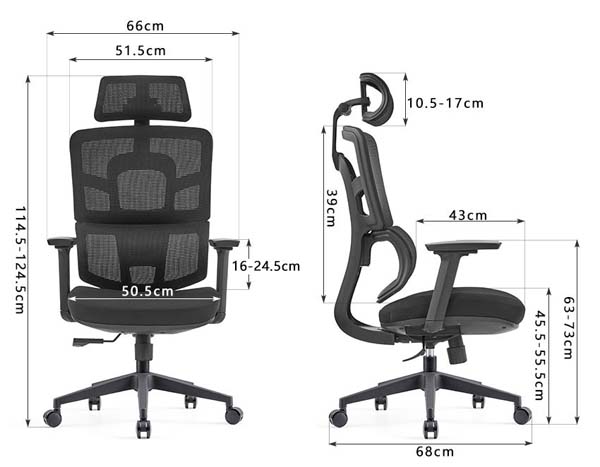

| Overall dimensions (W x D x H) | 660 x 680 x 1245 mm | |
|---|---|---|
| Seat width | 505 mm | |
| Seat depth | 430 mm | |
| Seat height range (floor to seat top) | 555 mm | |
| Backrest height | 390 mm | |
| Five-star base footprint width | 680 mm | |
| Armrest height above seat | 245 mm | |
| Headrest vertical adjustment travel | 170 mm | |
| Backrest frame width | 515 mm | |
| Caster diameter | 60 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net weight | 16 kg | |
|---|---|---|
| Maximum static weight capacity | 150 kg | |
| Recommended daily use duration | 8 hours | |
| Seat foam density | 45 kg/m³ | |
| Seat foam thickness | 90 mm | |
| Mesh upholstery abrasion resistance | 50000 double rubs | |
| Gas lift adjustment cycle rating | 100000 cycles | |
| Caster rolling durability | 100000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Backrest upholstery | High-elastic breathable polyester mesh | |
|---|---|---|
| Backrest frame | PA+fiberglass reinforced nylon | |
| Seat cushion core | Integral molded high-density polyurethane foam | |
| Seat upholstery | Wear-resistant woven fabric | |
| Armrest pads | Soft polyurethane padding over PP core | |
| Mechanism chassis | 3 mm thick cold-rolled steel plate | |
| Five-star base | Reinforced injection-molded nylon | |
| Gas lift cylinder | Black powder-coated steel, Class 3 rated | |
| Casters | PU-wrapped nylon wheels | |
| Seam stitch pitch | 8 mm | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Seat height adjustment | 100 mm travel via side-activated gas lift | |
|---|---|---|
| Headrest adjustment | 170 mm vertical travel with angle tilt | |
| Armrest adjustment | 85 mm vertical height adjustment | |
| Lumbar support | Segmented contoured mesh zone | |
| Recline function | 135° backward tilt with multi-position lock | |
| Swivel function | 360° full rotation around central axis | |
| Mobility function | Dual-wheel casters roll freely on hard floors and carpet | |
| Tilt tension control | User-adjustable resistance dial | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Home office workspace | Suitable for daily computer work, study and remote work tasks, 8+ hour use | |
|---|---|---|
| Corporate open-plan offices | Commercial-grade durability for shared workstations and employee desks | |
| Conference and meeting rooms | Adjustable support for extended meetings and collaborative work sessions | |
| Executive private offices | Ergonomic support matches professional desk setups for management roles | |
| Co-working shared spaces | Adjustable features fit diverse user heights and seating preferences | |
| Student study areas | Posture support for long study sessions at home or dormitory desks | |
| Recommended desk height pairing | 760 mm standard office desks | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
| EN 1335-1:2000 | Applies to office chair dimensional safety and ergonomic performance requirements | |
|---|---|---|
| EN 1335-2:2018 | Applies to office chair structural strength, durability and stability testing | |
| EN 1335-3:2009 | Applies to office chair safety test methods for structural components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applies to general-purpose office chair safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA G1-2013 | Applies to ergonomic guideline alignment for adjustable seating |
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to office chair dimensional stability and strength testing for general office use | |
|---|---|---|
| GB/T 10357.2-2013 | Applies to chair backrest static load durability testing requirements | |
| GB/T 10357.3-2013 | Applies to chair seat and armrest static load performance testing |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to office chair dimensional stability and strength testing for general office use; 2. GB/T 10357.2-2013: Applies to chair backrest static load durability testing requirements; 3. GB/T 10357.3-2013: Applies to chair seat and armrest static load performance testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
