Automatic mm / inch conversion · Core engineering specifications

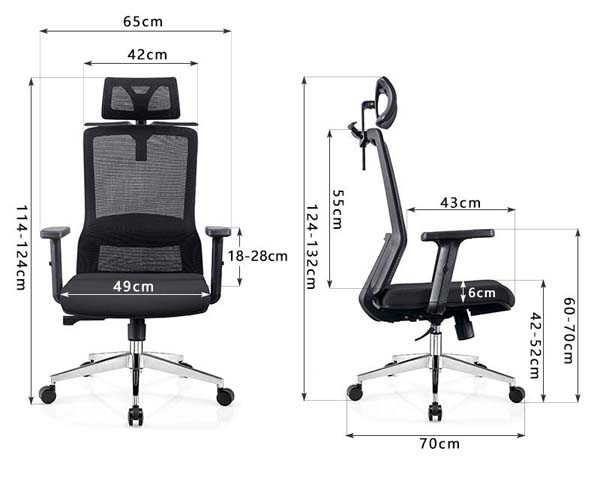

| Overall dimensions | 650 x 700 x 1320 mm | |
|---|---|---|
| Seat width | 490 mm | |
| Seat depth | 430 mm | |
| Seat height adjustment range (floor to seat) | 520 mm | |
| Seat cushion thickness | 60 mm | |
| Armrest height above seat | 280 mm | |
| Headrest width | 420 mm | |
| Headrest mounting height above seat | 550 mm | |
| 5-star base diameter | 700 mm | |
| Backrest width at widest point | 420 mm | |
| Total adjustable chair height range | 1320 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended maximum user weight | 150 kg | |
|---|---|---|
| Net chair weight | 18 kg | |
| Foam seat cushion density | 40 kg/m³ | |
| Foam cushion rebound rate | 45% | |
| Suitable user height range | 1880 mm | |
| Mesh back tensile durability | 5 years | |
| Caster rolling durability rating | 100000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Backrest construction | High-tension breathable polyester mesh over PP frame | |
|---|---|---|
| Seat cushion core | 40 kg/m³ high-density molded polyurethane foam | |
| Seat support base | 13 mm thick plywood inner panel | |
| Armrest pads | 20 mm thick PU foam padding on hard PP support | |
| Height adjustment column | Chrome-plated Class 3 steel gas lift | |
| 5-star base | 1.5 mm thick chrome-plated steel | |
| Caster wheels | 65 mm diameter PU soft tread casters | |
| Back frame structure | Glass-fiber reinforced polypropylene | |
| Seat upholstery fabric | 0.8 mm thick wear-resistant polyester fabric | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm |
Adjustment / rotation / tilt / mobility / storage features
| Seat height adjustment | 100 mm stroke via Class 3 gas lift, 360° swivel at all heights | |
|---|---|---|
| Backrest recline function | 135° maximum recline angle with single-position tilt lock under seat | |
| Armrest adjustment | 100 mm vertical height adjustment with fixed horizontal position | |
| Headrest adjustment | 50 mm height adjustment plus 30° angle tilt for neck support | |
| Mobility function | 360° swivel rotation and omnidirectional rolling on 5 casters | |
| Lumbar support | Contoured built-in mesh lumbar zone aligning to lower back curve | |
| Tilt tension control | User-adjustable tension knob to match user weight for recline resistance | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Carton dimensions | 880 x 720 x 400 mm | |
|---|---|---|
| Gross packaged weight | 22 kg | |
| 20ft container loading capacity | 212 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Office workstation use | Suitable for 8-hour daily use by administrative and knowledge workers | |
|---|---|---|
| Home office workspace | Fits standard home desk heights with compact 700mm base footprint | |
| Meeting room seating | Matches modern office aesthetics for conference and collaborative spaces | |
| Manager private office use | High-back design provides upper back support for extended work sessions | |
| Height compatibility | Works with standard 760 mm height office desks for proper seated posture | |
| Flooring compatibility | PU soft casters suitable for hard wood, tile, and low-pile carpet floors | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applies to office chair dimensional and functional performance requirements | |
|---|---|---|
| EN 1335-2:2018 | Applies to structural safety and strength testing requirements for office chairs | |
| EN 1335-3:2009 | Applies to surface and component durability test methods |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applies to general-purpose office chair structural and durability performance |
|---|
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to office chair dimensional measurement and tolerance requirements | |
|---|---|---|
| GB/T 35607-2017 | Applies to green product evaluation standards for office furniture materials | |
| GB 28007-2011 | Applies to structural safety requirements for office seating products |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to office chair dimensional measurement and tolerance requirements; 2. GB/T 35607-2017: Applies to green product evaluation standards for office furniture materials; 3. GB 28007-2011: Applies to structural safety requirements for office seating products; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
