Name: High-Back Ergonomic Mesh Office Chair with Adjustable Headrest and Height-Adjustable Armrests
Brand: YUXIANG
SKU: N9GC7C

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

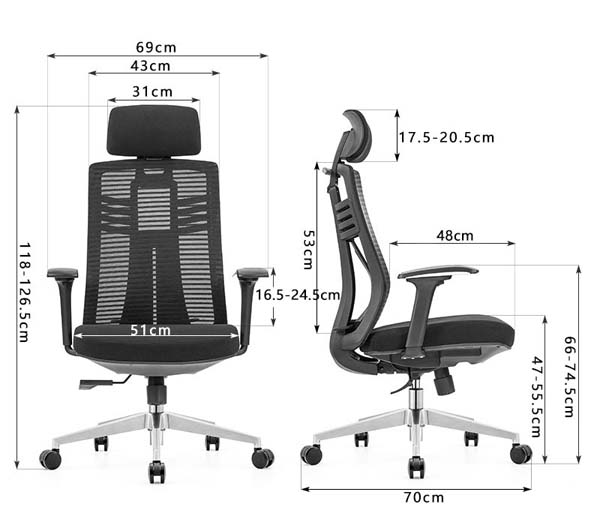

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	700 × 745 × 1265 mm
Seat width	510 mm
Seat depth	480 mm
Seat height range (floor to seat)	555 mm
Backrest height	530 mm
Headrest width	310 mm
Adjustable headrest height	205 mm
Adjustable armrest height (above seat)	245 mm
Armrest spread width	690 mm
Five-star base diameter	700 mm
Backrest frame width	430 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended maximum user weight	181 kg
Net product weight	20 kg
360-degree swivel rotation	360°
Seat foam density	45 kg/m³
Seat foam thickness	60 mm
Backrest mesh abrasion resistance	50000 cycles
Caster rolling durability	100000 cycles
Static load rating for five-star base	1136 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support surface	Breathable woven polyester mesh
Seat cushion core	Molded high-density polyurethane foam
Seat upholstery	Wear-resistant polyester fabric
Headrest cushion	Molded foam with fabric cover
Armrest pads	Soft padded polyurethane
Inner support frame	1.5mm thick welded steel tubing
Five-star base	Polished aluminum alloy
Gas lift cylinder	Chrome-plated steel
Casters	60mm diameter polyurethane on nylon hubs
Tilt mechanism chassis	2.5mm thick stamped steel
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	105mm vertical stroke via Class 3 gas lift, lever-activated under seat
Backrest recline function	125° maximum tilt angle with 3-position lock
Headrest adjustment	30mm vertical height adjustment with fixed tilt
360-degree swivel function	Unrestricted full rotation around central gas lift axis
Tilt tension adjustment	Knob-controlled resistance to match user body weight
Lumbar support	Integrated structured mesh tension zone for mid-back support
Smooth floor mobility	Dual-wheel casters roll on hard floors and low-pile carpet
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office workstations	Suitable for 8-hour daily seated work with ergonomic back and lumbar support
Home office setups	Fits standard 760 mm height desks for remote work and study
Executive private offices	Professional appearance with adjustable features for senior staff use
Conference meeting rooms	Swivel and recline functions support extended meeting use
Shared hot-desking spaces	Adjustable height and armrests suit a wide range of user body types
Call center seating	Durable construction and breathable mesh support long shift use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety recommendation	EN 1335:2020
Office chair strength/durability recommendation	EN 1335:2018
Office chair stability recommendation	EN 1335:2009

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair durability recommendation	ANSI/BIFMA X2017
Caster performance recommendation	ANSI/BIFMA X2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair strength and durability recommendation	GB/T 10357.3
Formaldehyde emission recommendation	GB 18584
Office chair safety recommendation	GB 28007

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair strength and durability recommendation: GB/T 10357.3;
2. Formaldehyde emission recommendation: GB 18584;
3. Office chair safety recommendation: GB 28007;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-HB700

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-HB700

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-HB700Open Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG ERG-MESH-HB700 is a high-back ergonomic mesh office chair designed to balance supportive comfort, professional aesthetics, and long-term durability for varied seating environments. Its sleek, functional silhouette features a tall, contoured mesh backrest paired with a generously padded seat, aligned to maintain neutral posture during extended seated use. The polished aluminum alloy five-star caster base forms a stable, streamlined foundation, with soft dual-wheel casters mounted to each point of the base to enable smooth, unobtrusive movement across flooring surfaces. The chair integrates an adjustable headrest and height-adjustable armrests into its frame, creating a cohesive visual profile that fits both formal and casual workspace layouts.
Constructed for sustained daily use, the chair’s backrest uses breathable woven polyester mesh stretched over a 1.5mm thick welded steel tubing inner frame, with an integrated structured mesh tension zone built in to deliver targeted mid-back lumbar support. The seat cushion features a molded high-density polyurethane foam core wrapped in wear-resistant polyester fabric, paired with soft padded polyurethane armrest pads for comfortable upper body support. The central gas lift cylinder is made of chrome-plated steel, while casters use polyurethane rolling surfaces set on nylon hubs to withstand repeated use over time.
Core functional features are engineered to adapt to diverse user needs: lever-activated seat height adjustment operates via a Class 3 gas lift to deliver a 105mm vertical stroke, while the backrest offers a 125° maximum tilt angle with 3-position lock and a knob-controlled tilt tension adjustment calibrated to match user body weight. The headrest offers 30mm vertical height adjustment with fixed tilt, the chair supports unrestricted 360-degree swivel rotation around its central axis, and armrests adjust vertically to suit individual seating preferences. The breathable mesh back reduces heat buildup during long periods of use, and the durable build supports a maximum user weight of 181 kg.
This chair is well-suited for a wide range of commercial and residential spaces, including open plan office workstations, home office setups paired with standard 760mm height desks, executive private offices, conference meeting rooms, shared hot-desking spaces, and call center environments requiring seating for long shifts. Its adjustable components accommodate a broad range of body types, while its professional appearance fits seamlessly across formal and collaborative workspace designs.
For procurement planning, each chair ships in two cartons, with a packaged gross weight of 23 kg per set, and requires an 40 minutes of assembly per unit. Bulk shipping calculations show 135 sets can be loaded into a 20GP container at 85% space utilization, supporting efficient large-volume order fulfillment for office fit-outs, commercial furnishing projects, or residential workspace upgrades. The chair’s abrasion-resistant mesh and durable casters are engineered to withstand the high traffic of shared work environments, reducing long-term replacement needs for high-use seating deployments.

High-Back Ergonomic Mesh Office Chair with Adjustable Headrest and Height-Adjustable Armrests Specifications
