Automatic mm / inch conversion · Core engineering specifications

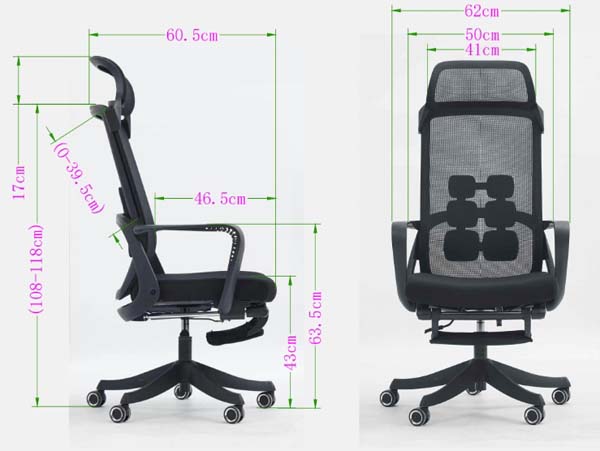

| Overall dimensions | 620 x 650 x 1180 mm | |
|---|---|---|
| Seat width | 500 mm | |
| Backrest width | 410 mm | |
| Seat depth | 465 mm | |
| Minimum seat height | 430 mm | |
| Maximum seat height | 635 mm | |
| 5-star base diameter | 605 mm | |
| Headrest height adjustment travel | 170 mm | |
| Backrest height | 700 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended maximum static load | 150 kg | |
|---|---|---|
| Net product weight | 22 kg | |
| Caster rolling durability | 12000 cycles | |
| Backrest mesh abrasion resistance | 30000 Martindale cycles | |
| Seat foam density | 55 kg/m³ | |
| Seat foam rebound rate | 45% | |
| Gas lift cycle durability | 100000 height-adjust cycles | |
| Recline mechanism cycle durability | 20000 recline cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Backrest upholstery | Breathable black polyester mesh | |
|---|---|---|
| Seat cushion fill | High-density polyurethane foam | |
| Armrest construction | Injection-molded nylon with perforated grip surface | |
| Internal seat frame | 1.5 mm thick stamped steel | |
| 5-star base | Injection-molded black nylon | |
| Gas lift cylinder | 100 mm diameter Class 3 steel gas lift | |
| Casters | 65 mm diameter black nylon twin-wheel casters | |
| Headrest padding | 40 mm thick foam wrapped in matching black mesh | |
| Chassis mechanism | 2.5 mm thick steel knee-tilt mechanism | |
| Fixed armrest construction | Injection-molded matte nylon with perforated grip top | |
| Retractable footrest | 1.2 mm steel frame with 30 mm foam padding | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
| Seat height adjustment | Pneumatic adjustment via Class 3 gas lift with 205 mm total vertical travel | |
|---|---|---|
| Backrest recline function | 90° upright to 170° full recline with 3 locking positions | |
| Retractable footrest | Pull-out steel-framed padded footrest stored under seat | |
| Headrest adjustment | 170 mm vertical height adjustment and 395 mm angular tilt adjustment | |
| 360° swivel function | Smooth full rotation enabled by central swivel joint and caster base | |
| Lumbar support | 6-point fixed contoured lumbar support pads integrated into backrest mesh | |
| Tilt tension adjustment | Adjustable recline tension knob to match user body weight | |
| Headrest recline adjustment travel | 395 mm | |
| Smooth mobility | Twin-wheel casters roll on hard floors and low-pile carpet without scratching | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Home office workspace | Suitable for long-hour desk work with lumbar support and recline rest function | |
|---|---|---|
| Corporate open-plan office | Durable commercial-grade construction for daily employee workstation use | |
| Manager private office | High-back ergonomic design with recline function for executive use scenarios | |
| Break room rest area | Retractable footrest supports short reclined rest breaks during workdays | |
| Home study room | Space-efficient caster base fits standard desk layouts for study and computer use | |
| Co-working shared space | Adjustable height and recline accommodate diverse user body types and preferences | |
| Executive private office | High-back reclining design supports both focused work and short rest periods | |
| Staff break room | Retractable footrest enables comfortable reclined rest during workday breaks |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applicable standard for office chair dimensional safety and ergonomic requirements | |
|---|---|---|
| EN 1335-2:2018 | Applicable standard for office chair structural strength and durability performance | |
| EN 1335-3:2009 | Applicable standard for office chair test methods for structural and safety verification |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Applicable standard for general-purpose office chair safety and performance requirements |
|---|
Standards applicable to China-market projects
| GB/T 3326-2016 | Applicable standard for office chair dimensional measurement and tolerance requirements | |
|---|---|---|
| GB/T 10357.3-2013 | Applicable standard for office chair mechanical strength and durability testing | |
| GB 28007-2011 | Applicable standard for office chair stability and anti-tipping performance requirements | |
| GB 18401-2010 | Standard for textile safety of upholstery materials in furniture |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applicable standard for office chair dimensional measurement and tolerance requirements; 2. GB/T 10357.3-2013: Applicable standard for office chair mechanical strength and durability testing; 3. GB 28007-2011: Applicable standard for office chair stability and anti-tipping performance requirements; 4. GB 18401-2010: Standard for textile safety of upholstery materials in furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
