PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 680 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	22 kg
Recommended user weight limit	136 kg
Backrest recline angle	135 degrees
Seat tilt angle	12 degrees
Caster rolling durability	100000 cycles
Gas lift cycle life	120000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable polyester mesh
Seat upholstery	Woven mesh fabric over high-density foam
Headrest	Curved padded mesh panel
Structural back frame	Glass-fiber reinforced polypropylene
Armrest pads	Soft PU padded surface
Five-star base	Polished die-cast aluminum alloy
Gas lift	Chrome-plated steel Class 3 gas lift
Tilt chassis	3mm thick cold-rolled steel
Casters	Nylon housing with PU tread
Retractable footrest	Black plastic frame with padded mesh surface
Seat inner frame	1.5mm thick plywood core
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic height adjustment via right-side lever
Backrest recline	Multi-position lockable synchro-tilt
Tilt tension adjustment	Rotary knob under seat
Headrest adjustment	Height and angle adjustable
Armrest adjustment	Height adjustable armrests
Swivel function	360-degree full rotation
Retractable footrest	Pull-out sliding footrest
Lumbar support	Integrated contoured lumbar support
Mobility	Smooth-rolling dual casters
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office workspace	Suitable for executive and staff offices where users work 8+ hours daily
Home office setup	Ideal for remote work and long home computing sessions
Open plan workstation	Appropriate for shared commercial office deployments
Break and rest areas	Suitable for short rest periods with extended footrest and recline
Conference meeting rooms	Applicable for long meeting sessions
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety requirement	EN 1335:2018
Ergonomic dimensional requirement	EN 1335:2020
Caster performance requirement	EN 12529:1999

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair performance standard	ANSI/BIFMA X2017
Caster durability standard	ANSI/BIFMA X2017Clause 17
Gas lift performance standard	ANSI/BIFMA X2017Clause 8
Maximum static load capacity	150 kg

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Stability and safety requirement	GB/T 3326
Upholstery durability	GB/T 22808
Base and mechanism strength	GB/T 10357.3

Standardized tender description text

This product must meet the following technical requirements:
1. Stability and safety requirement: GB/T 3326;
2. Upholstery durability: GB/T 22808;
3. Base and mechanism strength: GB/T 10357.3;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MESH-FR-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MESH-FR-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MESH-FR-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

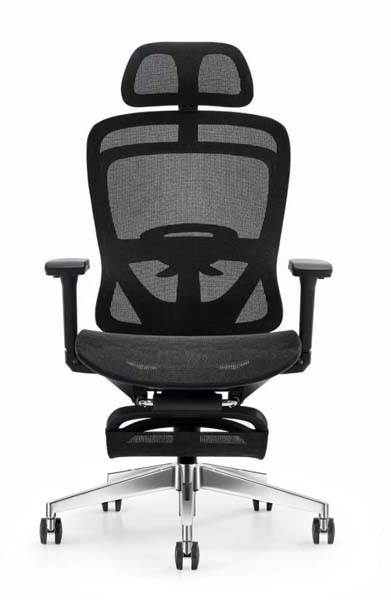

The Ergonomic High-Back Mesh Office Chair with Retractable Footrest, model OFC-MESH-FR-001 from an unbranded product line, is purpose-built to support extended daily use across professional and personal work settings. Its polished five-star aluminum alloy base anchors a streamlined profile, with a contoured mesh backrest topped by a curved padded headrest, and a generous clear 540 mm width between height-adjustable armrests fitted with soft PU padding. The chair’s overall dimensions measure 660 x 680 x 1280 mm, with a 90 mm thick high-density foam seat wrapped in woven mesh fabric, 70 mm thick backrest padding, and a 240 mm tall dedicated lumbar support zone that follows the natural curvature of the spine. Durable construction sits at the core of the chair’s design, with a steel internal frame, glass-fiber reinforced polypropylene structural back components, 3mm thick cold-rolled steel tilt chassis, chrome-plated steel Class 3 gas lift, and nylon casters with smooth PU treads. The 45 kg/m³ seat foam delivers 65% rebound for consistent pressure distribution, while key components are tested to hold up across repeated use: casters support 100,000 rolling cycles, the gas lift sustains 120,000 adjustment cycles, and the chair carries a 136 kg recommended user weight limit at 22 kg net weight. Practical, user-centric functions support both focused work and relaxed rest. A right-side lever controls pneumatic seat height adjustment, while a rotary knob under the seat modulates tilt tension. The multi-position lockable synchro-tilt mechanism allows 12 degrees of seat tilt and 135 degrees of backrest recline, paired with a pull-out retractable footrest for short rest breaks. The headrest adjusts for both height and angle, armrests adjust vertically to match desk height, and the full 360-degree swivel enables easy reach across adjacent work surfaces. The chair fits seamlessly into private executive and staff offices for users working 8+ hours daily, home office spaces for remote work and long computing sessions, open-plan shared workstations, conference rooms for extended meetings, and break areas where short, comfortable rest is needed. It pairs best with a 2.4 m executive desk for optimal ergonomic alignment. For procurement planning, note that each unit ships across two cartons, with a packaged gross weight of 23 kg, total carton volume of 0.26 m³, and an 40 minute assembly time per unit. A 20GP shipping container can hold 135 sets at 85% space utilization, making bulk deployment efficient for large office fit-outs.

Ergonomic High-Back Mesh Office Chair with Retractable Footrest Specifications
