PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 650 × 1100 mm
Seat width	510 mm
Seat depth	510 mm
Maximum seat height	530 mm
Minimum seat height	420 mm
Backrest height	580 mm
Backrest width	515 mm
Five-star base span	700 mm
Armrest height above seat	220 mm
Caster diameter	60 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	18 kg
Recommended user weight capacity	150 kg
Seat foam thickness	80 mm
Seat foam density	45 kg/m³
Foam rebound rate	60%
Upholstery abrasion resistance	50000 cycles
Gas lift static load rating	150 kg
Caster rolling durability	100000 cycles
Warranty period	10 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable light gray woven fabric over molded padding
Seat upholstery	Light gray woven fabric over high-density foam pad
Structural frame	White impact-resistant polypropylene/nylon composite
Armrests	Fixed white PP supports with padded gray top surfaces
Height adjustment column	Chrome-plated steel Class 4 gas lift with black plastic collar
Five-star base	White molded nylon reinforced with glass fiber
Casters	Dual-wheel design with black PU tread and silver hub
Tilt mechanism	2.5mm thick stamped steel plate with black powder coat
Seam stitch pitch	3 mm
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel rotation	Full rotation around central gas lift axis for multi-directional access
Pneumatic seat height adjustment	110 mm vertical stroke controlled by side lever under seat
Tilt recline function	135-degree backward recline with adjustable tension control
Tilt lock	Single-position upright lock for focused desk work
Split dual-panel back support	Independent upper back pads reduce spinal pressure during seated work
Integrated lumbar support	Curved lower back pad provides natural lumbar lordosis support
Smooth rolling mobility	Soft PU casters suitable for hard floors and low-pile carpet
Fixed armrest support	Stationary armrests provide stable forearm support during typing
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging note	Knock-down packing with included hex tool and hardware
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office workstations	Contemporary neutral color and ergonomic support for 8-hour desk shifts
Home office setups	Compact footprint and minimalist style suits residential workspaces
Meeting and conference rooms	Swivel and mobility support collaborative discussion use
Study and co-working spaces	Adjustable height and lumbar support fit diverse user body types
Reception and administrative areas	Clean aesthetic presents a professional front-facing appearance
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applies to office work chair dimensional safety requirements
EN 1335-2:2018	Applies to office work chair structural strength and stability requirements
EN 1335-3:2009	Applies to office work chair test method specifications

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to general-purpose office chair performance and safety requirements
ANSI/BIFMA X5.11-2015	Applies to large occupant office chair load requirements if configured for heavy use
Five-star base static load	1136 kg

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to dimensional measurement standards for office desks and chairs
GB/T 35607-2017	Applies to green product evaluation requirements for office furniture
GB 28007-2011	Applies to general safety technical requirements for children's furniture (if used in youth settings)

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to dimensional measurement standards for office desks and chairs;
2. GB/T 35607-2017: Applies to green product evaluation requirements for office furniture;
3. GB 28007-2011: Applies to general safety technical requirements for children's furniture (if used in youth settings);
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-SB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-SB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-SB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

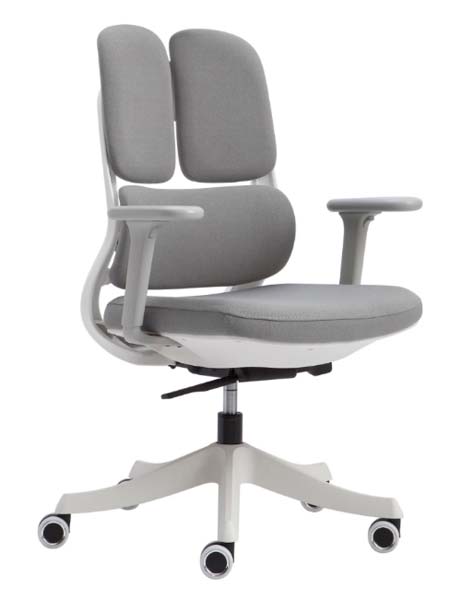

The Light Gray Split-Back Ergonomic Office Chair (model ERG-SB-01, unbranded) features a clean, contemporary visual profile defined by soft light gray woven fabric upholstery paired with crisp white structural elements, creating a neutral, professional appearance that integrates seamlessly across modern work environments. Its split dual-panel backrest measures 580 mm tall and 515 mm wide, positioned above a 510 mm by 510 mm seat, all supported by a sleek white five-star base spanning 700 mm, with fixed armrests that maintain a consistent, uncluttered layout suited to both individual and shared work zones. Built for durable daily use, the chair combines a white impact-resistant nylon composite frame with molded foam padding: the seat uses 80 mm thick high-density foam rated at 45 kg/m³ with a 60% rebound rate, wrapped in fabric tested to 50000 abrasion cycles for long-wear performance. A chrome-plated Class 4 steel gas lift supports the height adjustment system, mounted to a 2.5 mm thick powder-coated stamped steel tilt mechanism, while the glass-fiber reinforced nylon five-star base holds dual-wheel casters with soft black PU treads and silver hubs that roll smoothly without damaging floor surfaces. Fixed armrests feature white structural supports with padded gray top surfaces for consistent forearm support. Core functional features support comfortable, flexible seated work: full 360-degree swivel enables easy multi-directional access to desk surfaces, pneumatic height adjustment delivers 110 mm of vertical travel controlled by a discreet side lever to reach a maximum seat height of 530 mm, and the tilt mechanism allows 135-degree backward recline with adjustable tension, plus a single-position upright lock for focused task work. The split back design uses independent upper pads to reduce spinal pressure, paired with an integrated curved lumbar pad that supports natural spinal alignment, suitable for users up to 150 kg. Soft casters work reliably on hard floors and low-pile carpet. This chair is well-suited for open office workstations supporting 8-hour desk shifts, compact home office setups, collaborative meeting and conference rooms, shared co-working and study spaces, and professional reception or administrative areas; it pairs ideally with a 2.4 m executive desk. For procurement, note the chair ships knock-down in two cartons per set, with a total packaged gross weight of 23 kg, 0.26 m³ total carton volume, and an included hex tool and hardware for assembly that takes 40 minutes per unit; the unbranded design allows flexible integration across diverse furnishing schemes without restrictive brand alignment requirements. The chair has an 18 kg net weight, with overall dimensions of 660 x 650 x 1100 mm to fit standard workspace clearances.

Light Gray Split-Back Ergonomic Office Chair with Fixed Armrests Specifications
