Name: Ergonomic High-Back Mesh Office Chair with Adjustable Headrest
Brand: YUXIANG
SKU: RBS9QY

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

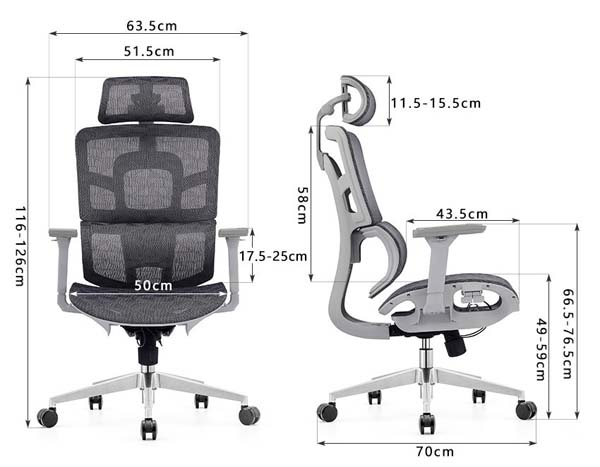

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	635 × 700 × 1260 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Maximum static load capacity	136 kg
Net chair weight	22 kg
Recommended user weight limit	120 kg
Seat foam density	45 kg/m³
Seat foam thickness	60 mm
Back mesh abrasion resistance	50000 cycles
Gas lift class rating	Class 3
Caster rolling durability	40000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable woven polyester mesh
Seat upholstery	Breathable mesh top layer over high-resilience molded foam
Headrest	Padded mesh surface with nylon adjustment bracket
Armrests	Height-adjustable nylon arm supports with padded polyurethane arm pads
Chair frame	Glass-fiber reinforced nylon back frame with integrated lumbar support
Base	Polished aluminum alloy 5-star base
Gas lift	Chrome-plated steel Class 3 gas lift cylinder
Casters	60 mm diameter polyurethane dual-wheel casters
Seat chassis	2.5 mm thick steel tilt mechanism
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Headrest adjustment	155 mm height adjustment with angle tilt for neck support
Armrest adjustment	250 mm vertical height adjustment to match desk height
Seat height adjustment	100 mm vertical gas lift height adjustment
Backrest tilt function	15 degree synchro-tilt with tension adjustment and position lock
360-degree swivel	Full 360 degree horizontal rotation for easy workstation access
Lumbar support	Integrated contoured lumbar zone with flexible frame support
Mobility function	Dual-wheel casters for smooth rolling on hard floors and low-pile carpet
Seat tilt lock	Multi-position lock to secure preferred backrest recline angle
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Home office workspace	Suitable for long-duration seated work in residential home office setups
Corporate open office	Ideal for open-plan workstation seating for administrative and professional staff
Executive private office	Appropriate for management private office use with professional aesthetic
Meeting/conference room	Suitable for conference room seating for meetings of 2 hour duration
Coworking space	Durable construction supports high-turnover use in shared coworking environments
Recommended pairing	Pairs with height-adjustable or fixed-height office desks 760 mm tall
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety reference	EN 1335:2000
Structural strength reference	EN 1335:2009
Stability test reference	EN 1335:2009

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

General office chair standard	ANSI/BIFMA X2017
Durability test reference	ANSI/BIFMA X2017Clause 13
Caster performance reference	ANSI/BIFMA X2017Clause 17

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Recommended applicable standard	GB/T 3326
Stability test reference	GB/T 10357.2
Strength test reference	GB/T 10357.3

Standardized tender description text

This product must meet the following technical requirements:
1. Recommended applicable standard: GB/T 3326;
2. Stability test reference: GB/T 10357.2;
3. Strength test reference: GB/T 10357.3;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-7063

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-7063

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-7063Open Export Tool

Quick Actions

Post an RFQ

Product Description

The YUXIANG ERG-MESH-7063 Ergonomic High-Back Mesh Office Chair with Adjustable Headrest presents a streamlined, professional silhouette tailored for extended seated comfort. Its high-profile backrest flows into a contoured integrated lumbar zone, paired with a generously sized padded mesh headrest and smoothly finished height-adjustable armrests, all anchored to a polished five-star base for a balanced, modern look that complements formal and casual workspace designs alike.
Constructed for consistent long-term use, the chair features a glass-fiber reinforced nylon back frame with built-in lumbar support, paired with a breathable woven polyester mesh backrest rated to withstand 50000 abrasion cycles. The seat combines a breathable mesh top layer over high-resilience 45 kg/m³ molded foam, with a 90 mm finished cushion thickness for even weight distribution. Adjustable components include a padded mesh headrest mounted on a nylon bracket, nylon arm supports topped with soft polyurethane pads, a chrome-plated Class 3 steel gas lift, a 2.5 mm thick steel synchro-tilt chassis, and 60 mm polyurethane dual-wheel casters fitted to the polished aluminum alloy five-star base. The chair supports a maximum static load of 136 kg, with a recommended user weight limit of 120 kg.
Functional design supports personalized comfort for diverse users: the headrest offers 155 mm of height adjustment plus angle tilt for customized neck support, while armrests adjust 250 mm vertically to align with desk surfaces, and seat height adjusts 100 mm via the gas lift. The backrest delivers 15 degrees of synchro-tilt with adjustable tension and a secure position lock, full 360-degree swivel for easy access to surrounding workstation items, and smooth rolling mobility across hard floors and low-pile carpet. The clear width between armrests measures 540 mm, with a 240 mm tall lumbar support zone and 70 mm thick backrest padding for targeted support.
This chair is suitable for long-duration use in home office workspaces, open-plan corporate offices for administrative and professional staff, private executive offices with its polished professional aesthetic, conference rooms for 2-hour meetings, and high-turnover shared coworking spaces. It pairs seamlessly with 760 mm tall fixed or height-adjustable office desks. For procurement planning, note that each unit ships in 2 cartons with a packaged gross weight of 23 kg, requires 40 minutes of assembly per set, and fits 135 units in a 20GP container at 85% space utilization, making it a practical choice for both small-scale fit-outs and large-volume workspace deployments.
