PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 700 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	22 kg
Maximum static user weight capacity	150 kg
Seat foam density	45 kg/m³
Seat foam thickness	80 mm
Backrest foam thickness	50 mm
Recommended daily usage duration	8 hours
Caster rolling durability cycles	40000 cycles
Gas lift rated cycles	100000 cycles
Gas lift rated actuation cycles	100000 cycles
Backrest tilt static load capacity	120 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Smooth PU leather with stitched seams
Internal seat support frame	1.8 mm thick welded steel tube
Armrests	Injection-molded PP plastic with padded top surface
Five-star base	1.5 mm thick chrome-plated polished steel
Height adjustment gas lift	Class 3 50 mm diameter steel gas spring
Tilt mechanism chassis	2.5 mm thick stamped steel plate
Casters	50 mm diameter black PU roller wheels with metal stems
Seat core padding	High-density polyurethane molded foam
Retractable footrest	Steel support frame with padded PU top surface
Fixed armrests	Injection-molded PP plastic with matte black finish
Back core padding	Contoured high-density polyurethane foam
Integrated headrest	Curved PU-upholstered foam section at backrest top

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel rotation	Full rotation around central axis for multi-directional access
Pneumatic seat height adjustment	100 mm vertical stroke controlled by right-side lever
Backrest recline with tension control	Up to 135 degree tilt with adjustable resistance knob
Retractable pull-out footrest	Slides out from under seat to support legs during recline
Smooth rolling mobility	Dual-wheel casters suitable for hard tile and low-pile carpet
Fixed contoured armrests	Curved arm support positioned at seated elbow height
Integrated contoured headrest	High-mounted padded support for neck and head in recline
Lumbar support	Contoured backrest shape provides built-in mid-back support
Recline maximum angle	135 degrees
Dual-surface rolling mobility	50 mm PU casters roll smoothly on hard tile and low-pile carpet without scratching
Built-in lumbar support	Contoured backrest shape provides targeted mid-back pressure relief
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private offices	Formal high-back design suitable for manager and director workstations
Open-plan office workstations	Suitable for employees requiring full back support during long shifts
Meeting and conference rooms	Swivel and recline function supports long meeting sessions
Home office spaces	Padded comfort and footrest suitable for extended work from home use
Reception and visitor areas	Polished appearance provides professional welcome for guest seating
Teleworking hybrid workspaces	Recline and footrest support short rest breaks between work tasks
Conference and meeting rooms	Swivel and recline function supports long meeting and presentation sessions
Hybrid telework spaces	Compact footprint fits small home office layouts, supports both work and short rest

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2000	Office work chairs safety dimensional requirements
EN 1335-2:2009	Office chair strength, durability and safety requirements
EN 1021-1:2014	Upholstered furniture cigarette ignition resistance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Standard for general-purpose office chairs

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture for office use
GB 28007-2011	Fire safety requirements for upholstered office furniture
GB/T 10357.3-2013	Mechanical test methods for furniture strength and durability
GB/T 3326-2016	Furniture dimensional coordination for tables and chairs

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture for office use;
2. GB 28007-2011: Fire safety requirements for upholstered office furniture;
3. GB/T 10357.3-2013: Mechanical test methods for furniture strength and durability;
4. GB/T 3326-2016: Furniture dimensional coordination for tables and chairs;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OF-CH-HB-FR-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OF-CH-HB-FR-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OF-CH-HB-FR-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

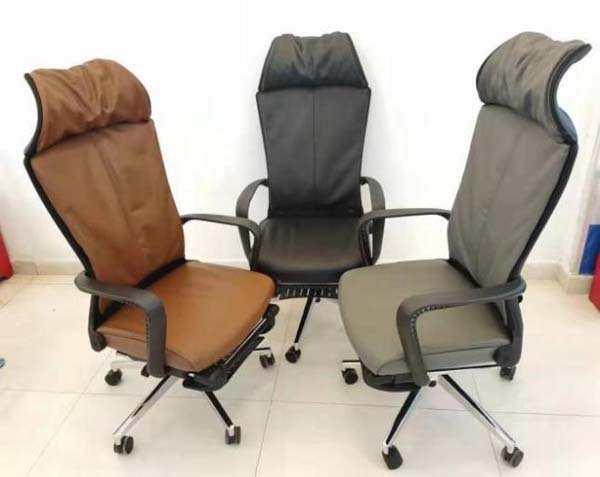

The High-back Swivel Executive Office Chair with Retractable Footrest (model OF-CH-HB-FR-001) presents a polished, professional silhouette anchored by a chrome-plated polished steel five-star base, paired with smooth stitched PU leather upholstery that lends a refined, formal aesthetic. Its tall integrated contoured headrest sits atop the high backrest, aligned with fixed curved contoured armrests positioned at seated elbow height, creating a structured, ergonomic layout that balances visual presence with user-centric positioning. Built for sustained regular use, the chair uses robust core materials across its structure: a welded steel tube internal seat support frame, stamped steel plate tilt mechanism chassis, and Class 3 steel gas lift for height adjustments connect to the chrome five-star base, which supports dual-wheel polyurethane casters fitted with metal stems. All contact surfaces, including the seat, backrest, armrest tops, and retractable footrest, are padded with high-density molded polyurethane foam, wrapped in smooth stitched PU leather for a consistent, easy-to-maintain finish. Core functional features support flexible seated positions across work and rest: the chair delivers full 360-degree swivel for multi-directional access, paired with pneumatic seat height adjustment controlled via a right-side lever. The backrest reclines with adjustable tension control, while a pull-out retractable footrest slides from under the seat to support legs during reclined positions. The dual-wheel casters roll smoothly across hard tile and low-pile carpet surfaces, and the integrated headrest provides neck and head support when reclined. The chair is rated for up to 8 hours of daily use. This model fits a broad range of commercial and residential spaces, including executive private offices for manager and director workstations, open-plan office workstations for staff requiring full back support during long shifts, meeting and conference rooms for extended session use, reception and visitor areas to deliver a professional guest welcome, dedicated home offices, and hybrid teleworking spaces where short rest breaks between tasks are supported by the recline and footrest functions. For procurement planning, note that each unit ships in two cartons, with a reference assembly time of 40 minutes per set. Buyers should account for appropriate storage and receiving space aligned with packaged shipment dimensions, and confirm that the chair’s weight capacity aligns with intended user needs before placement. The unbranded design allows flexible integration across a range of interior design schemes without conflicting with existing branded space standards.

High-back Swivel Executive Office Chair with Retractable Footrest Specifications
