PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	700 × 700 × 1240 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	20 kg
Maximum static user weight capacity	136 kg
Suitable user height range	183 cm
Gas lift stroke length	100 mm
Recline angle range lock positions	4 positions
Base static load rating	1134 kg
Foam density (seat cushion)	45 kg/m³
Foam rebound rate	60%
Seam stitch pitch	3 stitches per 10 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable tensioned polyester mesh
Seat upholstery	Breathable mesh over high-density molded foam
Internal seat frame	1.5 mm thick reinforced steel plate
Backrest support frame	Nylon and glass fiber composite
Armrest pads	30 mm thick soft PU padding
Armrest support structure	Reinforced nylon with steel height adjustment posts
Five-star base	2.5 mm thick powder-coated steel
Footrest structure	Steel support frame with padded mesh surface
Gas lift cylinder	Class 3 steel gas lift, 50 mm outer diameter
Caster wheels	60 mm diameter PU tread with nylon hub
Control mechanism chassis	3 mm thick stamped steel
Headrest padding	40 mm thick foam with mesh upholstery

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic gas lift adjusts seat height 100 mm via right-side lever
Recline function	Backrest tilts up to 135° with multi-position tilt lock
3D armrest adjustment	Armrests adjust 80 mm height, 50 mm front/back, 30 mm in/out
Headrest adjustment	Headrest adjusts 60 mm height and 25° tilt angle
Lumbar support	Contoured adjustable lumbar pad moves 50 mm vertically
Retractable footrest	Steel-framed footrest pulls out 460 mm and flips up for leg support
Tilt tension control	Adjustable spring tension sets recline resistance for user weight
Smooth caster mobility	Dual-wheel PU casters roll silently on hard floors and carpet
Waterfall seat edge	Curved front seat edge reduces pressure on back of thighs
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Home office workstation	Supports 8+ hour daily computer work with ergonomic adjustments
Corporate open office	Commercial-grade construction for shared workstations and employee desks
Study room use	Adjustable support fits teen and adult users for homework and remote learning
Reclined rest break use	135° recline and extended footrest support short naps during work breaks
Conference meeting rooms	Swivel and mobility allow easy turn to face speakers or presentation screens
Gaming and media use	Ergonomic support reduces back strain during long recreational screen sessions
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture strength/stability	EN 1335:2009
Office chair dimensions	EN 1335:2000
Office chair stability	EN 1022:2018

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair general purpose	ANSI/BIFMA X2017
Caster durability	ANSI/BIFMA X5.1 Clause 17
Gas lift safety	ANSI/BIFMA X5.1 Clause 8
Caster rolling durability	100000 cycles

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair safety requirement	GB/T 39602
Formaldehyde emission limit	GB 18584
Fabric colorfastness	GB/T 3920

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair safety requirement: GB/T 39602;
2. Formaldehyde emission limit: GB 18584;
3. Fabric colorfastness: GB/T 3920;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-FR-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-FR-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-FR-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

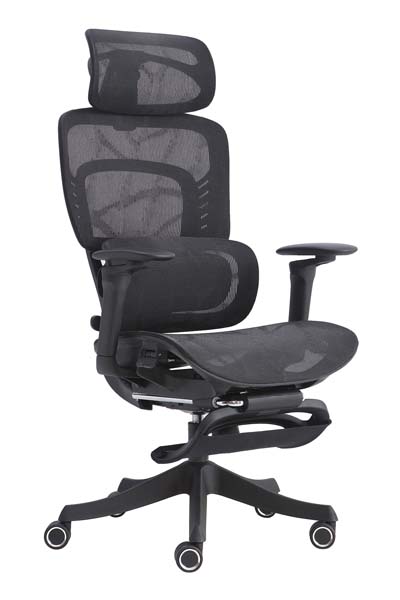

The Black High-Back Mesh Ergonomic Office Chair with Retractable Footrest, model ERG-MESH-FR-001, is an unbranded task seating solution designed to balance supportive comfort and functional flexibility across long periods of seated use. Its streamlined high-back silhouette presents a professional, understated black finish that integrates seamlessly with a range of interior design schemes, with a structured five-star wheeled base supporting smooth swivel movement for easy repositioning. The chair is built for durable, long-term use, with a core frame combining reinforced steel and nylon-glass fiber composite components. The backrest is upholstered in tensioned breathable polyester mesh to promote consistent air circulation, while the seat pairs breathable mesh surfacing with high-density molded foam cushioning. Soft PU-padded armrests sit atop reinforced nylon supports with steel height adjustment posts, and the 2.5mm thick powder-coated steel five-star base is fitted with smooth PU casters for floor-friendly mobility. A Class 3 steel gas lift supports reliable height adjustment, and the retractable footrest features a steel support frame with a padded mesh surface for comfortable leg support. Targeted ergonomic adjustments allow users to customize fit for individual preference: pneumatic seat height adjustment is controlled via a right-side lever, the backrest tilts to 135 degrees with four lockable recline positions, and adjustable tilt tension lets users tailor recline resistance to match their weight. The 3D armrests adjust vertically, front-to-back, and side-to-side, while the adjustable headrest shifts vertically and tilts for customized neck support. A contoured lumbar pad moves vertically to align with the user’s lower back, and the pull-out footrest extends and flips up to support reclined resting. This chair suits a broad range of residential and commercial spaces, including home office workstations, corporate open plan offices, private study rooms, conference meeting spaces, and home gaming or media setups. It supports eight or more hours of daily computer work, accommodates short workday naps when reclined, and offers smooth mobility to let users turn easily toward presentation screens or meeting speakers. Procurement teams should note that each unit ships across two cartons, with an 40 minutes of assembly time per set. The chair supports users up to its maximum static weight capacity, and fits users up to its maximum suitable height, making it a flexible option for shared work environments where multiple users will access the seating on a rotating basis.

Black High-Back Mesh Ergonomic Office Chair with Retractable Footrest Specifications
