PRODUCT MODULE 01 / 06

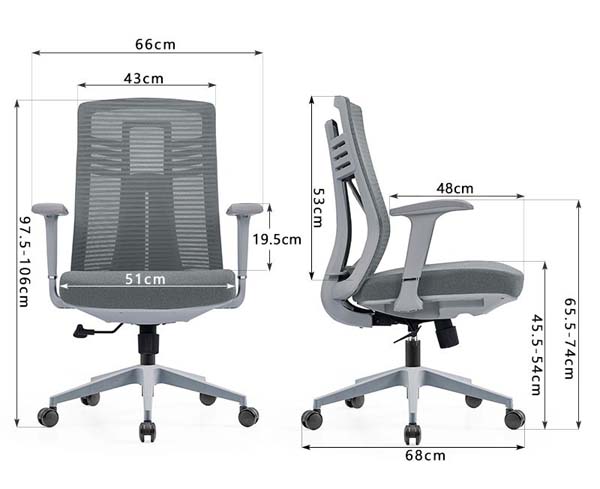

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 680 × 1060 mm
Seat cushion width	510 mm
Seat cushion depth	480 mm
Adjustable seat height from floor	540 mm
Backrest width	430 mm
Backrest height from seat surface	530 mm
Armrest height above seat	195 mm
Minimum overall chair height	975 mm
Five-star base span diameter	680 mm
Minimum armrest height from floor	655 mm
Maximum armrest height from floor	740 mm
Minimum seat height from floor	455 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net chair weight	14 kg
Maximum static user weight capacity	136 kg
Recommended daily usage duration	8 hours
Seat cushion foam density	45 kg/m³
Seat cushion foam rebound rate	45%
Backrest mesh abrasion resistance	50000 cycles
Gas lift stroke length	100 mm
Caster rolling durability	40000 cycles
Five-star base static load rating	1136 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support panel	Breathable woven polyester mesh over grey PP frame
Seat cushion core	70mm thick high-density polyurethane foam
Seat cushion surface	Wear-resistant grey fabric upholstery
Armrest construction	Fixed grey PP armrests with integrated top pads
Height adjustment cylinder	50mm diameter Class 2 steel gas lift
Tilt mechanism plate	2.0mm thick A3 steel swivel-tilt chassis
Chair base	Glass-fiber reinforced PP five-star caster base
Rolling casters	50mm diameter PU twin-wheel swivel casters
Internal seat support plate	12mm thick multi-layer pressed forming board
Seam stitch pitch	3 stitches per cm
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic gas lift adjusts 85mm between 455mm and 540mm seat height
360-degree swivel rotation	Full rotation enabled by central swivel mechanism between seat and base
Backrest tilt function	12-degree backward tilt with tension adjustment knob under seat
Upright tilt lock	Locks backrest in full upright position for focused task work
Smooth rolling mobility	Dual-wheel casters roll on hard floors and low-pile carpet
Integrated lumbar support	Curved central back rib aligns with natural lower back curve
Fixed arm support	Rigid armrests maintain 195mm height above seat for forearm rest
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions	720 x 680 x 420 mm
Gross shipping weight per carton	16 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office workstations	Standard task chair dimensions fit standard 1200mm office desk cubicles
Home office study spaces	Neutral grey finish blends with residential and home office decor
Meeting and conference rooms	Uniform design suitable for boardroom and meeting room seating
Educational computer labs	Durable construction supports frequent student use in campus labs
Reception and admin areas	Professional light grey appearance matches front desk and admin environments
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety requirement	EN 1335:2020
Office chair mechanical strength recommendation	EN 1335:2018
Office chair stability recommendation	EN 1335:2009

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

General purpose office chair standard	ANSI/BIFMA X5.1:2017
Caster durability test	ANSI/BIFMA X5.1 Clause 12
Base static load test	ANSI/BIFMA X5.1 Clause 17

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair stability recommendation	GB/T 10357.2:2013
Office chair strength and durability recommendation	GB/T 10357.3:2013
Formaldehyde emission limit recommendation	GB 18584:2001

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair stability recommendation: GB/T 10357.2:2013;
2. Office chair strength and durability recommendation: GB/T 10357.3:2013;
3. Formaldehyde emission limit recommendation: GB 18584:2001;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MTC-MB-GR-066

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MTC-MB-GR-066

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MTC-MB-GR-066Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Mid-Back Grey Mesh Ergonomic Office Task Chair with Fixed Armrests, model MTC-MB-GR-066, presents a streamlined, professional silhouette defined by its coordinated light grey palette and functional mid-back form. Its layout centers on a contoured backrest paired with a generously proportioned seat, rigid fixed armrests positioned for consistent forearm support, and a stable five-star base that anchors the swiveling seat structure, creating a balanced visual profile suited to both formal and casual work environments. Constructed for regular daily use, the chair features a breathable woven polyester mesh back set within a light grey PP and nylon frame, with an integrated curved lumbar rib that aligns with the natural lower back curve. The seat uses a thick high-density polyurethane foam core wrapped in wear-resistant grey fabric upholstery, supported by a multi-layer pressed forming board. Its height adjustment relies on a Class 2 steel gas lift connected to a steel swivel-tilt chassis, mounted to a glass-fiber reinforced PP five-star base fitted with PU twin-wheel swivel casters. Fixed PP armrests with integrated top pads are secured to the seat frame to maintain consistent support height. Core functional features include pneumatic seat height adjustment, 360-degree swivel rotation, and a 12-degree backrest tilt with an under-seat tension adjustment knob, plus an upright tilt lock to hold the back in a fixed position for focused work. The dual-wheel casters roll smoothly across hard flooring and low-pile carpet, while the breathable mesh back supports air circulation during extended seating, with construction validated for 8 hours of daily use. This chair fits a wide range of spaces, including open office workstations aligned with standard desk cubicles, home office study areas where its neutral grey finish complements residential decor, meeting and conference rooms, educational computer labs, and reception or admin areas. For procurement planning, note each unit is shipped across two cartons, with a per-set assembly time of 40 minutes, and a maximum static user weight capacity of 136 kg. The chair pairs with standard office desks and larger executive desk formats to support flexible workspace layout planning.

Mid-Back Grey Mesh Ergonomic Office Task Chair with Fixed Armrests Specifications
