Name: Mid-Back White Frame Grey Mesh Adjustable Office Task Chair
Brand: YUXIANG
SKU: ZU6J6X

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

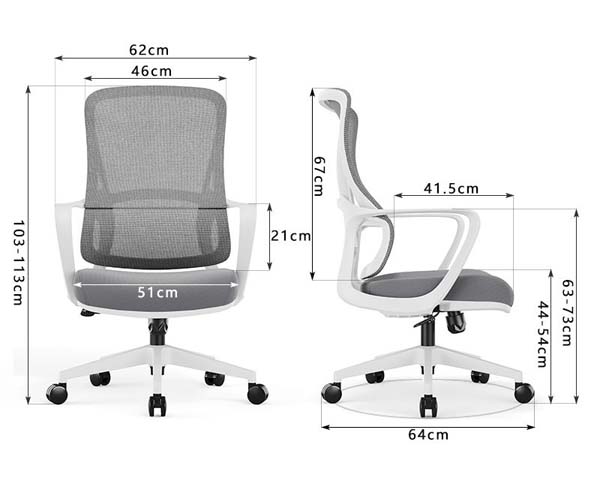

Overall dimensions (W × D × H)	620 × 730 × 1130 mm
Seat width	510 mm
Seat depth	415 mm
Backrest width	460 mm
Backrest height	670 mm
Seat height range (max)	540 mm
Five-star base diameter	640 mm
Armrest height above seat	210 mm
Caster diameter	60 mm
Minimum knee clearance under seat	180 mm
Minimum adjusted overall height	1030 mm
Seat cushion thickness	70 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	13.5 kg
Recommended static load capacity	120 kg
Recommended user height range (max)	180 cm
Tilt lock angle	125 degrees
Tilt mechanism cycle durability	300000 cycles
Five-star base static load rating	1000 kg
Caster rolling durability	100000 cycles
Seat foam density	45 kg/m³
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back frame and armrests	White fiberglass-reinforced PP (polypropylene)
Backrest upholstery	Grey breathable polyester mesh
Seat cushion support board	12 mm thick curved plywood
Seat cushion padding	High-density polyurethane foam, 70mm thick
Seat upholstery	Grey woven polyester fabric
Five-star base	White reinforced nylon (PP)
Gas lift cylinder	Black steel Class 3 pneumatic cylinder
Tilt mechanism plate	2.5 mm thick stamped steel
Casters	60mm diameter dual-wheel black PU (polyurethane)
Seat underside shell	White PP plastic cover
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel rotation	Full rotation around central gas lift axis
Pneumatic seat height adjustment	100mm vertical travel via side actuating lever
Reclining backrest with tension control	Lockable tilt up to 125° with adjustable resistance knob
Fixed-height integrated loop armrests	Curved arm support 210mm above seat, non-adjustable
Smooth rolling mobility	Five dual-wheel casters for hard floor and low-pile carpet use
Contoured lumbar support	Ergonomic curved lower back section built into mesh back
Knock-down assembly	User assembly with included hardware, no specialized tools required
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	700 x 300 x 600 mm
Gross weight per carton	14.5 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Home office workspace	Compact footprint fits small home desks and apartment work areas
Open-plan office task seating	Durable construction suits 8-hour daily use for employee workstations
Small meeting and conference rooms	Neutral white/grey aesthetic coordinates with modern office interiors
Student desk and study spaces	Adjustable height fits growing users and standard student desk heights
Hot-desking shared workspaces	Swivel and rolling functionality supports quick repositioning for shared use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety requirements	EN 1335:2020
Office chair strength/durability	EN 1335:2018
Office chair upholstery flame retardancy	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

General purpose office chairs	ANSI/BIFMA X2017
Caster performance	ANSI/BIFMA X5.1 Clause 13
Gas lift cylinder safety	ANSI/BIFMA X5.1 Clause 8

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair structural safety	GB/T 3326
Formaldehyde emission limit	GB 18584
Office chair mechanical durability	GB/T 10357.3

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair structural safety: GB/T 3326;
2. Formaldehyde emission limit: GB 18584;
3. Office chair mechanical durability: GB/T 10357.3;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MBW-620W-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MBW-620W-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MBW-620W-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

YUXIANG’s OFC-MBW-620W-GRY mid-back mesh office task chair pairs a streamlined minimalist aesthetic with functional ergonomic support for versatile seating across professional and residential settings. Its visual profile is defined by a crisp white structural frame paired with neutral grey upholstery, creating a clean, understated look that blends seamlessly with contemporary interior palettes. The fixed integrated loop armrests curve gently to match the frame’s finish, while the mid-height mesh backrest and contoured seat create a balanced, compact silhouette suited to space-conscious layouts. The chair is constructed with durable, purpose-built materials selected for long-term regular use. The back frame and armrests are made from white fiberglass-reinforced polypropylene, paired with a breathable grey polyester mesh backrest that incorporates a built-in contoured lumbar section for targeted lower back support. The seat features a 12mm thick curved plywood support board, topped with 70mm thick high-density polyurethane foam and upholstered in hard-wearing grey woven polyester fabric. The five-star base is crafted from white reinforced polypropylene, fitted with 60mm diameter dual-wheel black polyurethane casters suitable for hard floors and low-pile carpet. Core functional components include a Class 3 black steel pneumatic gas lift cylinder, a 2.5mm thick stamped steel tilt mechanism plate, and durable hardware engineered to withstand repeated daily operation. Practical functionality is designed for flexible work patterns. The chair offers full 360-degree swivel rotation around its central axis, with pneumatic seat height adjustment delivering 100mm of vertical travel controlled via a side-mounted lever, reaching a maximum seat height of 540mm. The backrest reclines to a 125-degree lockable angle, with an adjustable tension knob to customize recline resistance for individual user preference. The fixed armrests sit 210mm above the seat to provide consistent arm support, while the smooth-rolling casters enable easy repositioning. The chair ships in knock-down form, with all required hardware included for assembly without specialized tools. This model is well suited for a range of spaces. Its compact footprint fits small home office desks and apartment work areas, while its durable construction supports 8-hour daily use at open-plan office employee workstations. The neutral white and grey finish coordinates easily with modern interiors in small meeting and conference rooms, and the adjustable height accommodates growing users in student study spaces. The swivel and rolling functionality also makes it a strong fit for hot-desking shared workspaces, where quick repositioning is a frequent need; it pairs effectively with executive desks up to 2.4m in width. For procurement planning, note the chair has a recommended static load capacity of 120kg and is designed for users up to 180cm tall. Each unit is shipped across two cartons, with a total packaged gross weight of 23kg per set, and assembly time of 40 minutes per chair. Bulk orders should account for these packaging and assembly requirements when coordinating delivery and workspace setup.
