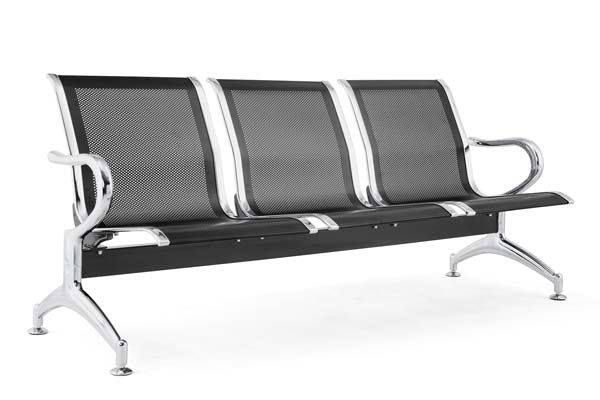

Name: 3-Seat Metal Mesh Public Waiting Bench
Brand: WEINENG
SKU: 030W7Q

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1780 × 680 × 800 mm
Seat height from floor	430 mm
Single seat width	560 mm
Seat depth	480 mm
Backrest height above seat	400 mm
Armrest height above seat	220 mm
Under-seat clearance from floor	280 mm
Leg footprint width	1680 mm
Leg footprint depth	650 mm
Adjustable foot diameter	50 mm
Mesh panel perforation diameter	3 mm
Seat divider width	40 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	32 kg
Total static load capacity	450 kg
Static load per individual seat	150 kg
Recommended number of users	3 people
Frame yield strength	235 MPa
Surface corrosion resistance	72 hours
Mesh panel load deflection	10 mm
Adjustable foot vertical adjustment range	15 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Leg and frame construction	1.2mm thick cold-rolled chrome-plated steel
Seat panels	1.0mm thick perforated black steel sheet
Backrest panels	1.0mm thick perforated black steel sheet
Armrests	1.5mm thick bent chrome-plated steel tube
Seat dividers	1.2mm thick polished chrome-plated steel strip
Under-seat support beam	2.0mm thick rectangular steel tube
Adjustable floor feet	Chrome-plated steel stem with rubber contact pad
Fasteners	Stainless steel hex bolts and lock nuts
Edge trim	Black PVC edge banding
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed non-reclining seating structure	Fully welded bolted frame with no moving adjustment parts, designed for low-maintenance high-traffic public use
Individual seat separation	Integrated chrome dividers between all three seats to demarcate personal seating space and prevent cross-user contact
Dual side armrest support	Curved chrome armrests on both outer ends of the bench, providing upper body support and assistance for standing for end-seat users
Ventilated seating and back surfaces	Perforated mesh panels allow continuous air flow through seat and back, reducing heat build-up during extended waiting periods
Leveling adjustment	Threaded adjustable feet on each of the four leg contact points to compensate for uneven floor surfaces and eliminate rocking
Floor protection	Rubber-padded adjustable feet prevent scratching of hard flooring surfaces including tile, terrazzo, and polished concrete
Low-maintenance surface finish	Smooth chrome and powder coated surfaces can be wiped clean with standard disinfectants, suitable for high-turnover public areas
Floor anchoring compatibility	Pre-drilled holes in foot bases allow permanent bolting to the floor for anti-theft and anti-tip installation in unsupervised public spaces
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	1 unit per carton
Shipping carton dimensions	1820 x 720 x 480 mm
Gross shipping weight	36 kg
Shipping volume per unit	0.63 CBM
Assembly time per unit	15 minutes
20ft GP container loading quantity	42 units
40ft HQ container loading quantity	105 units
Packaging materials	5-layer corrugated carton with 20mm thick EPS foam corner protectors and PE plastic wrap
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital and clinic waiting areas	Durable, easy-to-clean metal construction with ventilated mesh is suitable for high-traffic medical environments where regular disinfection is required
Airport, rail, and bus terminal waiting zones	High static load capacity and low-maintenance finish withstand constant high-volume public use with minimal upkeep
Government and public service office lobbies	Neutral chrome and black finish fits formal public spaces, while fixed structure and floor anchor compatibility reduce risk of theft or vandalism
Bank and retail customer waiting areas	Compact 3-seat footprint fits standard lobby layouts, with dividers to provide clear personal space for waiting customers
School and university common areas	Sturdy metal construction resists heavy use by students, with no fabric upholstery to trap stains or debris in high-traffic campus spaces
Outdoor covered waiting shelters	Corrosion-resistant chrome and powder coated finishes tolerate limited moisture exposure when installed under covered outdoor areas like bus stops
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Applicable European standard for non-domestic seating, specifying strength, durability, and stability requirements for public area seating including waiting benches
EN 1022:2018	Applicable test standard for seating stability, specifying test methods to prevent forward, rearward, and sideways tipping during normal use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.4 Public and Lounge Seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable general technical requirements for metal furniture, specifying dimensional tolerance, finish quality, and structural stability requirements for acceptance testing
GB/T 10357.3-2013	Applicable mechanical test standard for seating furniture, specifying static load, fatigue, and impact test methods for seat and back strength
GB 18584-2001	Applicable standards and test results require confirmation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable general technical requirements for metal furniture, specifying dimensional tolerance, finish quality, and structural stability requirements for acceptance testing;
2. GB/T 10357.3-2013: Applicable mechanical test standard for seating furniture, specifying static load, fatigue, and impact test methods for seat and back strength;
3. GB 18584-2001: Applicable standards and test results require confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WB-MESH-3SEAT-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WB-MESH-3SEAT-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WB-MESH-3SEAT-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

The WEINENG WB-MESH-3SEAT-001 3-Seat Metal Mesh Public Waiting Bench is a purpose-built public seating solution designed for reliable performance in high-traffic environments. Its streamlined, linear layout features three clearly demarcated seating positions separated by polished chrome vertical dividers, paired with curved chrome armrests at both outer ends for balanced visual cohesion and functional support. The design pairs matte black perforated steel seat and back panels with reflective chrome framing and hardware, creating a neutral, professional aesthetic that complements a wide range of public space design schemes.
Constructed for heavy, long-term use, the bench features a cold-rolled steel frame with chrome plating, supported by a thick rectangular steel under-seat beam to mntn structural stability. Seat and back panels are formed from perforated black powder-coated steel, fitted with black PVC edge trim to eliminate sharp exposed edges. The unit incorporates padded support layers on seat and back sections, with high-density foam to mntn comfort for waiting users. Each leg ends in an adjustable foot with a non-marking rubber contact pad, and stainless steel fasteners secure all components to resist corrosion in regular indoor use.
Functional design elements support both user comfort and operational efficiency. The fixed, non-reclining welded and bolted frame has no moving adjustment parts, reducing maintenance requirements for facility teams. Perforated mesh panels enable continuous r flow through seat and back surfaces to reduce heat build-up during waiting periods, while the smooth, non-porous chrome and powder-coated finishes can be easily wiped down with standard disinfectants. Adjustable feet compensate for uneven floor surfaces to eliminate rocking, while pre-drilled holes in foot plates support permanent floor anchoring to prevent tipping or theft in unsupervised areas. The integrated dividers define clear personal space between adjacent users, and armrests provide stable support to assist users when standing. The seat height is calibrated for accessible public use, and open under-seat clearance allows unobstructed access for routine floor cleaning.
This bench is well suited for a diverse range of commercial and public spaces, including hospital and clinic waiting areas, rport, rl and bus terminal waiting zones, government and public service lobbies, bank and retl customer waiting areas, school and university common areas, and covered outdoor waiting shelters such as protected bus stops. For procurement planning, teams should confirm core material specifications including steel thickness and coating details directly with the supplier prior to final order placement. Freight and installation planning should account for the single-unit carton packaging with protective foam wrapping to prevent finish scratching during transit; assembly requires only attaching adjustable feet to leg frames with provided hardware. For installations requiring permanent security, facility teams should source appropriate anchoring hardware compatible with local floor types, and select disinfection products formulated for use on powder-coated and chrome-plated metal surfaces to preserve finish longevity over time.

3-Seat Metal Mesh Public Waiting Bench Specifications
