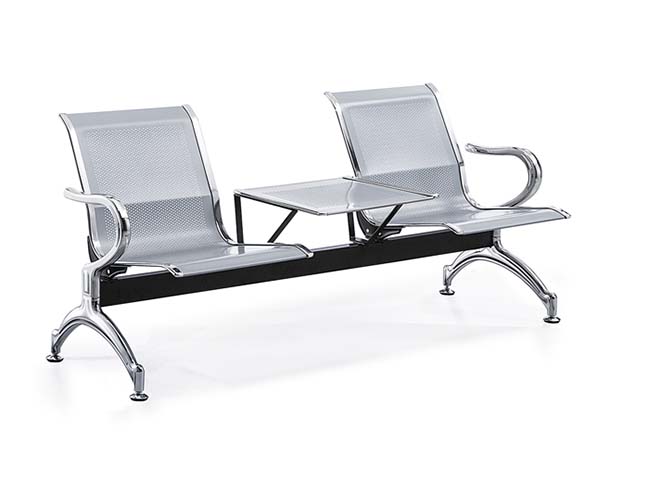

Product supplier2-Seat Chrome Perforated Metal Beam Waiting Chair with Integrated Middle Table, 2.0mm cold-rolled steel, CNC perforated, polished chrome plated
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1750 × 760 × 880 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| net product weight | 28 kg | |
|---|---|---|
| static load per seat | 150 kg | |
| total unit static load capacity | 320 kg | |
| surface abrasion resistance (chrome finish) | 50000 cycles | |
| anti-corrosion salt spray resistance | 48 hours | |
| recommended daily seating turnover | 200 uses per seat | |
| standard structural warranty | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| seat and backrest panels | 2.0mm cold-rolled steel, CNC perforated, polished chrome plated | |
|---|---|---|
| main support beam | 2.0mm thick Q195 square steel tube, black powder coated | |
| armrests | 2.0mm die-cast steel, polished chrome finish, curved rounded edges | |
| end support legs | 2.5mm die-cast chrome steel, arched tripod design | |
| integrated middle table top | 1.5mm solid steel plate, chrome plated finish | |
| table support brackets | 1.5mm black powder-coated steel angle brackets | |
| leveler feet | Chrome-plated steel stem with non-slip rubber pad | |
| connection hardware | Grade 8.8 zinc-plated steel bolts, welded reinforced joints | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| seating configuration | Fixed beam-mounted 2-person seating with central shared table | |
|---|---|---|
| ventilation performance | Perforated seat/back panels allow continuous air flow for extended sitting | |
| floor leveling | Four adjustable leveling feet compensate for uneven floor surfaces | |
| table utility | Central integrated table supports laptops, beverages, documents or personal items for adjacent users | |
| armrest separation | Three curved armrests define individual seating positions and assist standing support | |
| floor protection | Rubber foot pads prevent scuffing and reduce noise during use | |
| optional cushion compatibility | Pre-drilled mounting points accept optional PU/faux leather seat pads for added comfort | |
| configuration expandability | Beam design supports adding extra seat or table units for longer row configurations | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| airport departure waiting areas | Durable, easy-to-clean perforated metal construction handles high daily passenger volume | |
|---|---|---|
| hospital and clinic waiting rooms | Fixed stable structure and smooth surfaces support regular sanitization for healthcare settings | |
| railway and bus station concourses | High load capacity and wear-resistant finish suit heavy transit public use | |
| bank and government service halls | Neutral chrome finish and integrated table support customer document placement while waiting | |
| office reception areas | Sleek professional appearance coordinates with modern commercial reception spaces | |
| indoor public service lobbies | Adjustable feet maintain stability on tiled or hard public flooring surfaces | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating, applicable to public waiting areas | |
|---|---|---|
| EN 1022:2018 | Furniture - Seating determination of stability, applicable to leveled floor stability checks |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to structural stability and finish quality | |
|---|---|---|
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture, applicable to chrome-plated metal surfaces | |
| GB/T 10357.3-2013 | Furniture mechanical test for seating strength and durability, applicable to static load verification | |
| GB 18584-2001 | Indoor decoration material limits of harmful substances for wooden furniture, applicable if padded options are fitted |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to structural stability and finish quality; 2. GB/T 4893.8-2013: Surface abrasion resistance test for furniture, applicable to chrome-plated metal surfaces; 3. GB/T 10357.3-2013: Furniture mechanical test for seating strength and durability, applicable to static load verification; 4. GB 18584-2001: Indoor decoration material limits of harmful substances for wooden furniture, applicable if padded options are fitted; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
