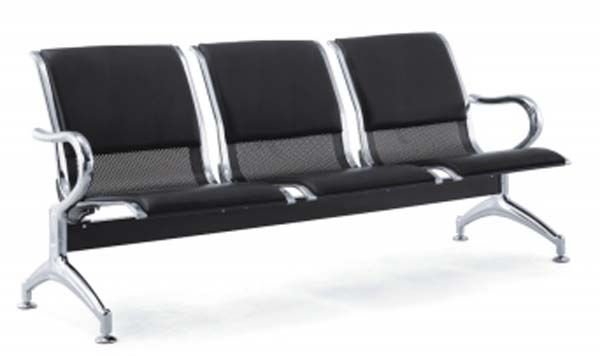

Product supplierThree-Seat Chrome Frame Public Waiting Bench with Padded Black Upholstery, 1.8mm thick polished chrome-plated cold-rolled steel
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 680 × 800 mm | |
|---|---|---|
| Single seat width | 580 mm | |
| Seat height from floor | 430 mm | |
| Seat depth | 480 mm | |
| Backrest total height | 400 mm | |
| Seat cushion thickness | 50 mm | |
| Center divider width | 40 mm | |
| Armrest height from seat | 180 mm | |
| Foot span total width | 1700 mm | |
| Floor clearance under seat | 320 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 32 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Recommended maximum user weight per position | 120 kg | |
| Seat upholstery abrasion resistance | 50000 cycles | |
| Frame static side load resistance | 800 N | |
| Recommended daily user turnover | 200 users per day | |
| Chrome coating corrosion resistance | 48 hours | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main support frame | 1.8mm thick polished chrome-plated cold-rolled steel | |
|---|---|---|
| Seat cushions | High-resilience polyurethane foam (35kg/m³ density) wrapped in black PU/fabric upholstery | |
| Upper backrest panels | Black upholstered padding over steel back support | |
| Lower backrest panels | Black ventilated woven mesh | |
| Inter-seat dividers | Polished chrome-plated steel strips | |
| Armrests | Bent polished chrome-plated steel tube, 25mm diameter | |
| Leg assemblies | Polished chrome-plated cast/spun steel outrigger legs with adjustable leveling glides | |
| Seat support rail | 2.0mm thick rectangular steel tube running full length of the bench | |
| Upholstery seam construction | Bonded nylon thread with 8mm seam pitch, reinforced stress points at seat edges | |
| Back support inner frame | 1.2mm thick stamped steel back panel brackets welded to main seat rail | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Three fixed individual seating positions separated by raised chrome dividers | |
|---|---|---|
| Floor mounting compatibility | Pre-drilled foot pads with leveling glides suitable for permanent floor anchoring | |
| Ventilation design | Mesh lower back panel allows air circulation to reduce heat buildup during extended waiting | |
| Armrest function | Continuous curved armrests at both ends provide arm support and act as structural end stops | |
| Cleaning access | Open under-seat clearance allows floor cleaning equipment access under the entire bench | |
| Seat surface design | Slightly curved padded seat surface distributes user weight evenly | |
| Leveling adjustment | M10 threaded nylon glides allow 15mm vertical adjustment per foot to compensate for uneven tile or carpeted floors | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 1850 x 720 x 280 mm | |
| Gross shipping weight | 36 kg | |
| Shipping volume per unit | 0.373 CBM | |
| Assembly time per unit | 30 minutes | |
| 20ft GP container loading quantity | 72 units | |
| 40ft HQ container loading quantity | 175 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Healthcare waiting areas | Suitable for hospital clinics, dental offices and veterinary waiting rooms, durable easy-clean surfaces withstand frequent daily use | |
|---|---|---|
| Transit hub waiting zones | Appropriate for bus stations, train terminals and airport gate waiting areas, fixed stable structure meets high-turnover public use requirements | |
| Office reception areas | Ideal for corporate lobby and employee service waiting zones, professional neutral black and chrome finish matches commercial interiors | |
| Government service centers | Suited for tax office, license bureau and public service counters, demarcated seats maintain orderly queuing and seating separation | |
| Educational institution common areas | Usable in school administration offices, student service centers and library waiting zones, resistant to heavy daily student traffic | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Applicable European standard for non-domestic seating, specifying strength, durability and stability requirements for public area waiting chairs | |
|---|---|---|
| EN 1022:2018 | Applicable standard for seating stability, verifying resistance to tipping during normal use in public environments | |
| EN 13722:2004 | Applicable test method for surface finish durability on metal furniture, evaluating abrasion and corrosion resistance of chrome-plated components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable standard for general technical requirements of metal furniture, covering dimensional tolerance, material strength and coating adhesion for domestic Chinese projects | |
|---|---|---|
| GB 18584-2001 | Applicable indoor decoration material standard, setting limits for formaldehyde and heavy metal emissions from furniture used in interior public spaces | |
| GB/T 10357.3-2013 | Applicable test standard for strength and durability of chair and bench seating, for verifying static and fatigue load performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable standard for general technical requirements of metal furniture, covering dimensional tolerance, material strength and coating adhesion for domestic Chinese projects; 2. GB 18584-2001: Applicable indoor decoration material standard, setting limits for formaldehyde and heavy metal emissions from furniture used in interior public spaces; 3. GB/T 10357.3-2013: Applicable test standard for strength and durability of chair and bench seating, for verifying static and fatigue load performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
