PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 780 × 890 mm
Individual seat width per position	580 mm
Seat height from floor to seat top	420 mm
Backrest height from seat top	470 mm
Seat depth front to back	450 mm
Armrest height from seat top	220 mm
Support beam cross-section	40 x 20 mm
Flared Y-leg spread width per end	620 mm
Floor glide diameter	50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat static load capacity	200 kg
Unit net weight (3-seat module)	38 kg
Seat surface durability cycles	500000
Daily use capacity rating	300 uses per seat
Static tip resistance load per end leg	120 kg
Surface chemical resistance	Compatible with hospital-grade disinfectant wipes
Recommended maximum continuous occupancy	3 adults
Warranty period for structural frame	8 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back panels	30mm thick rigid teal molded self-skin polyurethane, internal 1.2mm steel support frame
Integrated end armrests	ADC12 die-cast aluminum alloy, polished satin finish, rounded smooth edges
Flared Y-shaped end legs	ADC12 die-cast aluminum alloy, 8mm wall thickness at mounting points, polished finish
Horizontal support beam	2.5mm wall thickness rectangular steel tube, black electrostatic powder-coated anti-rust finish
Seat mounting brackets	2mm thick powder-coated steel, secured with corrosion-resistant zinc-plated fasteners
Adjustable floor glides	304 stainless steel base with non-marking rubber contact pad, 15mm height adjustment range
Seam and edge treatment	Rounded 5mm radius edges on polymer panels, no exposed sharp edges on metal components
Available color options	9 standard colors including teal, dark blue, black, gray, red, orange
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Fixed linear 3-seat module, no intermediate armrests between adjacent seats
Floor leveling adjustment	Individual adjustable glides on each leg foot, compensates for 15mm of uneven floor height
Seat modularity	Individual seat/back panels attach to central beam, replaceable without full unit disassembly
Surface maintenance	Non-porous seamless polymer surfaces, wipe-clean compatible with standard disinfectants
Floor fixation compatibility	Pre-drilled glide bases support optional expansion screw permanent floor anchoring
Recline and adjustment features	No moving parts, fixed ergonomic seat/back angle at 105 degrees for upright waiting posture
Corrosion protection	Powder-coated steel beam and polished aluminum legs resist rust and wear from regular cleaning
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital and clinic waiting areas	Disinfectant-resistant surfaces and robust structure suit high-turnover medical waiting spaces
Airport, railway and bus station terminals	High durability and fixed design withstand continuous daily public transit use
Bank and government service hall queuing	Stable fixed seating provides orderly, low-maintenance waiting for public service areas
School and corporate reception lobbies	Neutral teal finish and clean lines complement formal public reception environments
Indoor public corridor rest points	Narrow profile and wall-aligned linear form fit limited circulation rest spaces
Vaccination and testing site temporary seating	Easy-clean rigid surfaces support rapid sanitation between public users
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Furniture - Strength, durability and safety for non-domestic seating, applicable to public waiting areas
EN 13722:2004	Furniture - Test methods for seating, applicable to static load and durability verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	General purpose office chairs, applicable to static load and stability test benchmarks for public seating
ANSI/BIFMA e3-2019	Furniture sustainability standard, applicable to material recyclability and low-emission verification

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for metal furniture, applicable to structural strength and finish quality
GB/T 35607-2017	Green product assessment for furniture, applicable to restricted substance limits for public use
GB 28007-2011	Safety requirements for children's furniture, applicable for edge and tip safety in public all-age spaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to structural strength and finish quality;
2. GB/T 35607-2017: Green product assessment for furniture, applicable to restricted substance limits for public use;
3. GB 28007-2011: Safety requirements for children's furniture, applicable for edge and tip safety in public all-age spaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BMS-PU3-ALU-YLEG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BMS-PU3-ALU-YLEG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BMS-PU3-ALU-YLEGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

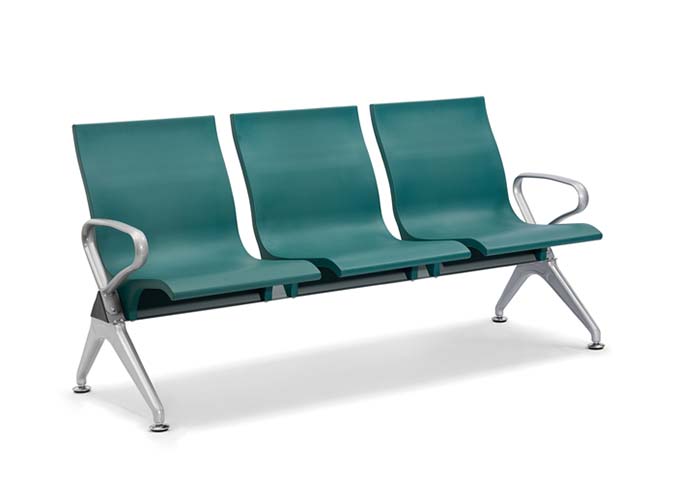

The 3-Seat Teal Polymer Beam Waiting Chair with Polished Aluminum Frame is a purpose-built public seating solution designed for reliable high-traffic use, built to model BMS-PU3-ALU-YLEG as an unbranded beam seating product. Visually, it presents a clean linear form with smooth teal seat and back panels paired with polished aluminum components, anchored by flared Y-shaped end legs that create a stable, open profile without intermediate armrests between the three seating positions. Exact dimensions include an 1800 mm overall width, 780 mm depth, and 890 mm total height, with each 580 mm wide seat set at a 420 mm floor-to-seat height, paired with a 470 mm tall backrest angled at a fixed 105 degrees to support upright, comfortable waiting posture. All edges are finished to a 5mm radius on polymer panels, with no exposed sharp edges on metal parts for user safety. Construction combines durable, purpose-selected materials: 30mm thick rigid teal molded self-skin polyurethane seat and back panels sit over an internal 1.2mm steel frame and 14mm bent plywood support board, secured to a 2.5mm wall thickness black electrostatic powder-coated rectangular steel support beam using 2mm thick powder-coated steel brackets and corrosion-resistant zinc-plated fasteners. End armrests and flared Y-legs are cast from ADC12 aluminum alloy with a polished satin finish, with legs featuring 8mm wall thickness at mounting points for structural rigidity. Each leg is fitted with 304 stainless steel adjustable floor glides with non-marking rubber pads, offering 15mm of height adjustment to compensate for uneven floors, with pre-drilled bases to support optional permanent floor anchoring with expansion screws. The unit weighs 38 kg net, supports a 200 kg per-seat static load, 120 kg static tip resistance per end leg, 500000 seat surface durability cycles, and 300 daily uses per seat, with non-porous seamless surfaces compatible with hospital-grade disinfectant wipes for easy sanitation, and rust-resistant finishes that hold up to frequent cleaning. Individual seat and back panels are replaceable without full unit disassembly, reducing long-term upkeep effort, with nine standard color options available including teal, dark blue, black, gray, red, and orange. This fixed 3-seat module is suited for a wide range of public spaces: hospital and clinic waiting areas, airport, railway and bus station terminals, bank and government service halls, school and corporate reception lobbies, indoor public corridor rest points, and temporary vaccination or testing sites, as its narrow linear profile fits neatly against walls in limited-circulation spaces while its robust construction supports high-turnover use. For procurement, note that each unit ships in two cartons with 0.26 m³ total volume and 23 kg packaged gross weight, requires 40 minutes of assembly per set, and 135 sets fit a 20GP container at 85% space utilization, with a recommended maximum continuous occupancy of three adults. There are no moving parts to reduce maintenance requirements, and polished aluminum components maintain a tidy, professional appearance across extended public use.

3-Seat Teal Polymer Beam Waiting Chair with Polished Aluminum Frame Specifications
