PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1780 × 680 × 820 mm
Seat height from floor	450 mm
Single seat width	540 mm
Single seat depth	460 mm
Backrest height	410 mm
Seat pad thickness	50 mm
Back pad thickness	40 mm
Armrest height from seat	200 mm
Ground clearance under seat	280 mm
Leg spread width (end to end)	1650 mm
Armrest tube diameter	32 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	32 kg
Per-seat static load capacity	200 kg
Recommended maximum user weight per seat	136 kg
Seat cushion compression deflection	40 kPa
Back cushion compression deflection	35 kPa
Frame static overload test load	1200 kg
Recommended service life	8 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main support frame	1.5mm thick cold-rolled steel, chrome plated finish
Seat support cross beams	2.0mm thick round steel tube, chrome plated finish
Armrests	Bent 32mm diameter steel tube, polished chrome finish
Outrigger legs	1.8mm thick cast steel, chrome plated finish
Floor glides	Nylon with non-slip rubber base, bolt-adjustable
Seat pad core	High-density polyurethane foam, 50mm thickness
Back pad core	High-density polyurethane foam, 40mm thickness
Pad upholstery	0.8mm thick polyvinyl chloride (PVC) leather, green color, stain-resistant finish
Frame fasteners	Stainless steel M8 bolts and lock nuts
Divider frames between seats	2.0mm thick pressed steel, chrome plated finish
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating capacity	3 individual seated users
Floor leveling	Adjustable nylon glides on 4 leg ends, 10mm adjustment range
Cleaning access	280mm open under-seat clearance, wipeable upholstery and smooth metal frame
Arm support	Fixed curved armrests at both outer ends of the bench
Seat separation	Fixed vertical metal dividers between each seat
Anti-tip design	Splayed outrigger leg configuration with 620mm front-to-rear leg spread
Surface maintenance	Stain-resistant wipeable upholstery, no fabric crevices
Installation	Fully knockdown assembly with bolted connections
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping cartons	1 carton
Shipping carton dimensions	1820 x 720 x 180 mm
Gross shipping weight	36 kg
Shipping volume per unit	0.236 CBM
On-site assembly time	30 minutes
20ft container loading quantity	110 units
40ft HQ container loading quantity	270 units
Packaging materials	5-layer corrugated carton, EPE foam padding between metal parts, plastic hardware bag
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital outpatient waiting areas	Wipeable green pads and durable metal frame support daily sanitization and constant high-traffic use in clinical environments
Clinic and medical facility reception zones	Fixed divided seats maintain orderly queuing, compact footprint fits narrow corridor and reception spaces
Bus and rail station waiting halls	High load capacity and anti-tip design meet heavy public use requirements in transit terminals
Government service hall waiting areas	Neutral durable finish and standardized dimensions fit public service facility space planning guidelines
Bank and office reception areas	Clean aesthetic and padded seating provide comfortable short-term waiting for visitors without excessive maintenance
School administration and health office waiting zones	Stain-resistant surfaces and robust construction withstand daily student and visitor use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Public seating safety requirements	EN 16139:2013
Furniture surface resistance to cold liquids	EN 12720:2013
Metal furniture chrome plating quality	EN 12540:2000

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Multi-seat public seating performance	ANSI/BIFMA X2020

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Public furniture seating structural safety	GB/T 3324
Furniture surface coating adhesion	GB/T 4893.4
Upholstered furniture flame retardancy for public spaces	GB 20286
Furniture hardware fastener performance	GB/T 17645

Standardized tender description text

This product must meet the following technical requirements:
1. Public furniture seating structural safety: GB/T 3324;
2. Furniture surface coating adhesion: GB/T 4893.4;
3. Upholstered furniture flame retardancy for public spaces: GB 20286;
4. Furniture hardware fastener performance: GB/T 17645;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WT-3S-CHROME-PAD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WT-3S-CHROME-PAD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WT-3S-CHROME-PADOpen Export Tool

Quick Actions

Post an RFQ

Product Description

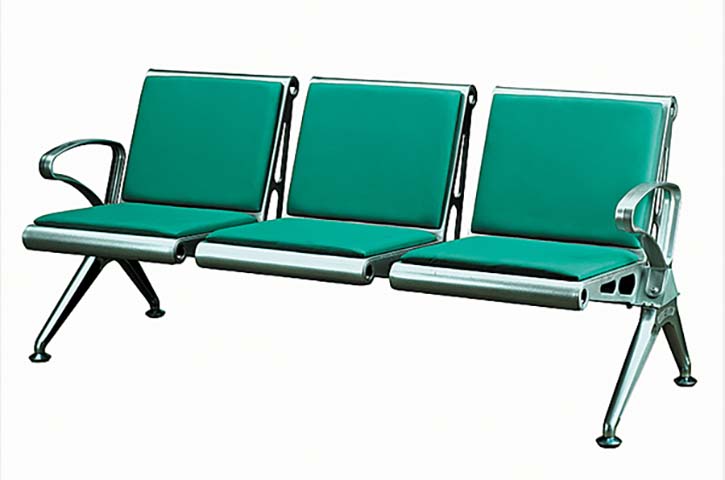

The KERTE WT-3S-CHROME-PAD 3-seat public waiting bench is a purpose-built tandem seating solution that balances streamlined visual appeal, heavy-duty construction, and user-centric functionality for high-traffic environments. Featuring a polished chrome-plated steel frame with a clean linear silhouette, the bench incorporates fixed vertical metal dividers to define three evenly spaced individual seating positions, paired with smoothly curved end armrests and splayed outrigger legs for a stable, uncluttered profile suited to professional public settings. The seat and back sections are fitted with rich green, stn-resistant PVC upholstery over high-density polyurethane foam cores, delivering medium-firm support for extended waiting periods, while internal bent plywood or composite reinforcement boards add structural rigidity beneath padding. The chrome-plated cold-rolled steel frame, supported by thicker steel cross beams, cast steel outrigger legs, and stainless steel locking fasteners, creates a robust foundation rated for heavy public use, with nylon floor glides featuring non-slip rubber bases that allow adjustable leveling to compensate for uneven flooring. Key practical features include generous open under-seat clearance to enable quick, unobstructed cleaning, wipeable upholstery that supports routine sanitization with standard cleaning agents, fixed end armrests to assist users when entering or exiting seats, and an anti-tip leg configuration for safe dly use. The bench ships in knock-down form for reduced transport costs, with bolted connections that support straightforward on-site assembly. This model is well suited for a wide range of commercial and public-facing spaces, including hospital outpatient waiting areas, clinic reception zones, bus and rl station waiting halls, government service centers, bank and corporate office reception areas, and school administration or health office waiting zones, where durable, low-maintenance, orderly seating is required. For procurement, stakeholders should note that the unit supports bulk shipping in standard freight contners, with protective export packaging to prevent finish damage during transit. Buyers should confirm exact material specifications, including foam density, upholstery composition, and frame material grades, directly with the supplier prior to final order placement to align with project-specific durability and maintenance requirements.

3-Seat Public Waiting Bench with Upholstered Pads Specifications
