Automatic mm / inch conversion · Core engineering specifications

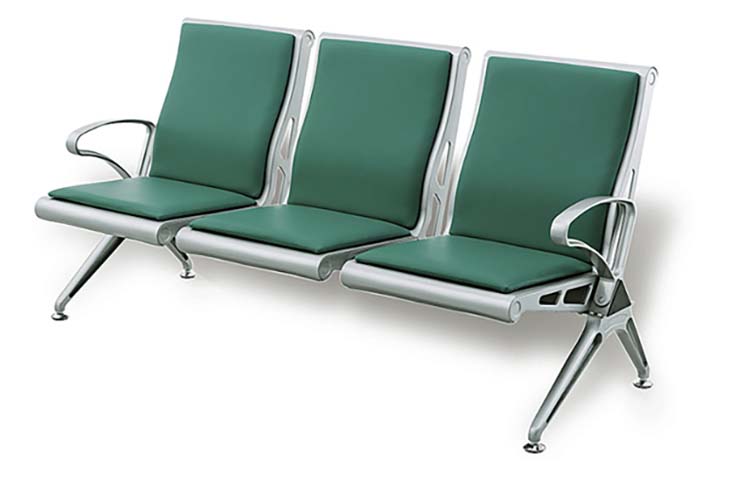

| Overall dimension | 1800 x 700 x 820 mm | |
|---|---|---|
| Single seat width | 540 mm | |
| Seat height from floor | 440 mm | |
| Seat depth | 450 mm | |
| Backrest height above seat | 420 mm | |
| Seat cushion thickness | 40 mm | |
| Backrest cushion thickness | 30 mm | |
| Armrest height above seat | 200 mm | |
| Leg spread width (end to end) | 1650 mm | |
| Foot pad diameter | 50 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Product net weight | 28 kg | |
|---|---|---|
| Static load per seat | 150 kg | |
| Total static load for full bench | 450 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Surface abrasion resistance (upholstery) | 50000 cycles | |
| Frame static load safety factor | 2.5 | |
| Service life (normal public use) | 5 years | |
| Static load per individual seat | 160 kg | |
| Total distributed static load for full bench | 480 kg | |
| Recommended maximum occupant weight per seat | 130 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main load-bearing frame | 1.5mm thick cold-rolled steel, chrome plated finish, welded triangular gusset joints at leg connections | |
|---|---|---|
| Seat support beam | 2.0mm thick rectangular steel tube, chrome plated, welded to seat and leg frames | |
| Backrest support divider | 1.2mm thick pressed steel panel, chrome plated, with cutout detail between adjacent seats | |
| Seat cushion core | 35kg/m³ density high-resilience polyurethane foam | |
| Backrest cushion core | 30kg/m³ density polyurethane foam | |
| Cushion upholstery | 0.8mm thick matte dark green polyurethane (PU) leather, stitched with 8mm seam pitch | |
| Armrests | 1.5mm thick bent chrome-plated steel tube, curved ergonomic profile | |
| Floor glides | Chrome-plated steel base with rubber non-slip contact pad, adjustable for minor floor level variation | |
| Cushion fasteners | Stainless steel concealed screws, fixed through cushion back into steel seat pan | |
| Main load-bearing crossbeam | 1.8mm thick cold-rolled rectangular steel tube, matte chrome plated finish, welded triangular gusset joints at leg connections | |
| Seat support pans | 1.5mm thick cold-rolled pressed steel, chrome plated, formed with raised edges to retain cushion pads | |
| Backrest support panels | 1.5mm thick cold-rolled pressed steel, chrome plated, with elongated vent cutouts between adjacent seats |
Adjustment / rotation / tilt / mobility / storage features
| Seat configuration | 3 individual fixed seats with separate padded seat and back cushions, no tilting or reclining mechanisms | |
|---|---|---|
| Armrest provision | 2 curved armrests mounted at the outer left and outer right positions of the bench, no intermediate armrests between adjacent seats | |
| Floor anchoring compatibility | 4 support legs with pre-drilled foot glide plates, suitable for permanent bolting to concrete or hard flooring | |
| Cleaning access | Smooth chrome frame surfaces and wipeable PU upholstery, no fabric crevices to trap dirt between frame and cushions | |
| Weight distribution | Triangular welded gusset brackets at each leg to beam joint, preventing frame deflection under uneven user loading | |
| Seat spacing | 10mm gap between adjacent seat cushions to prevent fabric rubbing and allow debris fall-through | |
| Floor protection | Rubber contact surface on each foot glide, preventing floor scratching on tile or terrazzo public area flooring | |
| Seating configuration | 3 fixed individual seats with separate padded seat and back cushions, welded rigid frame with no tilting, reclining or moving mechanisms | |
| Armrest arrangement | 2 curved open armrests mounted exclusively at the outer left and outer right positions of the bench, no intermediate armrests between adjacent seats to accommodate flexible group seating | |
| Cleaning performance | Smooth non-porous chrome frame surfaces and wipeable PU upholstery, no deep fabric crevices between frame and cushions to allow full disinfection in 60 seconds per seat | |
| Structural stability | Triangular welded gusset brackets at each leg to crossbeam joint, limiting frame deflection to 2mm under 160kg per seat uneven load | |
| Ventilation provision | Elongated cutouts in backrest support panels between seats, promoting air circulation to reduce heat buildup for seated users |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 | |
|---|---|---|
| Packed carton dimensions | 1850 x 750 x 380 mm | |
| Packed gross weight | 32 kg | |
| Packed volume per unit | 0.53 CBM | |
| Assembly time per unit | 30 minutes | |
| 20ft container loading quantity | 54 units | |
| 40ft HQ container loading quantity | 130 units | |
| Number of shipping cartons per unit | 1 | |
| Packed carton external dimensions | 1830 x 730 x 350 mm | |
| Packed gross weight per unit | 36 kg |
Recommended spaces / users / usage modes
| Hospital outpatient waiting areas | Suitable for high-traffic clinic zones, with wipeable PU upholstery that resists common disinfectant cleaning and durable steel frame for 24/7 public use | |
|---|---|---|
| Airport/railway station passenger waiting zones | Meets high durability requirements for continuous use by travelling passengers, with standard seat width to accommodate users with carry-on luggage | |
| Bank/government service hall waiting areas | Neutral dark green upholstery and chrome finish matches formal public service environments, easy to clean between user visits | |
| Office building reception waiting zones | Compact 3-seat footprint fits small reception lobbies, provides structured seating for visiting guests without taking excess floor space | |
| Clinic/health center triage areas | Non-porous upholstery supports regular sanitization, fixed frame prevents repositioning by users to maintain clear aisle space | |
| Airport/railway transit station waiting zones | Meets high durability requirements for continuous passenger use, with wide 550mm seat width to accommodate users with carry-on luggage and vented back panels for extended waiting comfort | |
| Community health center triage areas | Non-porous upholstery supports repeated sanitization between patients, fixed bolt-down compatible frame prevents unauthorized repositioning to maintain clear egress paths | |
| School administration office waiting areas | Durable scratch-resistant chrome frame resists damage from student backpacks, with rounded armrest edges to eliminate sharp contact injury risks |
EU Market Access Requirements* EN Standards
| EN 16139:2013 Furniture - Seating - Strength, durability and stability requirements for non-domestic seating | Applicable for evaluating structural performance for high-traffic public waiting area use | |
|---|---|---|
| EN 1022:2018 Domestic furniture - Seating - Determination of stability | Applicable for verifying tip-over resistance when users sit on edge positions of the bench |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for metal furniture | Applicable for evaluating frame welding quality, coating adhesion, dimensional tolerance and structural safety of this metal public seating unit | |
|---|---|---|
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable for verifying formaldehyde and heavy metal content limits for any panel components or adhesive used in cushion assembly | |
| GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools | Applicable for conducting static load, impact and fatigue testing of seats, backrests and armrests for commercial use certification |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for metal furniture: Applicable for evaluating frame welding quality, coating adhesion, dimensional tolerance and structural safety of this metal public seating unit; 2. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable for verifying formaldehyde and heavy metal content limits for any panel components or adhesive used in cushion assembly; 3. GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools: Applicable for conducting static load, impact and fatigue testing of seats, backrests and armrests for commercial use certification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
