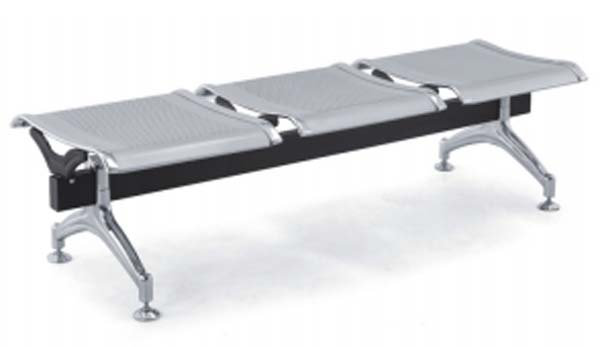

Product supplier3-Seat Metal Public Waiting Bench (Armless Flat Configuration), 1.5mm perforated cold-rolled steel, chrome-plated polished finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 650 × 420 mm | |
|---|---|---|
| Individual seat width | 580 mm | |
| Seat depth | 480 mm | |
| Seat surface height | 420 mm | |
| Leg splay width (per end frame) | 620 mm | |
| Center support beam cross-section | 80 x 40 mm | |
| Adjustable foot height adjustment range | 20 mm | |
| Seat panel thickness | 1.5 mm | |
| Leg wall thickness | 3 mm | |
| Divider height between seats | 30 mm | |
| Under-seat ground clearance | 300 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight per unit | 27 kg | |
|---|---|---|
| Static load capacity per seat | 200 kg | |
| Seat surface deflection under full load | 10 mm | |
| Recommended maximum daily occupancy cycles | 500 | |
| Surface corrosion resistance rating | 500 hours | |
| Seat surface deflection under rated load | 10 mm | |
| Daily occupancy cycle rating | 500 cycles | |
| Chrome finish corrosion resistance | 500 hours | |
| Coating adhesion rating | Grade 0 | |
| Tip resistance load | 60 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat panels | 1.5mm perforated cold-rolled steel, chrome-plated polished finish | |
|---|---|---|
| Main support beam | Rectangular steel tube, black epoxy powder coated finish | |
| End leg assemblies | Die-cast aluminum alloy, polished chrome plated finish | |
| Seat dividers | Pressed steel, chrome plated finish | |
| End armrest (left only) | Nylon reinforced plastic, black matte finish | |
| Leveling feet | Chrome plated steel with rubber contact pad | |
| Fasteners | Stainless steel hex head bolts | |
| Surface treatment | Triple-layer chrome plating on visible metal parts | |
| Left end armrest | Nylon-reinforced polypropylene plastic, matte black finish, curved ergonomic grip profile | |
| Assembly fasteners | M8 stainless steel hex head bolts and lock nuts | |
| End beam caps | ABS plastic, matte black finish, impact-resistant | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | 3 individual fixed-position seats in linear tandem layout | |
|---|---|---|
| Installation type | Free-standing with adjustable leveling feet, no permanent floor anchoring required | |
| Seat design | Curved front seat edge and textured perforated surface to reduce slipping and improve air circulation | |
| Floor leveling | Threaded adjustable feet on each leg to compensate for uneven floor surfaces, eliminate wobble | |
| Cleaning access | 300mm under-seat clearance allows full floor mopping and debris removal without moving the bench | |
| Structural bracing | Full-length rectangular steel beam connects both end frames to eliminate racking and distribute load evenly | |
| End armrest feature | Single integrated nylon armrest at left end provides support for first seat occupant, assists with standing | |
| Seating layout | 3 fixed individual seat positions in linear tandem arrangement, separated by integrated raised metal dividers to define personal space | |
| Installation | Free-standing placement with 4 adjustable leveling feet, no permanent floor anchoring required for standard indoor installation | |
| Seat ergonomics | Curved 15mm radius front seat edge and perforated textured surface reduce leg pressure, prevent occupant slippage, and enable passive air circulation | |
| Floor compensation | Threaded 20mm stroke adjustable feet at each leg eliminate wobble on uneven tile, concrete, or carpeted flooring | |
| Structural rigidity | Full-length rectangular steel support beam connects both end leg frames to eliminate lateral racking and evenly distribute occupant load across the full structure |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packaged carton dimensions | 1850 x 700 x 200 mm | |
|---|---|---|
| Packaged gross weight | 31 kg | |
| Packaged volume (CBM) | 0.26 CBM | |
| Assembly time per unit | 20 minutes | |
| 20ft GP container loading capacity | 104 units | |
| 40ft HQ container loading capacity | 262 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Transportation hubs | Suitable for airport, train station, and bus terminal waiting areas | |
|---|---|---|
| Healthcare facilities | Appropriate for hospital outpatient clinics, emergency room waiting zones, and medical office lobbies | |
| Public service offices | Ideal for government service centers, bank lobbies, and DMV waiting areas | |
| Commercial public spaces | Usable for shopping mall rest zones, exhibition halls, and convention centers | |
| Educational facilities | Suitable for school administration lobbies, student service centers, and campus common areas | |
| Installation note | Recommended for indoor use only; chrome plated surfaces are not rated for permanent outdoor exposure without additional weather sealing | |
| Indoor use limitation | Recommended for fully indoor installation only; standard chrome plated surfaces are not rated for permanent outdoor exposure without additional weatherproof sealing | |
| Recommended Matching Desk Size | 2.4 m executive desk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Public seating stability recommendation | EN 16139:2013 Furniture — Seating for non-domestic use — Strength, durability and safety | |
|---|---|---|
| Surface durability recommendation | EN 12720:2009 Furniture — Assessment of surface resistance to cold liquids | |
| Public seating strength recommendation | EN 16139:2013 Furniture - Seating for non-domestic use - Strength, durability and safety | |
| Surface resistance recommendation | EN 12720:2009 Furniture - Assessment of surface resistance to cold liquids | |
| Slip resistance recommendation | EN 13036:2011 Road and airfield surface characteristics - Test methods - Part 4: Pendulum test |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Public seating load recommendation | ANSI/BIFMA X2017General Purpose Office Chairs — Seating static and dynamic load tests | |
|---|---|---|
| Stability recommendation | ANSI/BIFMA X2017Stability testing for free-standing seating |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Public seating structural safety recommendation | GB/T 3324General technical requirements for metal furniture | |
|---|---|---|
| Coating adhesion recommendation | GB/T 4893.4Furniture surface test — Adhesion of paint films | |
| Edge safety recommendation | GB 28007Safety requirements for children's furniture (applicable for public spaces with minor access) | |
| Structural safety recommendation | GB/T 3324General technical requirements for metal furniture | |
| Coating performance recommendation | GB/T 4893.4Test of surface coatings for furniture - Part 4: Determination of adhesion | |
| Corrosion resistance recommendation | GB/T 2007Determination of resistance to neutral salt spray for paints and varnishes |
Standardized tender description text
This product must meet the following technical requirements: 1. Public seating structural safety recommendation: GB/T 3324General technical requirements for metal furniture; 2. Coating adhesion recommendation: GB/T 4893.4Furniture surface test — Adhesion of paint films; 3. Edge safety recommendation: GB 28007Safety requirements for children's furniture (applicable for public spaces with minor access); 4. Structural safety recommendation: GB/T 3324General technical requirements for metal furniture; 5. Coating performance recommendation: GB/T 4893.4Test of surface coatings for furniture - Part 4: Determination of adhesion; 6. Corrosion resistance recommendation: GB/T 2007Determination of resistance to neutral salt spray for paints and varnishes; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
