Name: 3-Seater Metal Frame Waiting Bench with Upholstered Pads
Brand: WEINENG
SKU: 4DAWWA

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1780 × 680 × 800 mm
Single seat width	520 mm
Seat depth	450 mm
Seat height from floor	430 mm
Backrest height above seat	400 mm
Backrest thickness	30 mm
Seat pad thickness	20 mm
Armrest height above seat	200 mm
Leg spread width (single end leg unit)	650 mm
Adjustable foot pad diameter	40 mm
Under-seat ground clearance	280 mm
Gap between adjacent seats	10 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	36 kg
Static load per seat	150 kg
Total static load for full bench	450 kg
Maximum recommended user weight per seat	120 kg
Seat-to-floor connection static stability load	800 N
Surface upholstery abrasion resistance	50000 cycles
Frame corrosion resistance	48 hours
Design service life	5 years
Static vertical load per seat	150 kg
Total static load capacity for full bench	450 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main support frame beam	1.5 mm thick cold-rolled steel tube, chrome plated finish
Leg supports	Die-cast aluminum alloy, polished chrome finish
Seat support panels	1.2 mm thick cold-rolled steel plate, powder coated internal finish
Back support panels	1.2 mm thick cold-rolled steel plate, powder coated internal finish
Armrests	1.5 mm thick bent steel tube, chrome plated finish
Seat upholstery surface	0.8 mm thick brown polyurethane (PU) leather
Back upholstery surface	0.8 mm thick brown polyurethane (PU) leather
Seat core padding	20 mm thick high-density polyurethane foam, density 40 kg/m³
Back core padding	30 mm thick high-density polyurethane foam, density 35 kg/m³
Floor feet	Reinforced nylon adjustable leveling pads, rubber anti-slip base
Connection fasteners	Grade 8.8 zinc-plated steel bolts and nuts
Surface treatment on metal parts	Triple chrome plating over nickel undercoat

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat configuration	3 fixed individual seats, non-reclining, non-tilting
Armrest provision	2 end armrests, no intermediate armrests between seats
Floor leveling	4 adjustable screw-in foot pads to compensate for uneven floor surfaces
Cleaning access	280 mm under-seat clearance allows wet mopping and robotic vacuum access below the bench
Modular connection capability	End frames have pre-drilled connection points to gang additional 2-seat, 3-seat or single units for longer waiting rows
Surface cleanability	PU upholstery and chrome metal surfaces allow disinfection with common hospital-grade cleaning agents
No under-seat storage	Open under-seat structure with no enclosed storage compartments
Fixed mounting option	Leg bases have pre-punched holes for permanent floor anchoring if required for high-security areas
Seat ventilation	Firm foam padding with slight contour to reduce heat buildup during extended waiting use
Armrest arrangement	2 end-mounted armrests, no intermediate armrests between adjacent seats
Floor leveling adjustment	4 adjustable screw-in foot pads providing 15 mm vertical adjustment per foot
Modular row extension	End leg frames have pre-drilled connection points to gang additional single, 2-seat or 3-seat units for continuous rows

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	1 package
Shipping carton dimensions	1820 x 720 x 280 mm
Gross shipping weight	42 kg
Shipping volume per unit (CBM)	0.37 CBM
Assembly time per unit	30 minutes
20ft GP container loading quantity	72 units
40ft HQ container loading quantity	175 units
Standard packaging materials	5-layer double-wall corrugated carton, EPS foam edge protection, PE film wrap for metal parts, hardware kit and assembly manual included
Shipping volume per unit	0.37 CBM
Reference Package Count	1 set / 2 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital outpatient waiting areas	Durable, easy-to-disinfect surfaces and high load capacity support heavy daily patient traffic without rapid wear
Airport/railway/bus station waiting halls	Modular connection capability allows configuration of long continuous rows to maximize seating capacity in high-volume transit spaces
Bank and government service lobby waiting zones	Neutral professional appearance and easy maintenance suit formal public service environments with consistent visitor turnover
Office reception and visitor waiting areas	Compact 3-seat configuration fits small to medium reception spaces without requiring excessive floor space
Clinic and dental office waiting rooms	Smooth PU upholstery can be disinfected between patients to support basic hygiene requirements
Indoor public corridor rest areas	Scratch-resistant chrome finish and durable construction withstand incidental contact from passing people and equipment
Airport, railway and bus station waiting halls	Modular connection capability allows assembly of long continuous rows to maximize seating capacity, with stable frame construction resisting luggage impact and heavy passenger use
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Furniture - Strength, durability and safety - Non-domestic seating, applicable for structural performance requirements for heavy contract public seating
EN 1022:2018	Furniture - Seating - Determination of stability, applicable for tipping resistance testing under normal use loads
EN 13722:2004	Furniture - Assessment of surface resistance to wet heat, applicable for surface finish resistance to cleaning and disinfection liquids

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.4 Public and Lounge Seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for metal furniture, applicable for frame strength, dimensional tolerance and surface quality inspection
GB/T 24821-2009	Public waiting seating for public places, applicable for structural safety, load capacity and stability testing
GB 18584-2001	Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde and VOC emission limits for internal panel and foam components
GB/T 10357.3-2013	Test of mechanical properties of furniture - Strength and durability of chairs and stools, applicable for static load, fatigue and impact testing of seats and backrests

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for metal furniture, applicable for frame strength, dimensional tolerance and surface quality inspection;
2. GB/T 24821-2009: Public waiting seating for public places, applicable for structural safety, load capacity and stability testing;
3. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde and VOC emission limits for internal panel and foam components;
4. GB/T 10357.3-2013: Test of mechanical properties of furniture - Strength and durability of chairs and stools, applicable for static load, fatigue and impact testing of seats and backrests;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WAIT-3S-PU-CHR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WAIT-3S-PU-CHR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WAIT-3S-PU-CHROpen Export Tool

Quick Actions

Post an RFQ

Product Description

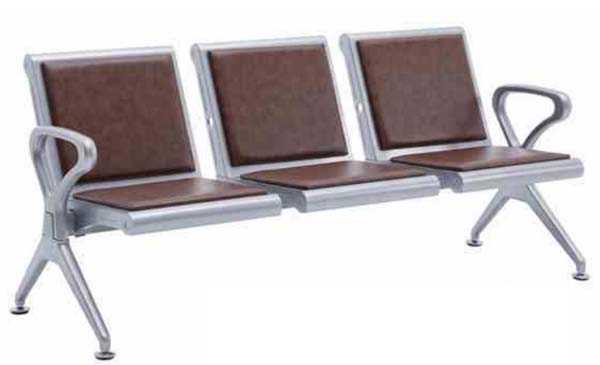

The WEINENG WT-3S-PU-CHAIR is a 3-seater metal frame waiting bench classified as public gang seating, designed to balance professional aesthetics, durable construction, and functional utility for high-turnover spaces. Visually, the bench presents a streamlined, linear layout with two end-mounted curved chrome armrests and no intermediate dividers between seats, maximizing seating density while mntning an open, uncluttered silhouette. Coordinated brown polyurethane upholstery covers contoured seat and backrest pads, paired with polished chrome metal framing and X-shaped outrigger legs that deliver a clean, industrial yet approachable look suited to formal and utilitarian environments alike. Built for consistent public use, the bench features a core support structure of cold-rolled steel tube for main beams and bent steel armrests, die-cast aluminum alloy leg supports, and internal cold-rolled steel plate backing for seat and backrest components, all finished with triple chrome plating over a nickel undercoat for corrosion protection. Upholstered surfaces use smooth brown PU leather over high-density polyurethane foam padding, with a dedicated lumbar support zone on the backrest to mntn upright, comfortable posture during short-term waiting. Reinforced nylon adjustable foot pads with rubber anti-slip bases sit at each leg end, and grade 8.8 zinc-plated steel fasteners secure all structural connections. Functional design elements support practical long-term operation: the fixed, non-reclining three-seat configuration includes a generous under-seat clearance that enables unobstructed wet mopping and robotic vacuum access, with no enclosed under-seat storage to trap debris. Each adjustable foot pad offers vertical adjustment to level the bench on uneven floors, while pre-drilled connection points on end frames allow linking of additional single, 2-seat, or 3-seat units to form continuous custom-length rows. Pre-punched holes on leg bases support permanent floor anchoring for high-security settings, and non-porous PU and chrome surfaces tolerate disinfection with common hospital-grade cleaning agents. Static load ratings align with commercial public use requirements, and the abrasion-resistant PU upholstery is rated for high-traffic wear. This bench fits a broad range of commercial and select residential settings: it supports heavy patient traffic in hospital outpatient areas and dental clinics, adapts to high-volume transit waiting halls in rports, rlway, and bus stations, suits formal bank and government service lobbies, fits compact to medium office reception zones, and works for indoor public corridor rest areas. For procurement, note the unit ships in knock-down packaging for efficient transport, with standard assembly requiring one worker with basic hand tools. Buyers should confirm final bill of materials details with suppliers prior to large-volume orders, and select permanent floor anchoring hardware if required for high-traffic or security-sensitive installations.
