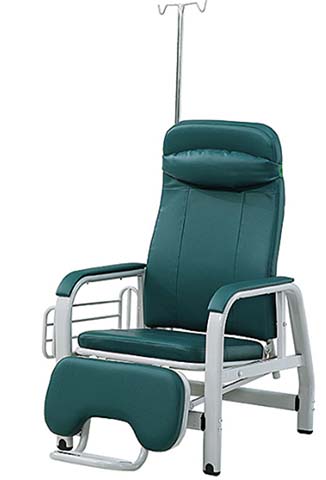

Product supplierReclining Medical Infusion Chair with Integrated IV Pole, 1.5mm thick powder-coated cold-rolled steel tubing
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 700 × 820 × 1150 mm | |
|---|---|---|
| Overall assembled dimensions | 700 x 820 x 1150 mm | |
| Seat surface height from floor | 450 mm | |
| Seat usable width between armrests | 520 mm | |
| Seat depth from front edge to backrest | 480 mm | |
| Backrest height from seat surface | 700 mm | |
| Pull-out leg rest extension length | 400 mm | |
| Armrest height from seat surface | 220 mm | |
| IV pole usable height above seat | 1200 mm | |
| Deployed full depth with leg rest extended | 1200 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight range | 28 kg | |
|---|---|---|
| Maximum static user weight capacity | 150 kg | |
| Seat foam density | 40 kg/m³ | |
| Seat and backrest foam padding thickness | 80 mm | |
| PU upholstery abrasion resistance | 50000 Martindale cycles | |
| Recommended maximum continuous use duration per session | 8 hours | |
| IV pole static load capacity | 5 kg | |
| Recline mechanism cycle durability | 20000 cycles | |
| Caster (if fitted) rolling durability | 40000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Primary structural frame | 1.5mm thick powder-coated cold-rolled steel tubing | |
|---|---|---|
| Seat, back, leg rest and armrest padding | High-density polyurethane foam | |
| Upholstery covering | Medical-grade antimicrobial dark teal polyurethane (PU) leather | |
| Armrest structural supports | Bent steel tube matching main frame finish | |
| Integrated IV pole | Chrome-plated 19mm diameter steel tubing | |
| Foot caps | Non-slip injection-molded rubber | |
| Recline and leg rest hardware | Zinc-plated steel hinges and slide rails | |
| Side accessory rails | Welded steel bar rails on left armrest | |
| Foot contact caps | 10mm thick non-slip injection-molded rubber | |
| Integrated front footrest | 1.2mm thick steel tube with powder-coated finish, attached to leg rest frame | |
| IV pole mounting bracket | 3mm thick welded steel plate fixed to rear frame | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Backrest recline function | Manual step-adjustable recline up to 130 degrees from vertical | |
|---|---|---|
| Pull-out leg rest operation | Slide-out padded leg rest with manual lock, deploys to support lower legs in reclined position | |
| IV pole height adjustment | Telescoping height adjustment with 4 locking positions, top fitted with 2 dual-purpose hooks | |
| Entry and exit access | Fixed armrests with open front edge, no raised seat lip for easy side access | |
| Cleaning compatibility | Waterproof seamless upholstery with stitched seams designed for wipe-down disinfection | |
| Surface protection | Non-marking rubber foot caps eliminate floor scuffing and prevent chair movement during use | |
| Disinfection compatibility | Waterproof 1.2mm thick PU upholstery with 8mm stitch pitch, seamless edge binding designed for wipe-down disinfection | |
| Leg rest integrated foot support | Fixed steel foot bar on leg rest front edge supports feet when in extended reclined position | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 1 | |
|---|---|---|
| Shipping carton dimensions | 780 x 680 x 580 mm | |
| Gross shipping weight per unit | 32 kg | |
| Shipping volume per unit | 0.31 CBM | |
| on-site assembly time | 20 minutes | |
| 20ft GP container loading capacity | 84 units | |
| 40ft HQ container loading capacity | 208 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Hospital outpatient infusion centers | Fixed-position seating designed for extended intravenous therapy sessions, supports both upright and reclined postures | |
|---|---|---|
| Dialysis and oncology treatment units | Cushioned support and leg rest function accommodates multi-hour treatment sessions for patient comfort | |
| Community health clinics and vaccination centers | Durable construction supports high daily patient turnover, accessible seat height suits users of most mobility levels | |
| Private medical practice treatment rooms | Neutral dark teal upholstery maintains a professional clinical appearance, stain-resistant finish reduces long-term maintenance costs | |
| Emergency department observation bays | Quick-access seating for short-term observation and fluid administration, fixed frame eliminates tipping risk in high-activity areas | |
| Blood donation centers | Reclining function supports donor positioning during phlebotomy and post-donation recovery, padded armrests provide stable surface for needle placement | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB 18584-2001 | Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applies to formaldehyde and heavy metal content limits for any composite components | |
|---|---|---|
| GB/T 19001-2016 | Quality management systems requirements, recommended for supplier production process control validation for bulk procurement |
Standardized tender description text
This product must meet the following technical requirements: 1. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applies to formaldehyde and heavy metal content limits for any composite components; 2. GB/T 19001-2016: Quality management systems requirements, recommended for supplier production process control validation for bulk procurement; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
