Automatic mm / inch conversion · Core engineering specifications

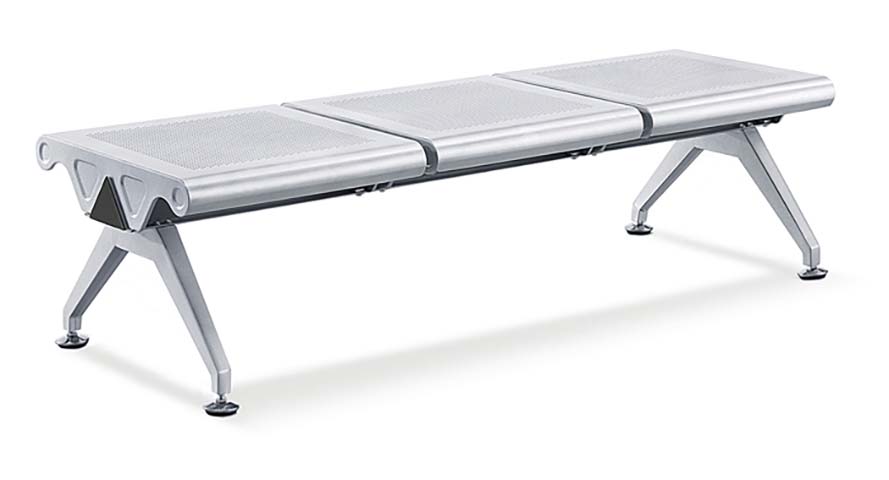

| Overall dimensions | 1800 x 490 x 450 mm | |
|---|---|---|
| Individual seat width | 580 mm | |
| Seat surface depth | 490 mm | |
| Seat height from floor | 450 mm | |
| Perforated seat panel thickness | 1.5 mm | |
| Support beam wall thickness | 2.0 mm | |
| Leg frame material thickness | 2.0 mm | |
| Leveling foot diameter | 70 mm | |
| Leg splay base width | 650 mm | |
| Rounded seat edge radius | 15 mm | |
| Adjustable leveling foot height range | 20 mm | |
| Perforation hole diameter | 8 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Static load per seat | 200 kg | |
|---|---|---|
| Total bench static load capacity | 600 kg | |
| Total net weight | 40 kg | |
| Seat compression cycle durability | 50000 cycles | |
| Recommended number of users | 3 people | |
| Surface cleanability rating | Disinfectant-safe, wipe-clean perforated metal | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat surface panels | 1.5mm perforated cold-rolled steel, silver anti-corrosion finish | |
|---|---|---|
| Structural support beam | 2.0mm wall thickness rectangular steel, welded joint construction | |
| Splayed leg frames | 2.0mm thick die-cast aluminum alloy or steel, matte silver finish | |
| Adjustable leveling feet | Steel threaded stem with TPE anti-slip rubber base pad | |
| Seat edge trim | Rolled rounded steel edge with polished silver finish | |
| End cap reinforcement plates | Stamped steel triangular bracing plates at seat ends | |
| Surface finish | Electrostatic epoxy powder coating or chrome plating, silver tone | |
| Hardware fasteners | Zinc-plated steel bolts and lock nuts for knock-down assembly | |
| End decorative inserts | Black rigid plastic triangular accent inserts at seat end caps | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Floor leveling adjustment | 20mm height adjustment per foot to compensate for uneven floors | |
|---|---|---|
| Seating configuration | 3 divided contiguous armless seats for flexible individual or shared use | |
| Ventilation performance | Perforated seat surface enables continuous airflow for user comfort | |
| Installation flexibility | Compatible with both free-standing placement and optional floor anchoring | |
| Stacking compatibility | Non-stackable fixed gang structure for permanent high-traffic placement | |
| Surface maintenance access | Open perforated design allows quick debris removal and disinfection | |
| Load distribution | Triangular end bracing and splayed legs distribute user weight evenly across contact points | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Airport/rail transit waiting concourses | Suitable for short-term high-turnover seating with durable easy-clean surfaces | |
|---|---|---|
| Hospital/clinic waiting areas | Non-porous perforated surface supports frequent disinfection for infection control | |
| Bank/service hall public areas | Armless segmented design accommodates flexible occupant spacing for visitors | |
| School administration/registrar lobbies | Stable fixed structure resists heavy daily use by student and visitor traffic | |
| Outdoor covered public transit stops | Powder-coated metal finish resists moisture and corrosion for semi-outdoor use |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating | |
|---|---|---|
| EN 1022:2018 | Furniture - Seating - Determination of stability |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3325-2017 | Metal furniture general technical requirements | |
|---|---|---|
| GB/T 6461-2002 | Salt spray resistance rating for protective coatings on metal substrates | |
| GB 28007-2011 | General safety requirements for children's furniture (if used in pediatric areas) | |
| GB/T 10357.3-2013 | Furniture mechanical performance test for seating strength and durability | |
| Coating salt spray resistance grade | Grade 10 |
This product must meet the following technical requirements: 1. GB/T 3325-2017: Metal furniture general technical requirements; 2. GB/T 6461-2002: Salt spray resistance rating for protective coatings on metal substrates; 3. GB 28007-2011: General safety requirements for children's furniture (if used in pediatric areas); 4. GB/T 10357.3-2013: Furniture mechanical performance test for seating strength and durability; 5. Coating salt spray resistance grade: Grade 10; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
