PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1810 × 780 × 800 mm
per-seat usable width	580 mm
seat height from floor	420 mm
seat usable depth	490 mm
backrest height above seat	380 mm
armrest height above seat	220 mm
support beam cross-section	80 x 40 mm
X-leg footprint width per end	650 mm
leveling foot diameter	50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net weight per 3-seat set	28 kg
per-seat static load capacity	200 kg
coating corrosion resistance	500 hours salt spray
structural service life	10 years
standard warranty period	3 years
standard color option count	12
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

seat panels	1.5mm thick cold rolled steel plate, rolled front edge, powder coated finish
backrest panels	1.5mm thick perforated cold rolled steel, hexagonal ventilation holes, powder coated
central support beam	2.0mm thick rectangular steel tube, electrostatic powder coated
end armrests	1.5mm thick bent steel tube, rounded polished edges, powder coated
X-shaped end support legs	1.5mm thick cast/cut steel plate, reinforced gussets, powder coated
adjustable leveling feet	Zinc-plated steel stem, 50mm non-slip rubber base
mounting hardware	Grade 8.8 heat-treated steel through-bolts, lock washers to prevent loosening
surface finish	Outdoor-grade silver polyester powder coating, anti-rust phosphate pre-treatment
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

seating configuration	Fixed linear 3-seat layout, no intermediate armrests for flexible occupancy
floor stabilization	Four independently adjustable leveling feet to compensate for uneven floors
ventilation design	Full perforated backrest panels to reduce heat buildup during extended waiting use
structural mounting	Seat and back units secured to central beam with through-bolts to eliminate joint wobble
edge safety	Rolled rounded front seat edges and polished armrest edges to prevent clothing snags or injury
cleaning access	Open under-seat clearance and perforated surfaces allow quick mopping and debris removal
upgrade compatibility	Pre-drilled mounting points compatible with optional 30mm PU seat cushions or intermediate side tables
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

hospital/clinic waiting areas	Suitable for high-traffic medical waiting zones, resistant to cleaning chemicals and heavy use
airport/railway station concourses	Designed for continuous high-volume public use with stable structural support
bank/public service hall waiting zones	Provides clear, durable fixed seating with low maintenance requirements for public service spaces
school administration reception areas	Offers neat, long-lasting visitor seating with minimal upkeep for campus public areas
outdoor covered waiting shelters	Corrosion-resistant coated steel construction suitable for semi-outdoor public waiting spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Applicable standard for non-domestic seating strength, durability and safety

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3325-2017	Applicable standard for metal furniture strength, stability and durability requirements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3325-2017: Applicable standard for metal furniture strength, stability and durability requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WCH-M3-XL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WCH-M3-XL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WCH-M3-XLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

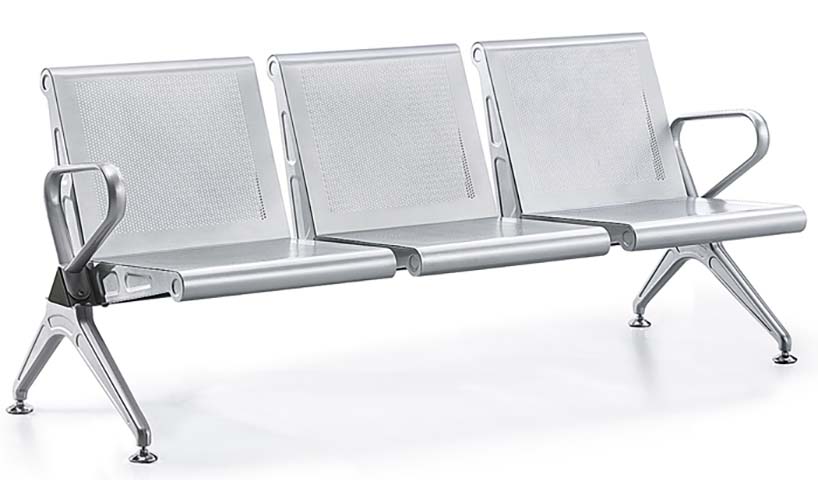

The 3-Seat Perforated Metal Beam Public Waiting Chair (model WCH-M3-XL, unbranded) is a robust beam seating solution designed for long-term public and high-traffic use, featuring a streamlined linear fixed layout with three connected seats, no intermediate armrests for flexible occupancy, and integrated end armrests supported by X-shaped leveling legs at each unit end. Its clean, industrial silhouette combines smooth silver powder-coated metal surfaces with textured perforated backrests for a neat, professional appearance that fits a wide range of functional spaces.
Constructed entirely from powder-coated cold rolled steel with phosphate pre-treatment for outdoor-grade corrosion resistance, the chair uses 1.5mm thick steel plate for rolled-front seat panels, hexagonal-perforated backrest panels, rounded-edge bent tube end armrests, and reinforced X-shaped end support legs. A 2.0mm thick rectangular central steel tube forms the core support beam, with Grade 8.8 heat-treated through-bolts and lock washers securing all seating components to eliminate joint wobble. Adjustable leveling feet with zinc-plated steel stems and non-slip rubber bases compensate for uneven floors, while a 14mm bent plywood internal support board sits beneath seat surfaces. The coating delivers 500 hours of salt spray corrosion resistance, with each seat supporting a 200kg static load, a 10-year structural service life, and a 3-year standard warranty; 12 standard color options are available.
Practical design features support heavy daily use: full perforated backrests reduce heat buildup during extended sitting, rolled rounded seat edges and polished armrest edges prevent clothing snags and minor injuries, open under-seat clearance and perforated surfaces enable fast, unobstructed cleaning and debris removal, and pre-drilled mounting points support optional 30mm PU seat cushions or intermediate side tables for customized setups.
This seating is well suited for hospital and clinic waiting areas, airport and railway station concourses, bank and public service hall waiting zones, school administration reception areas, and covered outdoor waiting shelters, where its resistance to cleaning chemicals, low maintenance requirements, and stable construction support continuous high-volume use.
Procurement teams should note each unit ships in two cartons, with a 40-minute per-set assembly time, and plan for compatible accessories or layout spacing based on fixed overall dimensions; the corrosion-resistant coating supports semi-outdoor installation without additional surface treatment for covered locations.
