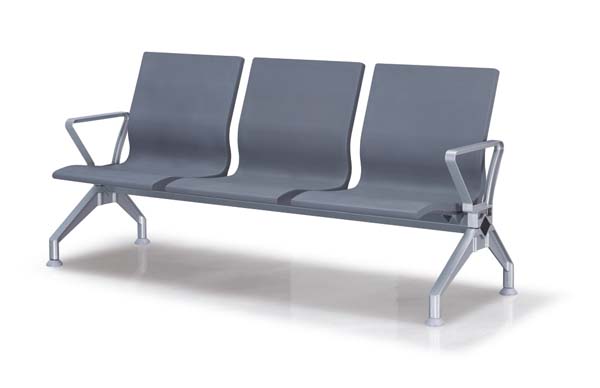

Product supplier3-Seater Metal Frame Waiting Bench, 1.5mm thick cold-rolled steel sheet, powder-coated matte gray finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 680 × 800 mm | |
|---|---|---|
| Overall assembled dimensions | 1800 x 680 x 800 mm | |
| Single seat width | 570 mm | |
| Seat height from floor | 430 mm | |
| Seat depth | 480 mm | |
| Backrest height above seat | 420 mm | |
| Armrest height above seat | 220 mm | |
| Leg footprint width (per end frame) | 620 mm | |
| Divider gap between adjacent seats | 20 mm | |
| Floor glide diameter | 50 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 28 kg | |
|---|---|---|
| Static load per seat | 200 kg | |
| Total static bench load capacity | 600 kg | |
| Recommended seated users | 3 | |
| Seat panel surface static friction coefficient | 0.5 | |
| Warranty period for structural frame | 5 years | |
| Number of standard finish color options | 4 | |
| Static load rating per individual seat | 200 kg | |
| Rated occupant capacity | 3 | |
| Seat surface static friction coefficient | 0.5 |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back panels | 1.5mm thick cold-rolled steel sheet, powder-coated matte gray finish | |
|---|---|---|
| Support frame and legs | 2.0mm thick cold-rolled steel tube, silver powder-coated corrosion-resistant finish | |
| End armrests | Integral formed steel tube matching frame finish, welded to end leg assemblies | |
| Seat dividers | Raised formed steel edge integrated into seat/back panels | |
| Leg connection brackets | 3mm thick stamped steel plates, black anti-corrosion coating at frame joints | |
| Floor glides | Injection-molded nylon with non-marking rubber base | |
| Frame surface coating | Electrostatic polyester powder coating, 80μm thickness | |
| Welded joint treatment | Ground smooth seams with full perimeter welds at all tube connections | |
| Seat and backrest panels | 1.5mm thick cold-rolled steel sheet, matte gray electrostatic powder-coated finish | |
| Support frame and end legs | 2.0mm thick die-cast aluminum alloy, silver powder-coated corrosion-resistant finish | |
| Integrated seat dividers | Raised formed steel edge integrated into seat/back panel stamping | |
| Frame connection brackets | 3mm thick stamped steel plates, black anti-corrosion coating at all beam-to-leg joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed non-reclining structure | Rigid welded frame with no moving parts for zero maintenance in high-traffic areas | |
|---|---|---|
| Individual separated seating | Raised dividers between seats to prevent cross-user contact and define personal space | |
| End-mounted transfer armrests | Armrests fitted to both outer seats to assist users standing and sitting, no armrests between seats | |
| Non-slip floor anchoring compatibility | Pre-drilled glide bases allow permanent bolting to hard floors for anti-tip security in public spaces | |
| Stackable knock-down shipping | Disassembled frame and panels for compact transport, simple bolt-together assembly on site | |
| Easy clean surface | Smooth non-porous powder-coated surfaces that can be wiped or pressure-washed without damage | |
| Anti-tip splayed leg design | Angled outward leg geometry to eliminate forward/backward tipping risk under uneven load | |
| Fixed rigid non-reclining structure | Fully welded bolted frame with zero moving adjustment parts to deliver maintenance-free performance in high-traffic unattended areas | |
| Zone-divided individual seating | Raised integrated dividers between adjacent seats to prevent cross-user contact and clearly define personal seating space | |
| Transfer-assist end armrests | Ergonomically angled armrests installed only on both outer seats to support user sit-to-stand transfers, no armrests between middle seats to maximize seating flexibility | |
| Floor anchor compatibility | Pre-drilled mounting holes in glide bases allow permanent bolting to concrete or hard floors to deliver anti-tip security in high-traffic public spaces | |
| Flat-pack knock-down delivery | Disassembled beam, leg, and panel components for compact transport, requiring only bolt-together assembly on site without specialized tools |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 1 carton | |
|---|---|---|
| Shipping carton dimensions | 1850 x 700 x 180 mm | |
| Gross shipping weight | 32 kg | |
| Shipping volume per unit | 0.233 CBM | |
| Required assembly time per unit | 30 minutes | |
| 20ft GP container loading quantity | 120 units | |
| 40ft HQ container loading quantity | 290 units | |
| Packaging material | 5-layer corrugated carton with EPS foam corner protection and plastic film wrapping | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Hospital outpatient waiting areas | Non-porous cleanable surfaces and high load capacity suited for continuous high-turnover healthcare use | |
|---|---|---|
| Airport, railway and bus terminal waiting zones | Low-maintenance fixed structure and anti-tip design suitable for unattended public transport hubs | |
| Bank, government service hall queue areas | Neutral matte gray finish and defined individual seats support orderly public service environments | |
| Office reception and visitor waiting spaces | Compact footprint provides 3 seats per unit for temporary visitor seating in entrance areas | |
| School and university common areas | Rigid welded construction resists vandalism and heavy use in student-facing public spaces | |
| Clinic and outpatient pharmacy waiting rooms | Smooth wipe-clean surfaces allow frequent disinfection to meet healthcare hygiene standards | |
| Hospital outpatient department waiting areas | Non-porous disinfectable surfaces and 600kg total load capacity support continuous high-turnover healthcare use, withstanding daily clinical cleaning protocols | |
| Airport, railway, and intercity bus terminal waiting zones | Zero-maintenance fixed structure and anti-tip splayed leg design deliver reliable performance in unattended high-footfall public transport hubs |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 Furniture - Strength, durability and stability - Non-domestic seating | Applicable for non-domestic public seating stability, static load and fatigue testing | |
|---|---|---|
| EN 13722:2004 Furniture - Assessment of surface resistance to cold liquids | Applicable to powder-coated surface resistance to cleaning agents and common spills | |
| EN 1022:2018 Domestic and non-domestic seating - Determination of stability | Applicable to verify anti-tip performance under all normal user loading conditions |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for metal furniture | Applicable to structural integrity, coating adhesion, and dimensional tolerance for this metal waiting bench | |
|---|---|---|
| GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools | Applicable for seat static load, backrest static load, and leg strength testing | |
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable for non-metal component hazardous substance limits if composite panels are used | |
| GB/T 4893.4-2013 Test of surface coatings for furniture - Part 4: Determination of adhesion | Applicable to verify powder coating adhesion strength to resist chipping in high-traffic use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for metal furniture: Applicable to structural integrity, coating adhesion, and dimensional tolerance for this metal waiting bench; 2. GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools: Applicable for seat static load, backrest static load, and leg strength testing; 3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable for non-metal component hazardous substance limits if composite panels are used; 4. GB/T 4893.4-2013 Test of surface coatings for furniture - Part 4: Determination of adhesion: Applicable to verify powder coating adhesion strength to resist chipping in high-traffic use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
