PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 768 × 900 mm
single seat width	530 mm
seat height above floor	440 mm
seat depth (front to back)	460 mm
backrest height above seat	510 mm
seat center-to-center spacing	600 mm
armrest height above floor	620 mm
armrest length	385 mm
armrest width	40 mm
single leg front-to-back splay length	630 mm
leg foot contact diameter	45 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net weight (reference)	38 kg
single seat static load capacity	150 kg
seat surface vertical pressure resistance	2000 N
backrest horizontal pressure resistance	760 N
integral PU service life (high-traffic use)	20 years
PU surface abrasion resistance (reference)	50000 cycles
base stability deflection (level load)	1.0 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

seat and backrest panels	30 mm thick molded integral self-skin PU
internal seat/back support core	1.5 mm cold-rolled steel plate fully wrapped in PU
main horizontal support beam	90 mm hexagonal aluminum alloy tube, 3.0 mm wall thickness
support legs	One-piece die-cast aluminum alloy herringbone legs, 2.8 kg per leg
end armrests	Die-cast aluminum alloy open-loop armrests with polished chrome finish
fasteners	M8 and M10 hex socket bolts with self-locking nuts and spring washers
leg floor feet	Adjustable chrome-plated steel feet with anti-slip rubber pads
metal surface treatment	Electrostatic powder coating on internal steel parts, polished finish on aluminum
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

seating configuration	Linear 3 connected fixed seats on shared aluminum beam, no intermediate armrests
installation type	Free-standing or floor-anchored fixed installation with adjustable leveling feet
seat ergonomics	Waterfall-front contoured seats and curved upright backrests for short-term waiting support
cleaning suitability	Non-porous seamless PU surface allows full disinfection and wipe cleaning
structural stability	Four splayed herringbone legs distribute load evenly to prevent tipping
adjustment features	No recline, swivel, lift or tilt mechanisms; permanently fixed public seating position
optional accessories (reference)	Side tables, USB charging ports, row signage or coat hooks may be added via beam mounts
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

airport terminal waiting areas	High-traffic durable seating supports frequent short-term use and fast cleaning between occupants
hospital and clinic waiting zones	Non-porous disinfectable surface meets infection control requirements for medical public spaces
railway and bus station concourses	High static load and wear resistance suits continuous high-volume passenger use
public service hall reception areas	Fixed stable configuration prevents rearrangement and maintains clear queue pathways
office building lobby waiting spaces	Streamlined metal/red PU design complements modern commercial interior finishes
indoor public facility rest areas	End armrests provide support without blocking access between adjacent seats
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Strength, durability and safety standard applicable for non-domestic public seating
EN 1022:2018	Stability test standard applicable for seating used in public waiting areas
EN 13722:2004	Upholstered furniture PU foam performance standard applicable for molded seat components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	General purpose office/public seating test standard applicable for load and durability
ANSI/BIFMA X5.4-2022	Lounge and public seating standard applicable for multi-occupancy beam seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements applicable for metal furniture structural safety and finish
GB/T 35607-2017	Green product evaluation standard applicable for public area furniture VOC limits
GB 18584-2001	Indoor decorating material standard applicable for formaldehyde and heavy metal limits

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements applicable for metal furniture structural safety and finish;
2. GB/T 35607-2017: Green product evaluation standard applicable for public area furniture VOC limits;
3. GB 18584-2001: Indoor decorating material standard applicable for formaldehyde and heavy metal limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WBP-3R-AL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WBP-3R-AL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WBP-3R-ALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

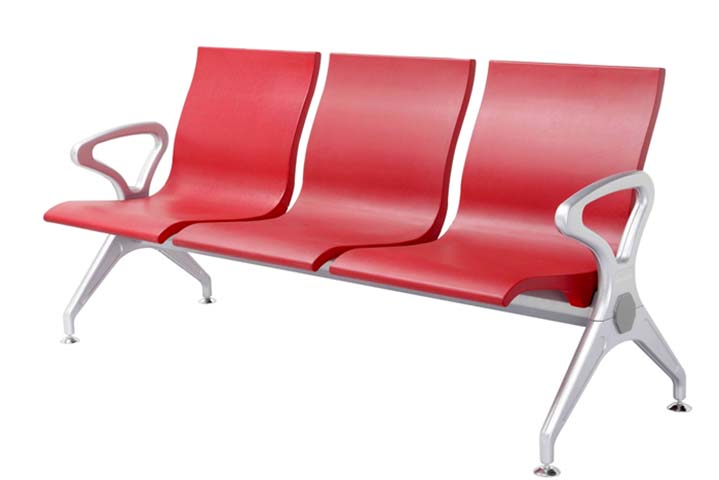

The WBP-3R-AL 3-seat public waiting bench features a streamlined linear beam seating layout, with bold red molded integral self-skin PU seat and back panels paired with polished metal components for a cohesive, modern visual presence. The unit uses end-only chrome-plated open-loop armrests with no intermediate dividers, supported by four splayed herringbone die-cast aluminum alloy legs anchored to a 90 mm hexagonal aluminum alloy main beam. Each 30 mm thick PU panel fully wraps a 1.5 mm cold-rolled steel plate internal core, with a 14 mm bent plywood support board integrated into the seat structure. Legs are fitted with adjustable chrome-plated steel feet topped with anti-slip rubber pads, and all metal connections use M8 and M10 hex socket bolts with self-locking nuts and spring washers for secure assembly; internal steel components receive an electrostatic powder coating, while exposed aluminum surfaces carry a polished finish.
Ergonomically shaped with waterfall-front contoured seats and curved upright backrests, the bench provides comfortable short-term waiting support with permanently fixed seating positions that include no recline, swivel, lift, or tilt functions. The non-porous seamless PU surface supports full disinfection and quick wipe cleaning, while the evenly splayed leg design distributes weight across contact points to prevent tipping. Each seat supports 150 kg of static load, the PU surface resists abrasion across heavy use, and the integral PU material delivers 20 years of service life under high-traffic conditions. The unit can be installed as free-standing with adjustable leveling, or anchored to the floor for permanent placement; optional beam-mounted accessories including side tables, USB charging ports, row signage, or coat hooks may be added to suit operational needs.
This bench is suited for high-turnover public spaces including airport terminal waiting areas, hospital and clinic zones requiring disinfection-compatible surfaces, railway and bus station concourses, public service hall reception areas that require fixed seating to maintain clear queue paths, modern office building lobbies, and indoor public facility rest areas. When procuring, note each unit ships in two cartons, requires 40 minutes of assembly per set, and buyers can plan for 135 sets per 20GP container at standard space utilization.

3-Seat Red Integral PU Beam Public Waiting Bench with Aluminum Alloy Legs Specifications
