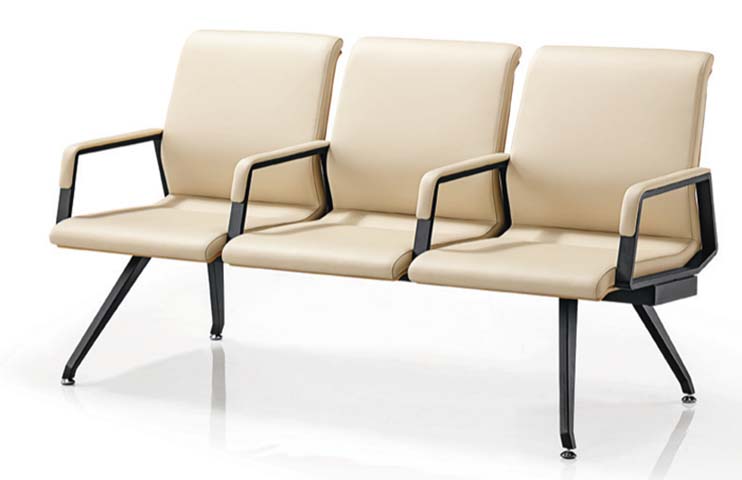

Product supplier3-Seat Beige Upholstered Public Waiting Area Tandem Bench with Black Metal Arms, 2.0 mm thick cold-rolled steel with matte black electrostatic powder coating
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 780 × 890 mm | |
|---|---|---|
| Seat height from floor | 420 mm | |
| Per-seat usable width | 580 mm | |
| Seat usable depth | 480 mm | |
| Backrest height above seat | 600 mm | |
| Armrest height above seat | 220 mm | |
| Leg splay outwards from seat edge | 120 mm | |
| Leveling foot adjustment range | 15 mm | |
| Armrest width | 50 mm | |
| Seat pad thickness | 80 mm | |
| Knee clearance under front seat edge | 340 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-seat static load capacity | 136 kg | |
|---|---|---|
| Unit net weight | 38 kg | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Seat foam density | 45 kg/m³ | |
| Frame anti-corrosion service life | 5 years | |
| Seam stitch pitch | 8 stitches per 30 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Support frame and legs | 2.0 mm thick cold-rolled steel with matte black electrostatic powder coating | |
|---|---|---|
| Seat and back upholstery surface | Beige healthcare-grade wipe-clean faux leather | |
| Seat and back padding | 45 kg/m³ high-density polyurethane foam, 80 mm thick | |
| Internal seat support structure | 1.2 mm thick steel flat tube welded to 1.0 mm steel support plate | |
| Armrest structural frame | 2.0 mm thick powder-coated steel with matching beige padded top cap | |
| Floor contact feet | Chrome-plated steel adjustable leveling glides with non-slip rubber base | |
| Frame surface treatment | Acid pickling, anti-rust phosphate treatment prior to powder coating | |
| Upholstery performance coating | Stain-resistant and disinfectant-wipe compatible top finish | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Fixed 3-position linked tandem seating with fixed intermediate armrests | |
|---|---|---|
| Floor leveling function | Each leg features an adjustable threaded glide to compensate for uneven hard floors | |
| User separation | Fixed armrests between every seat position to define personal space and prevent crowding | |
| Surface maintenance | Smooth non-porous upholstery allows wiping with standard disinfectants for public hygiene | |
| Structural stability | Splayed angled leg geometry distributes user weight to prevent tipping under static load | |
| Row expansion capability | Fixed frame design supports ganging to adjacent units for longer waiting rows | |
| Fixed upright posture support | Contoured non-reclining backrests maintain upright seated position for short-term waiting | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Shipping carton dimensions | 1820 x 810 x 870 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Clinic and hospital waiting areas | Wipe-clean durable construction supports high-traffic medical public use with regular disinfection | |
|---|---|---|
| Office reception and lobby waiting zones | Neutral beige finish matches modern commercial interior design and accommodates visiting guests | |
| Bank and public service hall waiting lines | Fixed armrests and durable frame support extended daily high-cycle visitor use | |
| Airport and transport terminal waiting points | Stable splayed leg construction meets public safety requirements for high-footfall spaces | |
| School administration and service office waiting areas | Easy-clean surfaces resist stains from student and visitor daily use | |
| Fixed permanent public seating installations | Leveling feet enable stable installation on tile, concrete, and wood hard floor surfaces |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture for non-domestic seating, strength, durability and safety requirements for public areas | |
|---|---|---|
| EN 1022:2018 | Domestic and non-domestic seating, stability test methods applicable for static tipping resistance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Standard for public and lounge seating, applicable for load and durability performance verification | |
|---|---|---|
| ANSI/BIFMA X5.1-2017 | General office seating test methods, applicable for static load and stability reference |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable for structural strength and finish quality verification | |
|---|---|---|
| GB/T 17657-2013 | Test methods for evaluating surface physical and chemical properties of furniture finishes | |
| GB 18584-2001 | Limit of harmful substances for interior decoration furniture materials, for formaldehyde and heavy metal screening |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3325-2017: Metal furniture general technical requirements, applicable for structural strength and finish quality verification; 2. GB/T 17657-2013: Test methods for evaluating surface physical and chemical properties of furniture finishes; 3. GB 18584-2001: Limit of harmful substances for interior decoration furniture materials, for formaldehyde and heavy metal screening; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
