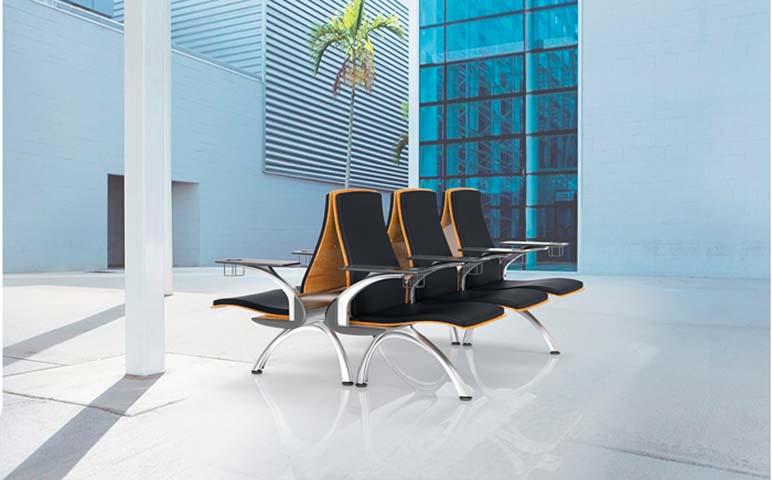

Product supplier3-Seat Public Waiting Beam Seating with Integrated Writing Tablets and Cup Holders, 2.0 mm thick cold-rolled steel, polished chrome plated
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1829 × 800 × 800 mm | |
|---|---|---|
| Overall footprint (W x D x H) | 1829 x 800 x 800 mm | |
| Individual seat width | 560 mm | |
| Seat depth | 450 mm | |
| Seat height from floor | 450 mm | |
| Backrest height above seat | 430 mm | |
| Writing tablet surface size | 300 x 250 mm | |
| Cup holder inner diameter | 80 mm | |
| Leg span (front to back at floor) | 650 mm | |
| Seat cushion thickness | 80 mm | |
| Backrest cushion thickness | 60 mm | |
| Wood accent trim thickness | 12 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended static load per seat | 156 kg | |
|---|---|---|
| Net weight per 3-seat unit | 128 kg | |
| Writing tablet static load capacity | 25 kg | |
| Fabric abrasion resistance (Martindale) | 50000 cycles | |
| Foam density (seat/back) | 45 kg/m³ | |
| Foam rebound rate | 45% | |
| Frame corrosion resistance rating | 1000 hours salt spray | |
| Design service life | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Structural support beam | 2.0 mm thick cold-rolled steel, polished chrome plated | |
|---|---|---|
| Curved cantilever legs | 2.0 mm thick chrome-plated steel, polished finish | |
| Seat and back inner support shell | 12 mm thick molded plywood with wood veneer trim | |
| Seat and back upholstery | Commercial grade black polyester fabric, stain-resistant coating | |
| Cushion padding | High-density polyurethane foam, fire-retardant additive optional | |
| Writing tablet surface | 15 mm thick black MDF board, scratch-resistant waterproof coating | |
| Tablet support brackets | Polished die-cast aluminum alloy, chrome finish | |
| Integrated cup holders | Chrome-plated steel wire frame, welded to tablet brackets | |
| Floor contact feet | Non-slip TPE rubber pads, 30 mm diameter | |
| Seat edge trim | 10 mm wide matching wood veneer edging | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Writing tablet operation | Foldaway arm-mounted tablet, rotates to stowed vertical position when not in use | |
|---|---|---|
| Cup holder function | Fixed wire cup holder integrated under each writing tablet, holds beverages upright | |
| Seat configuration | Fixed ganged 3-seat linear arrangement on shared structural beam | |
| Floor installation | Optional bolt-down fixing with pre-drilled leg holes for permanent public placement | |
| Seating posture support | 105° fixed upright backrest angle for short-term waiting comfort | |
| Arm support | Curved polished chrome armrests integrated with tablet support structure | |
| Seam construction | 8 stitches per inch reinforced upholstery seams for high-wear use | |
| Surface maintenance | Stain-resistant fabric and scratch-resistant tablet surfaces for easy daily cleaning | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Airport terminal waiting areas | High-traffic durable seating with writing surfaces for passenger use | |
|---|---|---|
| Hospital/clinic reception waiting zones | Stain-resistant upholstery and stable structure for continuous daily use | |
| Outdoor/covered public lobby spaces | Polished chrome finish resists moisture and mild weather exposure | |
| Corporate campus reception areas | Modern wood-accent aesthetic matches contemporary commercial architecture | |
| Government service center waiting halls | High weight capacity and durable construction meet heavy public use requirements | |
| University campus public waiting lounges | Integrated cup holders and writing tablets support casual student work during waits | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating, applicable to public waiting seating | |
|---|---|---|
| EN 1022:2018 | Furniture - Seating - Determination of stability, applicable for base stability verification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Office seating standard, applicable for reference load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.4-2020 | Lounge and public seating standard, applicable for public waiting seating safety |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to frame structural performance | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and textile upholstery, applicable for fabric VOC testing | |
| GB/T 10357.3-2013 | Furniture mechanical performance test for seating, applicable for seat/back static load testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame structural performance; 2. GB 20400-2006: Limit of harmful substances in leather and textile upholstery, applicable for fabric VOC testing; 3. GB/T 10357.3-2013: Furniture mechanical performance test for seating, applicable for seat/back static load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
