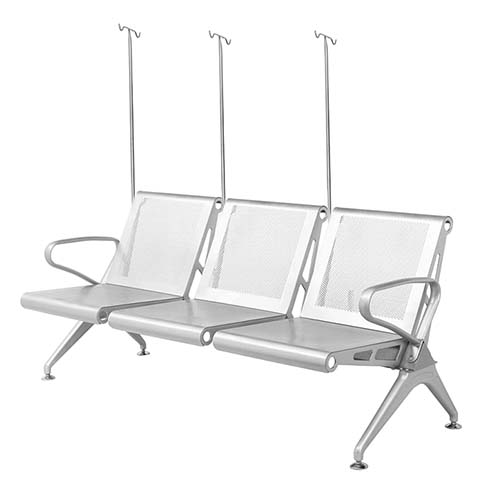

Name: 3-Seater Metal Medical Infusion Tandem Waiting Chair with IV Hooks
Brand: Yaqi Furniture
SKU: BT84MF

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1900 × 730 × 1030 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per unit	26 kg
Static load per seat	150 kg
Total unit static load capacity	450 kg
Design service life	10 years
Surface disinfectant compatibility	Unlimited wipe-down cycles
Recommended maximum occupancy	3 persons
Leveling foot adjustment range	15 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main support frame tubing	60 x 30 x 1.5 mm cold-rolled steel, welded
Seat and backrest panels	6 mm thick cold-rolled steel, perforated back, solid seat
IV rods and hooks	12 mm diameter stainless steel, polished finish
Armrests	1.5 mm thick formed cold-rolled steel, rounded edges
Surface treatment	Acid pickled, phosphated, high-temperature electrostatic powder coated
Leveling feet	Zinc-plated steel with non-slip rubber base
Fasteners	Internal hex galvanized steel bolts
Seat dividers	2 mm thick formed steel, welded to frame
Edge details	All exposed metal edges rounded and polished
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Fixed 3-position tandem beam seating
IV support	3 telescopic stainless steel IV rods, one per seat with dual top hooks
Floor installation	Adjustable leveling feet for stable free-standing placement
Cleaning access	Open frame and perforated back allow full access for disinfection
Position separation	Rigid metal dividers between seats define individual personal space
Armrest support	Fixed curved outboard armrests provide stable arm support
Ventilation	Perforated backrest panels allow air circulation
Maintenance	Bolted construction allows replacement of individual panels
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital outpatient infusion areas	Durable easy-to-clean metal construction supports high daily patient turnover
Clinic waiting and treatment zones	Fixed integrated IV hooks eliminate separate IV stand clutter
Community health centers	Neutral silver finish suits clinical public environments without aesthetic conflict
Emergency department observation areas	Stable rigid frame accommodates patients for extended seated stays
Public medical service halls	Three-seat configuration maximizes seating capacity per linear floor space
Vaccination and blood collection centers	Smooth non-porous surfaces meet clinical hygiene requirements for frequent cleaning
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MIF-3S-MTL-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MIF-3S-MTL-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MIF-3S-MTL-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Yaqi Furniture model MIF-3S-MTL-01 is a purpose-built 3-seater metal medical infusion tandem waiting chair, engineered to meet the rigorous demands of high-traffic clinical public settings. Designed with a clean, linear fixed tandem beam layout, the unit measures 1900 x 730 x 1030 mm, with a neutral silver finish that blends seamlessly into sterile, functional environments. Each seating position is defined by rigid welded metal dividers to establish clear personal space, paired with fixed curved outboard armrests with smoothly rounded polished edges for stable support. The perforated backrest panels promote consistent air circulation for seated users, while the open frame structure creates unobstructed access for routine cleaning. The chair’s core support structure is constructed from welded 60 x 30 x 1.5 mm cold-rolled steel tubing, with seat and backrest panels formed from 6 mm cold-rolled steel, featuring a solid seat surface and perforated back. All metal components undergo acid pickling, phosphating, and high-temperature electrostatic powder coating to resist wear from regular clinical use. Each seat is fitted with a 90 mm thick finished seat cushion and 70 mm thick padded backrest, with a 240 mm tall dedicated lumbar support zone and 540 mm of clear width between armrests for accessible, comfortable seating. Integrated IV support includes three telescopic polished 12 mm diameter stainless steel rods, one aligned per seat, each fitted with dual top hooks to hold infusion lines without separate, cluttering standalone IV stands. Leveling feet with zinc-plated steel stems and non-slip rubber bases offer 15 mm of adjustment to maintain stable placement on uneven floors, with all fasteners made from corrosion-resistant internal hex galvanized steel bolts. Each seat supports a 150 kg static load, for a total unit static load capacity of 450 kg across three occupants, with a 10-year design service life. The chair’s surfaces are compatible with unlimited wipe-down disinfection cycles, with smooth non-porous finishes that meet strict clinical hygiene standards. The unit is ideal for hospital outpatient infusion areas, clinic waiting and treatment zones, community health centers, emergency department observation areas, public medical service halls, and vaccination and blood collection centers, where its three-seat configuration maximizes seating capacity per linear foot of floor space to support high daily patient turnover. Procurement teams should note the unit ships as one set across two cartons, requiring 40 minutes of on-site assembly per set. Packaged sets weigh 23 kg total, with a total carton volume of 0.26 m³, allowing 135 sets to fit in a 20GP container at 85% space utilization. The free-standing design with adjustable leveling feet eliminates the need for permanent floor anchoring where flexible space configuration is required.

3-Seater Metal Medical Infusion Tandem Waiting Chair with IV Hooks Specifications
