Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions (W×D×H) | 1750 × 650 × 800 mm | |
|---|---|---|
| Single seat width | 520 mm | |
| Seat depth per position | 480 mm | |
| Seat height from floor | 430 mm | |
| Backrest height above seat | 370 mm | |
| Armrest height above seat | 220 mm | |
| Support beam outer diameter | 76 mm | |
| Leg base spread (outer width per end frame) | 700 mm | |
| Adjustable foot diameter | 50 mm | |
| Seat panel thickness | 1.5 mm | |
| Backrest panel thickness | 1.2 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Product net weight | 32 kg | |
|---|---|---|
| Static load per seat | 150 kg | |
| Total uniform static load for full bench | 450 kg | |
| Recommended occupancy | 3 adults | |
| Floor contact static stability load | 110 kg | |
| Durability cycle rating for frame connections | 50000 load cycles | |
| Surface abrasion resistance | 5000 rub cycles | |
| Floor contact static stability resistance | 120 N | |
| Corrosion resistance rating | 48 hours neutral salt spray resistance | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery

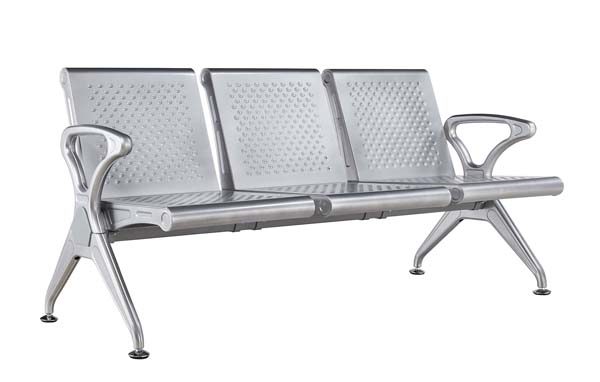

| Seat panels | 201 stainless steel with perforated embossed anti-slip texture, brushed finish | |
|---|---|---|
| Backrest panels | 201 stainless steel with uniform punched hole ventilation pattern, brushed finish | |
| Central support beam | Thick-walled stainless steel round tubular section, welded joint connections between seat positions | |
| Armrests | Cast or formed stainless steel with smooth rounded polished edges, ergonomic open-loop shape | |
| End support frames | Die-cast or formed stainless steel splayed leg design, reinforced gusset at beam connection | |
| Leveling feet | Injection-molded nylon with rubber anti-slip base, threaded adjustable stem for height correction | |
| Surface finish | Uniform brushed stainless steel grain, polished edge radii to eliminate sharp corners | |
| Connection hardware | Stainless steel 304 grade bolts and lock nuts for permanent, corrosion-resistant assembly | |
| Anti-slip seat texture | Embossed diagonal raised rib pattern across seat surface to prevent user sliding during extended sitting | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm |
Adjustment / rotation / tilt / mobility / storage features
| Fixed gang seating configuration | 3 individual divided seating positions separated by narrow raised dividers to prevent cross-occupancy slouching | |
|---|---|---|
| Ventilated seat/back design | Uniform perforated punched holes across all seat and back panels to promote air circulation and reduce heat buildup during extended sitting | |
| Integrated end armrests | Dual end-mounted ergonomic armrests to provide stable support and defined entry/exit points at each end of the bench | |
| Adjustable floor leveling | Threaded adjustable feet on each of the four leg ends to compensate for uneven hard floors and eliminate rocking during use | |
| Fixed non-reclining structure | Rigid welded and bolted frame with no moving parts, tilt mechanisms, or adjustable components to minimize maintenance and vandalism risk | |
| Floor-ready installation compatibility | Pre-drilled foot plates for optional permanent anchor bolting to concrete or hard flooring to prevent unauthorized movement | |
| Easy sanitation surface design | Smooth non-porous stainless steel surfaces with no fabric, foam, or seams to allow quick disinfection and spill cleanup | |
| Permanent floor anchor compatibility | Pre-drilled 8 mm mounting holes on each foot plate for optional anchor bolting to concrete or terrazzo hard flooring to prevent unauthorized movement or tipping | |
| Anti-entrapment design | 12 mm maximum gap between all adjacent panels and structural components to prevent finger entrapment for child users in public family waiting areas | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 1 | |
|---|---|---|
| Shipping carton dimensions (L×W×H) | 1800 × 700 × 200 mm | |
| Gross shipping weight | 37 kg | |
| Shipping volume per unit | 0.252 CBM | |
| On-site assembly time | 20 minutes | |
| 20ft GP container loading quantity | 105 units | |
| 40ft HQ container loading quantity | 260 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
Recommended spaces / users / usage modes
| Transit terminal waiting areas | Suitable for airport, railway, bus terminal, and metro station waiting zones due to durable all-metal construction and high-occupancy durability | |
|---|---|---|
| Medical and healthcare facilities | Ideal for hospital outpatient halls, clinic waiting rooms, and emergency department reception areas, as non-porous surfaces support repeated disinfection protocols | |
| Public service and government offices | Appropriate for tax offices, license centers, bank lobbies, and municipal service waiting areas, providing formal, durable seating for visitors | |
| Educational institution common areas | Suitable for school administration lobbies, campus service centers, library waiting zones, and student health centers, with vandal-resistant metal construction | |
| Commercial and retail public spaces | Usable in shopping mall customer service areas, cinema lobbies, supermarket entry zones, and bank ATM vestibules, with compact footprint for high-capacity seating in narrow spaces | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139 | 2013 Non-domestic seating - Strength, durability and safety requirements: applies to heavy-duty public seating load and stability acceptance | |
|---|---|---|
| EN 13722 | 2004 Furniture - Seating - Test methods for the determination of stability: applies to tip-resistance testing for unattended public installation |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for metal furniture | applies to structural strength, surface finish quality, and dimensional tolerance acceptance for bulk procurement | |
|---|---|---|
| GB 28007-2011 Safety requirements for children's furniture | applies to gap size limits and edge radius requirements for public seating accessible to child users | |
| GB/T 10357.3-2013 Furniture mechanical performance test for seating | applies to static load and durability cycle test acceptance criteria |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for metal furniture: applies to structural strength, surface finish quality, and dimensional tolerance acceptance for bulk procurement; 2. GB 28007-2011 Safety requirements for children's furniture: applies to gap size limits and edge radius requirements for public seating accessible to child users; 3. GB/T 10357.3-2013 Furniture mechanical performance test for seating: applies to static load and durability cycle test acceptance criteria; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
