Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1750 x 680 x 820 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net weight per unit | 28 kg | |
|---|---|---|
| Static load per seat | 150 kg | |
| Total static load capacity | 450 kg | |
| Recommended maximum user count | 3 | |
| Seat surface impact resistance | 10000 cycles | |
| Frame corrosion resistance | Grade 4 | |
| Floor contact anti-slip pad diameter | 50 mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back panels | Integral-skin polyurethane, 12mm thick | |
|---|---|---|
| Main support beam | 2.0mm thick rectangular steel tube, chrome plated | |
| Armrests | 1.8mm thick die-cast aluminum alloy, polished chrome finish | |
| Support legs | 2.5mm thick curved steel, chrome plated | |
| Seat-to-frame connectors | Powder-coated steel brackets | |
| Floor protection pads | Non-marking nitrile rubber | |
| Surface treatment | Triple-layer chrome plating on metal components | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel | |
| Five-star Base Material Thickness | Metal base wall 3.5 mm; diameter 700 mm |
Adjustment / rotation / tilt / mobility / storage features

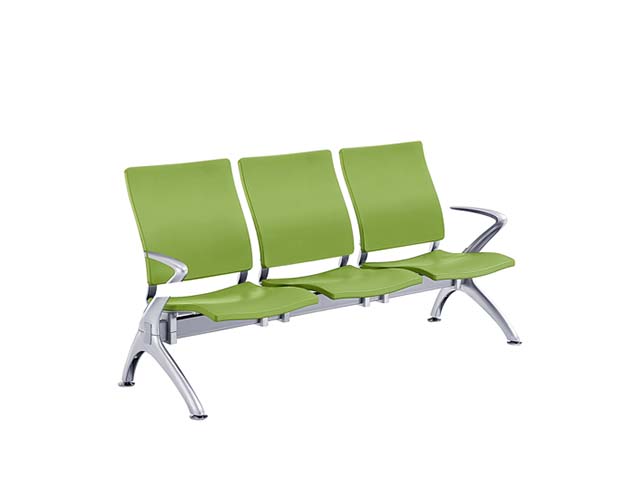

| Fixed gang seating configuration | Three contoured individual seats mounted on a shared continuous support beam | |
|---|---|---|
| Contoured ergonomic seat design | Mild concave seat pan and gently curved backrest to support upright seated posture | |
| End-position armrests | Curved integrated armrests at both outer ends of the bench for seated support | |
| Floor-mounted installation compatibility | Pre-drilled holes in leg bases allow permanent anchoring to concrete or tile flooring | |
| Easy-clean non-porous surface | Smooth PU seat and back surfaces resist liquid absorption and allow wipe-down cleaning | |
| Anti-tip splayed leg design | Outward-angled legs increase base footprint to reduce tipping risk under uneven load | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Shipping carton dimensions | 1800 x 730 x 280 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Hospital outpatient waiting areas | Easy-clean durable surface suitable for high daily foot traffic and frequent disinfection | |
|---|---|---|
| Airport and railway station waiting zones | High-load capacity and fixed stable structure for continuous heavy public use | |
| Office reception and lobby areas | Neat professional appearance for guest waiting spaces adjacent to reception desks | |
| Bank and public service hall queuing areas | Fixed gang configuration directs orderly queuing and reduces unauthorized rearrangement | |
| Clinic and healthcare facility waiting rooms | Non-porous PU surface allows disinfection between patient use to support hygiene requirements | |
| School administration public waiting areas | Robust construction resists heavy use from student and visitor traffic | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating, applicable to public waiting area load requirements | |
|---|---|---|
| EN 1022:2018 | Furniture - Seating - Determination of stability, applicable to anti-tip verification of gang seating | |
| EN 13722:2004 | Furniture - Test methods for surface finishes of metal furniture, applicable to chrome plating durability |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to structural stability and finish quality of this waiting bench | |
|---|---|---|
| GB/T 35607-2017 | Green product evaluation standard for furniture, applicable for low-VOC material requirements for public indoor use | |
| GB 28007-2011 | Furniture mechanical and structural safety requirements, applicable to static load and anti-tip performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to structural stability and finish quality of this waiting bench; 2. GB/T 35607-2017: Green product evaluation standard for furniture, applicable for low-VOC material requirements for public indoor use; 3. GB 28007-2011: Furniture mechanical and structural safety requirements, applicable to static load and anti-tip performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
