PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	720 × 1250 × 1100 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	28 kg
Maximum static user weight capacity	150 kg
IV pole maximum hanging load	5 kg
Recommended maximum continuous seating duration	8 hours
Upholstery stain resistance rating	Grade 4
Frame static load test capacity	300 kg
Recline angle range (upright to full recline)	120 degrees
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Load-bearing frame	1.5mm thick cold-rolled steel with off-white powder-coated finish
Seat, backrest and legrest padding	High-density polyurethane foam, 40kg/m³ density
Upholstery covering	Medical-grade waterproof teal polyurethane vinyl
Armrest top pads	Padded vinyl matching seat upholstery
Armrest side guards	Powder-coated steel rail enclosures
IV pole construction	Chrome-plated steel tube with 2 dual-hook hangers
Foot glides	Non-slip rubber floor protectors
Recline mechanism	Steel locking hinge with position detents
Neck support pillow	Contoured padded vinyl attached to top of backrest
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Backrest recline adjustment	Manual ratchet lock with 4 fixed positions between upright and 120-degree recline
Legrest operation	Synchronized extension with backrest recline, locks in matching positions
IV pole adjustment	Telescoping height adjustment with 5 set positions, hooks rotate 360 degrees
Armrest function	Left armrest drops down 90 degrees to assist patient side transfer
Disinfection compatibility	Smooth non-porous upholstery tolerates 75% alcohol and quaternary disinfectant wipes
Position locking	Automatic lock engages when backrest is set to desired angle, release lever under seat
Floor protection	Non-marking rubber glides prevent floor scuffing on tile or vinyl clinical flooring
Accessory mounting	IV pole mounts permanently to rear right frame for secure attachment
Overall dimensions (full recline with legrest extended)	720 x 1250 x 1100 mm
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital outpatient infusion centers	Provides comfortable reclined seating for patients receiving IV therapy
Clinic treatment rooms	Compact footprint fits standard clinical room layouts with easy patient access
Dialysis centers	Supports extended treatment sessions with padded support and recline positions
Emergency department observation areas	Durable construction withstands high-traffic clinical use
Community health service stations	Functional, easy-to-clean design suitable for public healthcare settings
Blood donation centers	Reclining position supports donor comfort during phlebotomy and recovery
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.4 Public and Lounge Seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MED-INF-REC-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MED-INF-REC-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MED-INF-REC-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

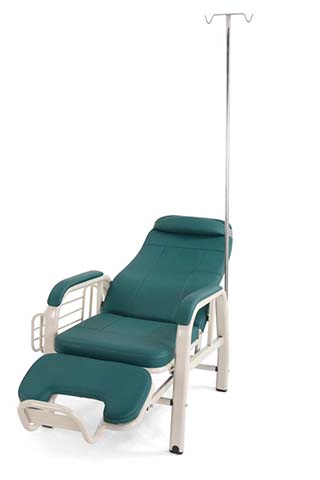

The Reclining Medical Infusion Chair with Integrated IV Pole, model MED-INF-REC-001, is a purpose-built unbranded clinical seating solution designed for public healthcare environments. In its upright configuration, the chair measures 720 x 800 x 1100 mm, with a 540 mm clear width between armrests, a contoured padded neck pillow affixed to the backrest top, and a streamlined profile that supports efficient layout in crowded clinical spaces. A fixed chrome-plated steel IV pole is integrated directly into the frame, eliminating the need for separate standalone pole hardware and reducing tripping hazards in patient areas.
The chair’s load-bearing structure uses 1.5mm thick cold-rolled steel finished with a durable off-white powder coating, with a frame static load test capacity of 300 kg and a maximum static user weight capacity of 150 kg. Seat, backrest, and synchronized legrest cushions use 40kg/m³ high-density polyurethane foam, with a 90 mm thick seat cushion, 70 mm thick backrest padding, and a 240 mm tall dedicated lumbar support zone. All padded surfaces are covered in medical-grade waterproof teal polyurethane vinyl with a Grade 4 stain resistance rating, with matching padded vinyl armrest tops and powder-coated steel armrest side guards. The integrated IV pole is constructed from chrome-plated steel tubing fitted with two dual-hook hangers, rated for a maximum hanging load of 5 kg. Non-slip, non-marking rubber foot glides protect tile and vinyl clinical flooring from scuffs and damage, while a steel locking hinge with position detents operates the recline mechanism.
Functional features are tailored to clinical workflow and patient comfort: a manual ratchet lock system allows four fixed backrest positions spanning 120 degrees from upright to full recline, with the legrest extending in synchronized lockstep with backrest movement; an automatic lock engages at the selected angle, operable via a release lever mounted under the seat. The telescoping IV pole offers five set height positions, with 360-degree rotating hooks for flexible IV line placement. The left armrest drops 90 degrees to support smooth side patient transfers, and the smooth non-porous upholstery is compatible with 75% alcohol and quaternary disinfectant wipes for rapid, thorough cleaning between users. The chair supports a maximum continuous seating duration of 8 hours, making it suitable for extended care sessions.
This model is appropriate for hospital outpatient infusion centers, clinic treatment rooms, dialysis centers, emergency department observation areas, community health service stations, and blood donation centers, balancing durable high-traffic performance with patient comfort. For procurement, note that each unit ships across two cartons, requires 40 minutes of assembly per set, and 135 sets can be loaded in a 20GP container at 85% space utilization, with a total packaged volume of 0.26 m³ per set.

Reclining Medical Infusion Chair with Integrated IV Pole Specifications
