PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 740 × 850 mm
Per-seat usable width	500 mm
Seat height from floor	450 mm
Seat usable depth	505 mm
Backrest height above seat	400 mm
Armrest height above floor	620 mm
Gap between adjacent seats	79 mm
End leg splay width	680 mm
Floor glide diameter	50 mm
Beam cross-section size	80 x 40 mm
Seat pan front edge radius	15 mm
Perforation hole diameter	6 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat static load capacity	150 kg
Net weight of fully assembled unit	42 kg
Recommended maximum user weight per seat	120 kg
Surface corrosion resistance life	5 years
Weld joint static failure load	2000 N
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability Reference	Acceptance target 30000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back panels	1.5mm perforated cold-rolled steel, silver powder coated
Support beam frame	2.0mm thick Q235 cold-rolled rectangular steel tube, anti-rust treated
Outboard armrests	1.2mm thick die-cast aluminum alloy, polished silver finish
Leg supports	Die-cast aluminum alloy splayed legs, chrome-plated finish
Connection brackets	4mm thick stamped steel plates, powder coated
Floor glides	Non-slip adjustable rubber pads with steel threaded stems
Surface treatment	Electrostatic polyester powder coating, lead-free, deburred edges
Weld joints	CO2 shielded arc welding, smooth ground finish, no exposed sharp edges
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat structure	Fixed rigid seat pans with rolled front edge, no recline or height adjustment
Backrest function	Fixed slightly angled perforated backrests for upright support and breathability
Armrest function	Curved outboard armrests for entry/exit support, no intermediate dividers between seats
Leveling function	Threaded adjustable rubber glides for stable placement on uneven hard floors
Configuration flexibility	Modular beam design compatible with 2/4/5 seat extensions by swapping beam length
Accessory compatibility	Pre-drilled mounting points for optional add-on PU seat cushions or side tables
Ventilation performance	Uniform perforated hole pattern on seats and backs to reduce heat buildup
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Airport terminal waiting areas	Durable metal construction withstands high daily passenger traffic
Hospital and clinic waiting zones	Perforated metal surface allows easy cleaning and disinfection
Bank and service hall reception areas	Sleek silver finish complements formal public service interior design
Railway and bus station concourses	Fixed rigid structure resists vandalism and heavy impact in high-traffic transit spaces
School administration and lobby areas	Low-maintenance metal finish reduces upkeep cost for high-use student areas
Indoor public corridor rest points	Compact 3-seat footprint fits narrow public walkway rest zones
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Strength, durability and safety standard for non-domestic public seating
EN 1022:2018	Seating stability test standard applicable to fixed gang bench seating

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.4 Public and Lounge Seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements applicable to metal furniture for general use
GB/T 10357.3-2013	Test standard for seating strength and durability applicable to public seats
GB 18584-2001	Limit of harmful substances applicable to indoor furniture metal finishes

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements applicable to metal furniture for general use;
2. GB/T 10357.3-2013: Test standard for seating strength and durability applicable to public seats;
3. GB 18584-2001: Limit of harmful substances applicable to indoor furniture metal finishes;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WB-3S-PM001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WB-3S-PM001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WB-3S-PM001Open Export Tool

Quick Actions

Post an RFQ

Product Description

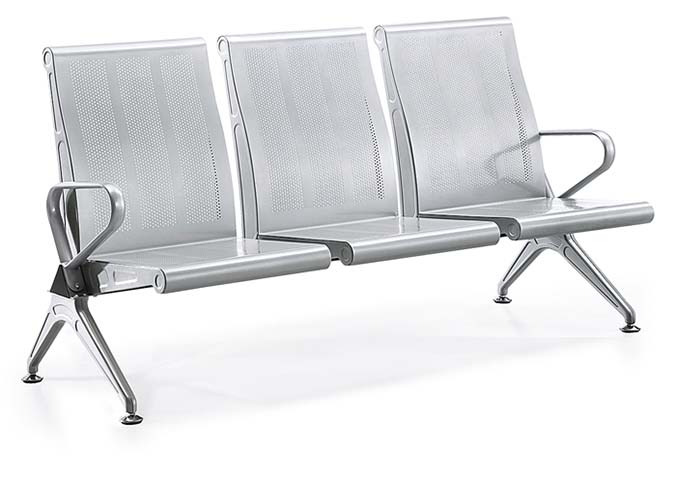

The 3-Seat Perforated Metal Public Waiting Beam Seating, model WB-3S-PM001, is an unbranded waiting area beam seating solution built for consistent performance across shared public environments. It features a linear, streamlined layout with three individual seat positions bookended by polished silver outboard armrests, with no intermediate dividers between seats to support flexible, open seating access. The cohesive silver finish across all metal components creates a sleek, understated visual profile that aligns with functional public space design standards. Its overall dimensions measure 1800 x 740 x 850 mm, with each seat offering 500 mm of usable width, 505 mm of usable depth, and a 450 mm seat height from the floor, paired with a 400 mm tall slightly angled backrest and 620 mm high armrests for consistent ergonomic support. Construction centers on heavy-duty metal components: 1.5mm perforated cold-rolled steel forms the silver powder-coated seat and back panels, mounted to a 2.0mm thick anti-rust treated Q235 cold-rolled rectangular steel support beam. Splayed, chrome-plated die-cast aluminum alloy legs anchor the unit, fitted with non-slip adjustable rubber glides with steel threaded stems for stable placement. 1.2mm thick polished die-cast aluminum alloy forms the outboard armrests, while 4mm thick powder-coated stamped steel plates connect core components, with CO2 shielded arc welds ground smooth to eliminate exposed sharp edges. All surfaces use lead-free electrostatic polyester powder coating, with fully deburred edges for user safety. Internal seat support uses a 14 mm bent plywood base, paired with seat foam of 45 kg/m³ density and 65% rebound, and 38 kg/m³ density back foam for baseline comfort. The fixed, rigid seat pans include a rolled front edge, with no recline or height adjustment, and the perforated seat and back surfaces enable consistent ventilation to reduce heat buildup during extended use. The curved outboard armrests provide stable support for entry and exit, while the modular beam design supports extension to 2, 4, or 5 seat configurations by swapping the support beam length. Pre-drilled mounting points accommodate optional PU seat cushions or side tables, and the adjustable glides allow stable placement on uneven hard floors. Each seat supports a 120 kg recommended maximum user weight, with 150 kg per-seat static load capacity, 2000 N weld joint static failure load, and 5 years of surface corrosion resistance for long-term high-traffic use. This seating is well-suited for airport terminal waiting areas, hospital and clinic waiting zones, bank and service hall reception areas, railway and bus station concourses, school administration and lobby areas, and indoor public corridor rest points, where its easy-to-clean perforated surface, vandal-resistant fixed structure, and low-maintenance finish reduce long-term upkeep demands. Procurement teams should note the unit ships in two cartons per set, requires 40 minutes of assembly time per unit, and has a fully assembled net weight of 42 kg. The fixed non-reclining, all-metal construction is purpose-built for high-traffic public use, with no soft upholstered surfaces that trap debris, and the compact 3-seat footprint fits narrow walkway rest zones without obstructing circulation paths.

3-Seat Perforated Metal Public Waiting Beam Seating Specifications
