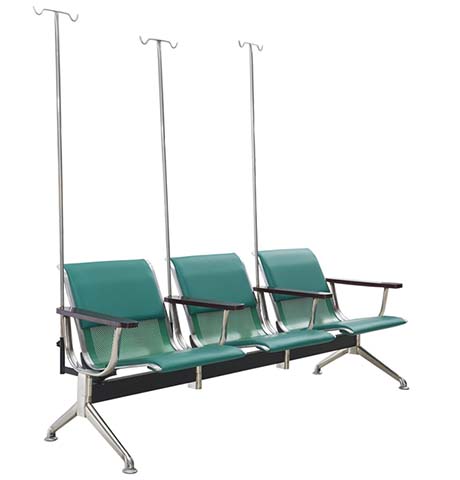

Product supplier3-Seater Ganged Medical Infusion Waiting Chair with IV Poles, 60x30mm rectangular steel tube, 2.0mm wall thickness, black powder coat
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1760 × 720 × 1900 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity for full 3-seat unit | 450 kg | |
|---|---|---|
| Net weight of fully assembled unit | 50 kg | |
| Recommended daily user throughput capacity | 120 users | |
| Surface disinfection compatibility | Resistant to 1000ppm chlorine-based disinfectant | |
| Frame anti-corrosion service life | 10 years | |
| Standard manufacturer warranty period | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main support beam | 60x30mm rectangular steel tube, 2.0mm wall thickness, black powder coat | |
|---|---|---|
| Seat and back panels | 6mm rigid molded teal polymer, smooth non-porous surface | |
| Frame and leg structure | 1.5mm thick chrome-plated round steel tube, polished mirror finish | |
| IV support poles | 1.0mm thick polished stainless steel tube, dual top hooks | |
| Armrest surfaces | 10mm thick dark brown rigid polymer cap mounted on chrome steel brackets | |
| Floor mounting feet | Chrome-plated steel base with non-slip rubber pad, adjustable leveling | |
| Seat support brackets | 1.2mm thick chrome-plated steel formed brackets connecting panels to beam | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel | |
| Five-star Base Material Thickness | Metal base wall 3.5 mm; diameter 700 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat configuration | Fixed ganged 3-seat linear layout on shared support beam, no recline or rotation | |
|---|---|---|
| IV pole function | One dedicated pole per seat, height-adjustable with dual curved hooks for IV bags | |
| Floor installation | Y-shaped splayed outrigger legs with pre-drilled feet for permanent floor anchoring | |
| Cleaning access | Gap-sealed molded surfaces without fabric crevices for full wipe-down disinfection | |
| Armrest function | Fixed intermediate armrests between all seats to define individual seating positions | |
| Structural stability | Three support points (two end Y-legs, one intermediate leg) to prevent beam deflection | |
| Surface drainage | Contoured molded seat surface with slight front slope to prevent liquid pooling | |
| Backrest recline angle from vertical | 120 degrees | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Hospital outpatient infusion rooms | Provides dedicated IV hanging support and easy-clean surfaces for transfusion waiting | |
|---|---|---|
| Community health clinic waiting areas | High-traffic durable ganged seating for high daily patient volume with low maintenance | |
| Emergency department observation zones | Stable floor-mounted seating with clear seating separation for short-term patient monitoring | |
| Vaccination and blood collection centers | Wipe-down non-porous surfaces support repeated disinfection between patients | |
| Rural medical station waiting spaces | Corrosion-resistant chrome frame withstands frequent cleaning and humid environments | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating, applicable for public waiting area performance | |
|---|---|---|
| EN 1022:2018 | Furniture - Seating - Determination of stability, applicable to verify anti-tipping performance for ganged seating | |
| EN 13722:2004 | Furniture - Test methods for assessment of surface resistance to cold liquids, applicable for disinfection chemical resistance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to frame strength and stability verification | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture, applicable for armrest material emission testing | |
| GB/T 10357.3-2013 | Furniture mechanical test for seating strength and durability, applicable for seat/back static and fatigue load testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame strength and stability verification; 2. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture, applicable for armrest material emission testing; 3. GB/T 10357.3-2013: Furniture mechanical test for seating strength and durability, applicable for seat/back static and fatigue load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
