Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1780 x 680 x 800 mm | |
|---|---|---|
| Seat height from floor | 450 mm | |
| Individual seat width | 540 mm | |
| Seat depth | 480 mm | |
| Backrest height above seat | 400 mm | |
| Armrest height above seat | 230 mm | |
| Floor footprint length | 1750 mm | |
| Frame leg spread width | 650 mm | |
| Seat panel thickness | 30 mm | |
| Back panel thickness | 25 mm | |
| Floor clearance under seat | 320 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Product net weight | 28 kg | |
|---|---|---|
| Static load capacity per seat | 150 kg | |
| Total rated static load for full bench | 450 kg | |
| Suitable number of users | 3 | |
| PU panel abrasion resistance | 50000 cycles | |
| Frame static load safety factor | 2.5 | |
| Adjustable foot leveling range | 15 mm | |
| Surface corrosion resistance rating | 48 hours salt spray | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery

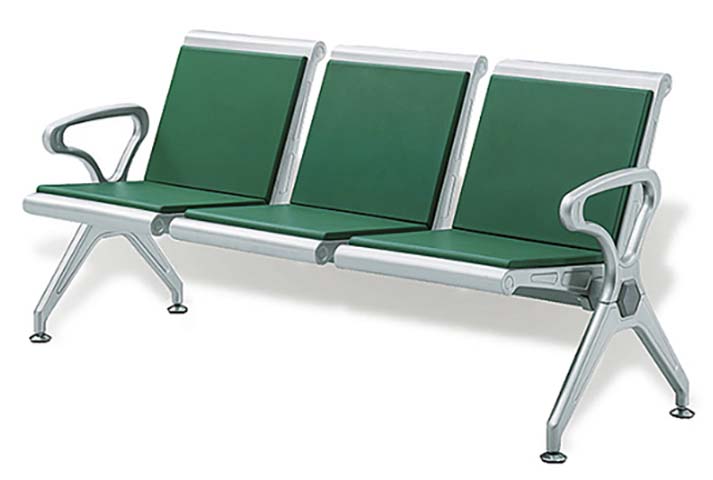

| Seat support beam | 2.0 mm thick cold-rolled steel tube, silver powder coated | |
|---|---|---|
| Seat panel | Rigid polyurethane (PU) integral skin foam over steel inner plate, dark green | |
| Back panel | Rigid polyurethane (PU) integral skin foam over steel inner plate, dark green | |
| Armrests | Die-cast aluminum alloy with silver powder coated finish | |
| Leg assemblies | 1.8 mm thick die-cast aluminum alloy, silver powder coated | |
| Frame connecting hardware | Grade 8.8 zinc-plated steel bolts and rivets | |
| Leveling feet | Zinc-plated steel threaded stem with non-slip rubber base pad | |
| Armrest support brackets | 1.5 mm thick steel bracket welded to seat beam | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
| Floor mounting provision | Threaded leveling feet with pre-drilled floor anchor holes | |
|---|---|---|
| Fixed rigid seating | Permanently upright non-reclining seat and back positions | |
| Integrated armrest separation | Curved end and intermediate armrests (end units only) define individual seating spaces | |
| Under-seat clear access | Open cantilevered frame under seats enables full floor cleaning with no enclosed obstructions | |
| Corrosion resistant finish | Powder coated silver finish on all metal components resists scuffs, routine cleaning chemicals, and light moisture | |
| Floor unevenness compensation | Adjustable threaded feet rotate to correct for 15mm of floor slope or unevenness | |
| Impact resistant panel design | Rigid PU panels resist impact damage from luggage, carts, and heavy dropped items typical in transit areas | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 1 carton | |
|---|---|---|
| Shipping carton dimensions | 1820 x 720 x 220 mm | |
| Gross shipping weight | 32 kg | |
| Shipping volume per unit | 0.29 CBM | |
| Assembly time per unit | 40 minutes | |
| 20ft GP container loading quantity | 90 units | |
| 40ft HQ container loading quantity | 215 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
Recommended spaces / users / usage modes
| Hospital clinic waiting areas | Rigid easy-to-clean PU surfaces and heavy-duty frame withstand high daily patient and visitor traffic | |
|---|---|---|
| Airport, railway and bus station transit waiting zones | Fixed non-tipping design and 3-seat configuration maximize linear seating capacity in high-footfall transit corridors | |
| Government office and bank public service halls | Neutral green and silver finish fits formal public service environments, individual seat separation improves passenger comfort | |
| Outpatient and emergency department waiting zones | Stain and impact resistant surfaces allow frequent disinfection without surface degradation | |
| School administration and campus service waiting areas | High static load rating accommodates users of all sizes, open under-seat design reduces accumulated litter and improves cleaning efficiency | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Applicable European standard for non-domestic seating strength, durability and stability, recommended for commercial public area procurement | |
|---|---|---|
| EN 13761:2002 | Applicable standard for public transport terminal waiting seating, recommended for use in airport, bus station and clinic applications |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3326-2016 | Applicable standard for furniture table, chair and bench dimensional tolerances, recommended for acceptance inspection of finished product dimensions | |
|---|---|---|
| GB/T 10357.3-2013 | Applicable standard for mechanical strength testing of chairs and stools, recommended for structural load and durability verification | |
| GB 18584-2001 | Applicable standard for indoor decoration material furniture harmful substance limits, recommended for formaldehyde and heavy metal content acceptance |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applicable standard for furniture table, chair and bench dimensional tolerances, recommended for acceptance inspection of finished product dimensions; 2. GB/T 10357.3-2013: Applicable standard for mechanical strength testing of chairs and stools, recommended for structural load and durability verification; 3. GB 18584-2001: Applicable standard for indoor decoration material furniture harmful substance limits, recommended for formaldehyde and heavy metal content acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
