PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 768 × 800 mm
Single seat width	580 mm
Seat depth	480 mm
Seat height above floor	480 mm
Backrest height above seat	600 mm
Armrest height above seat	250 mm
Support beam wall thickness	2.0 mm
End leg/armrest steel thickness	1.8 mm
Leveling foot diameter	60 mm
Seat panel molded thickness	30 mm
Underseat clearance height	300 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per unit	45 kg
Static load per seat	260 kg
Total static load capacity	900 kg
Seating durability cycle rating	50000 cycles
Recommended maximum user weight per seat	150 kg
Seat surface abrasion resistance	50000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and backrest units	Integral molded teal rigid polymer/PU, 30mm thick with internal steel insert
Main support beam	2.0mm thick cold-rolled steel, anti-rust treated, powder coated gray
End armrests	1.8mm thick cold-rolled steel, polished chrome plated finish
Leg assemblies	1.8mm thick cold-rolled steel, chrome plated with split splayed design
Leveling feet	Chrome-plated steel base with non-slip nylon contact pad
Seat mounting brackets	Galvanized steel brackets with corrosion-resistant fasteners
Surface finish on metal parts	Multi-layer chrome plating with anti-oxidation seal
Edge treatment	Rounded waterfall front seat edge with zero sharp corners
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Fixed linear 3-seat layout with no middle armrests, maximizing seating density
Leveling adjustment	Rotating disc feet adjust up to 15mm to compensate for uneven floors
Floor mounting compatibility	Pre-drilled foot plates accept M10 expansion bolts for permanent fixed installation
Cleaning access	Open underseat structure allows full floor access for mopping and disinfection
Seating ergonomics	Contoured backrest angled 10 degrees backward with waterfall seat edge to reduce leg pressure
Stability design	Splayed four-point leg layout creates 600mm wide support base to prevent tipping
Corrosion resistance	Chrome-plated exposed metal parts resist routine disinfection and high-humidity environments
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Airport terminal waiting zones	High-traffic durable seating with easy-clean surfaces for continuous public use
Hospital and clinic waiting areas	Disinfectant-compatible surfaces support infection control requirements
Bank and government service halls	Fixed stable configuration prevents rearrangement and reduces maintenance
Bus and train station waiting platforms	Corrosion-resistant frame withstands high foot traffic and frequent cleaning
Office reception and visitor areas	Streamlined chrome/teal aesthetic matches modern public space design
Indoor public concourse spaces	Open underseat design supports routine cleaning and crowd flow management
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Furniture – Strength, durability and safety for non-domestic seating, applicable to public waiting area use
EN 13722:2004	Furniture – Test methods for seating stability, applicable to anti-tip performance verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.4 Public and Lounge Seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3325-2017	General technical requirements for metal furniture, applicable to structural safety and finish durability
GB/T 6461-2002	Rating of corrosion resistance for metallic coatings, applicable to chrome-plated frame performance
GB 18584-2001	Limit of harmful substances in furniture, applicable to indoor use material emission limits
Salt spray resistance rating	Grade 10 per GB/T 6461

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3325-2017: General technical requirements for metal furniture, applicable to structural safety and finish durability;
2. GB/T 6461-2002: Rating of corrosion resistance for metallic coatings, applicable to chrome-plated frame performance;
3. GB 18584-2001: Limit of harmful substances in furniture, applicable to indoor use material emission limits;
4. Salt spray resistance rating: Grade 10 per GB/T 6461;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PUB-WT-3S-TL-CHR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PUB-WT-3S-TL-CHR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PUB-WT-3S-TL-CHROpen Export Tool

Quick Actions

Post an RFQ

Product Description

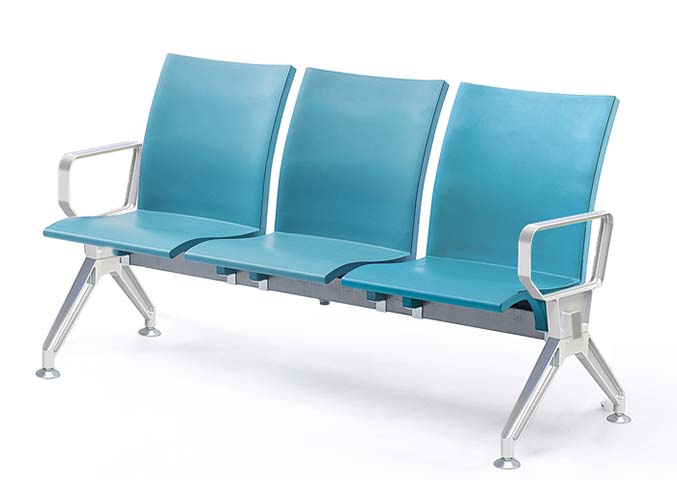

The 3-Seat Beam-Mounted Public Waiting Gang Chair with Teal Molded Seats and Chrome Frame is a streamlined, high-durability fixed seating solution designed for demanding public environments. Visually, it features a cohesive linear form with three contoured teal seat and back units set against a polished chrome exposed metal structure, finished with zero sharp corners and rounded waterfall front seat edges for a clean, approachable aesthetic. The fixed 3-seat layout omits middle armrests to maximize seating density, anchored by a splayed four-point leg arrangement that creates a wide, stable support base. Each unit is built for long-term heavy use. Seat and back components are 30mm thick integral molded teal rigid polymer/PU with internal steel inserts, mounted to a 2.0mm thick anti-rust treated gray powder-coated cold-rolled steel support beam via galvanized steel brackets and corrosion-resistant fasteners. Exposed metal elements, including end armrests, leg assemblies, and leveling foot bases, feature multi-layer chrome plating with anti-oxidation seal, while legs use a split splayed design fitted with rotating disc leveling feet that adjust to compensate for uneven floors, topped with non-slip nylon contact pads. Pre-drilled foot plates accommodate permanent floor mounting with M10 expansion bolts. Functional design prioritizes public use needs: contoured backrests angle 10 degrees backward to pair with the waterfall seat edge and reduce leg pressure for seated users, while the open underseat structure allows unobstructed access for mopping and disinfection. The smooth molded seat surfaces resist abrasion and stand up to routine disinfection and high-humidity conditions, with a rated static load per seat, 50,000-cycle seating durability, and abrasion resistance to support continuous high-traffic use. This chair is suited for airport terminal waiting zones, hospital and clinic waiting areas, bank and government service halls, bus and train station platforms, office reception areas, and indoor public concourses, where its stable fixed configuration prevents unauthorized rearrangement and reduces maintenance demands. Procurement teams should note units ship in two cartons per set, with 40 minutes of assembly required per unit, and plan for permanent installation hardware and floor preparation as needed for target site conditions.

3-Seat Beam-Mounted Public Waiting Gang Chair with Teal Molded Seats and Chrome Frame Specifications
