Automatic mm / inch conversion · Core engineering specifications

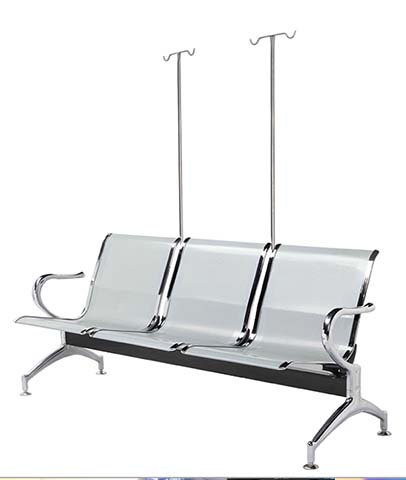

| Overall dimensions (excluding IV poles) | 1900 x 710 x 930 mm | |
|---|---|---|
| Seat height from floor | 450 mm | |
| Seat depth per position | 500 mm | |
| Seat width per individual position | 580 mm | |
| Backrest height above seat | 480 mm | |
| Fully extended IV pole height above floor | 1800 mm | |
| End armrest height above seat | 200 mm | |
| End leg splay width (front to back) | 710 mm | |
| IV pole tube diameter | 25 mm | |
| Central support beam cross-section | 60 x 30 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Total static seat surface load capacity | 300 kg | |
|---|---|---|
| Product net weight | 32 kg | |
| Recommended maximum user weight per seat | 150 kg | |
| Surface rust resistance service life (normal indoor use) | 5 years | |
| Anti-slip foot pad static friction coefficient | 0.6 | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg | |
| Caster Rolling Durability Reference | Acceptance target 30000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main frame/leg tubes | 1.5mm thick polished stainless steel round/elliptical tube | |
|---|---|---|
| Seat and back panels | 1.2mm thick perforated polished stainless steel | |
| Central horizontal support beam | 1.5mm thick black powder-coated rectangular steel tube | |
| IV poles and hooks | 1.0mm thick 201 stainless steel tube with dual chrome-plated steel hooks | |
| End armrests | 1.5mm thick curved polished stainless steel formed tube | |
| Floor contact feet | Anti-slip nitrile rubber pads with stainless steel fixing bases | |
| Edge trim on seat/back panels | 1.5mm thick black PVC edge strips | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel | |
| Five-star Base Material Thickness | Metal base wall 3.5 mm; diameter 700 mm |
Adjustment / rotation / tilt / mobility / storage features
| IV pole height adjustment | Telescoping stainless steel poles adjust between 1200mm and 1800mm above floor | |
|---|---|---|
| Seating configuration | Three divided contoured seating positions with raised metal dividers between seats | |
| Floor mounting capability | Pre-drilled foot plates allow permanent bolt fixing to hard clinic floors | |
| IV bag hanging | Two integrated poles each support dual hooks for hanging multiple infusion bags | |
| Surface cleaning compatibility | Smooth polished metal surfaces tolerate alcohol/chlorine disinfectant wiping | |
| Arm support | Curved end armrests provide stable support for patient arm positioning during infusion | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Hospital outpatient infusion rooms | Provides dedicated seating for patients receiving IV therapy with integrated bag hanging | |
|---|---|---|
| Community health service centers | Durable easy-to-clean seating for high-volume public patient waiting areas | |
| Clinic vaccination/treatment areas | Stable multi-patient seating with arm support for injection or minor procedure use | |
| Emergency department waiting zones | Heavy-duty metal construction withstands high traffic and constant daily use | |
| Dialysis center waiting areas | Fixed-height comfortable seating for extended patient stays during treatment | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture – Strength, durability and safety for non-domestic seating, applicable to public waiting use | |
|---|---|---|
| EN 10088-2:2014 | Stainless steel sheet/tube technical delivery conditions, applicable to metal component material grades |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to frame strength and stability | |
|---|---|---|
| GB/T 15102-2017 | Surface coating adhesion and corrosion resistance requirements applicable to coated steel components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame strength and stability; 2. GB/T 15102-2017: Surface coating adhesion and corrosion resistance requirements applicable to coated steel components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
