PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1810 × 680 × 930 mm
Per-seat width	600 mm
Seat height from floor	450 mm
Seat depth	480 mm
Backrest height from seat	480 mm
Armrest height from floor	620 mm
Support beam cross-section	90 x 80 mm
End leg spread width	650 mm
Floor mounting pad diameter	60 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight of assembled unit	45 kg
Static load per individual seat	150 kg
Total seating capacity	3 adults
Seating cycle durability	50000 cycles
Disinfectant compatibility	Suitable for medical-grade surface wiping
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability Reference	Acceptance target 30000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back units	One-piece molded self-skinned polyurethane, 30mm thick
Internal seat support skeleton	1.2mm thick flat steel tube + 1.0mm welded steel plate
Main support crossbeam	1.7mm wall thickness octagonal cold-rolled steel, electrostatic powder coated
End armrests	One-piece polished die-cast aluminum alloy
End support legs	Polished die-cast aluminum alloy tripod structure
Seat-to-beam connecting brackets	5.0mm thick cold-rolled steel plate, welded and powder coated
Surface finish on metal components	Anti-oxidation polished finish on aluminum, matte powder coat on steel
Floor mounting feet	Non-slip rubber-padded steel pads with expansion bolt holes
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Fixed linear 3-seat tandem layout, no intermediate armrests between seats
Installation method	Permanent floor mounting via expansion bolts through foot pads
Seat function	Fixed contoured ergonomic surface, non-reclining, non-folding, non-rotating
Surface maintenance	Non-porous seamless PU surface that wipes clean with liquid disinfectants
Structural stability	Beam-mounted design with no central intermediate legs for unobstructed foot clearance
Armrest function	Fixed looped end armrests to assist standing and seated balance
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital outpatient waiting areas	Fixed durable seating suitable for high daily foot traffic and frequent disinfection
Airport and railway station waiting halls	High-load stable seating for continuous public use with low maintenance needs
Government service hall queuing areas	Neat uniform linear seating with open under-seat space for easy cleaning
Clinic and bank customer waiting zones	Space-efficient 3-seat layout fits standard waiting zone planning dimensions
School and public facility reception areas	Sturdy construction resists impact and damage from unsupervised public use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Public seating safety standard	EN 16139:2013
Furniture surface flammability	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge and public seating standard	ANSI/BIFMA X2020
Caster and glide performance	ANSI/BIFMA X2017(glide section)

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

General furniture safety standard	GB/T 3325
Metal coating corrosion resistance	GB/T 6461
Furniture surface wear resistance	GB/T 17657
Metal component salt spray resistance	Grade 10 per GB/T 6461

Standardized tender description text

This product must meet the following technical requirements:
1. General furniture safety standard: GB/T 3325;
2. Metal coating corrosion resistance: GB/T 6461;
3. Furniture surface wear resistance: GB/T 17657;
4. Metal component salt spray resistance: Grade 10 per GB/T 6461;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WBPUG3-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WBPUG3-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WBPUG3-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

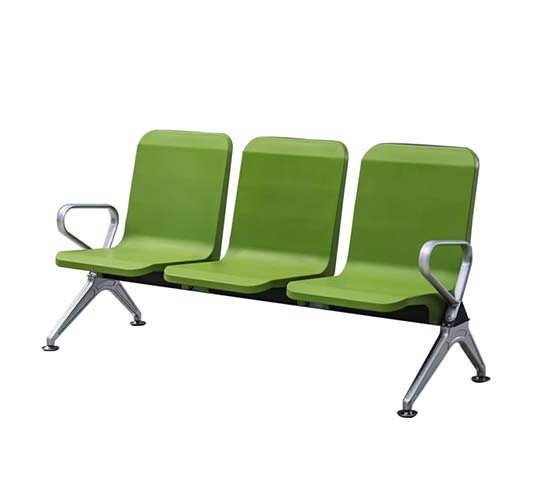

The 3-Seat Molded PU Public Waiting Beam Bench, model WBPUG3presents a streamlined, professional linear form designed for coordinated public space deployment. Its fixed tandem 3-seat layout features end-mounted armrests only, with no intermediate dividers or central support legs, creating an unbroken, neat visual line and completely unobstructed under-seat clearance that supports easy floor access. The bench measures 1810 mm wide, 680 mm deep and 930 mm tall, with evenly contoured seats and backrests paired with polished aluminum end supports that deliver a clean, institutional aesthetic suited to shared public environments. Durable, purpose-built materials form the bench’s robust structure. Each one-piece molded self-skinned polyurethane seat and back unit is 30 mm thick, with a seamless non-porous surface. Seat units integrate a 45 kg/m³ foam core with 65% rebound, while backrests use 38 kg/m³ foam, supported by an internal skeleton of 1.2 mm flat steel tube, 1.0 mm welded steel plate, and 14 mm bent plywood. The 1.7 mm wall thickness octagonal cold-rolled steel main support beam is finished with electrostatic matte powder coating, paired with polished die-cast aluminum end armrests and tripod legs with anti-oxidation finishes. 5.0 mm thick powder-coated cold-rolled steel brackets connect seats to the beam, and non-slip rubber-padded steel feet with expansion bolt holes anchor the unit to the floor, supporting a 150 kg static load per seat across 50,000 seating cycles. Fixed, non-reclining, non-folding, non-rotating contoured surfaces deliver consistent ergonomic support, with a 125° backrest angle, 450 mm seat height, and 620 mm tall end armrests that assist users with standing and seated balance. The seamless PU surface is compatible with medical-grade disinfectant wipes, simplifying routine sanitization, while the center leg-free design eliminates hidden gaps that trap debris. The bench is suited for high-traffic public settings including hospital outpatient waiting areas, airport and railway station waiting halls, government service halls, clinic and bank customer waiting zones, and school or public facility reception areas, where its space-efficient 600 mm per-seat width fits standard planning dimensions. Procurement teams should note the bench requires permanent floor mounting via expansion bolts, with a 40-minute per-set assembly time across two cartons. Shipping configurations support 135 sets per 20GP container at 85% space utilization, and the unbranded design allows flexible coordination with existing public space furniture.

3-Seat Molded PU Public Waiting Beam Bench Specifications
