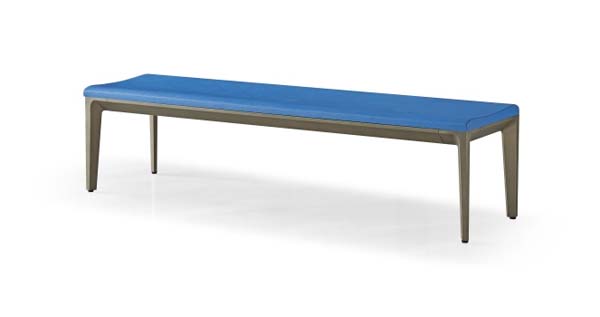

Primary source3-Seater Upholstered Metal Frame Dining Bench, Steel frame
Stock 3200; MOQ 100;; lead time 3; ref. price ¥185/
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 400 × 450 mm | |
|---|---|---|
| Seat thickness | 60 mm | |
| Leg cross-section | 30 x 50 mm | |
| Under-seat knee clearance | 390 mm | |
| Intermediate leg spacing | 900 mm | |
| Floor glide diameter | 20 mm | |
| Frame apron height | 40 mm | |
| Seat edge radius | 15 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 28 kg | |
|---|---|---|
| Total static load capacity | 300 kg | |
| Seating capacity | 3 adults | |
| Floor protection rating | Scratch-free on hard flooring | |
| Seat surface abrasion resistance | 50000 rub cycles | |
| Frame static load test | 150 kg per seat position | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Stain-resistant polyurethane faux leather, blue finish | |
|---|---|---|
| Seat core | 40mm high-density polyurethane foam | |
| Seat support base | 12mm thick plywood substrate | |
| Structural frame | 1.5mm thick powder-coated steel, bronze finish | |
| Central support leg | Welded steel tube, same finish as end frames | |
| Floor glides | Injection-molded black TPE rubber | |
| Frame joints | Welded steel connections, ground smooth finish | |
| Under-seat bracing | Transverse steel cross supports | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6 finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed seating surface | Non-reclining, non-adjustable rigid seat assembly | |
|---|---|---|
| Leveling adjustment | ±5mm adjustable height per leg via threaded glide | |
| Stacking compatibility | Non-stackable fixed frame design | |
| Easy surface cleaning | Wipe-clean non-porous upholstery surface | |
| Multi-position use | Usable on either long side of dining table | |
| Edge protection | Rounded upholstered seat edges eliminate sharp impact points | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 1850 x 450 x 150 mm | |
| Gross shipping weight | 32 kg | |
| Shipping volume CBM | 0.125 | |
| On-site assembly time | 10 minutes | |
| 20ft GP container loading capacity | 216 units | |
| 40ft HQ container loading capacity | 540 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Commercial dining spaces | Suitable for restaurants, cafes and workplace canteens as 3-person side seating | |
|---|---|---|
| Residential dining areas | Matching bench for 1800mm long dining tables in open-plan kitchens | |
| Public waiting areas | Suitable for lobbies, break rooms and public corridor waiting zones | |
| Outdoor covered patios | Usable in semi-outdoor spaces with water-resistant upholstery | |
| Open plan workspaces | Collaborative breakout seating for informal meeting areas |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Applicable standard for non-domestic seating strength, durability and stability | |
|---|---|---|
| EN 1022:2018 | Applicable standard for seating stability determination |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB 18580-2017 | Applicable standard for formaldehyde emission limits on plywood seat substrate | |
|---|---|---|
| GB/T 10357.3-2013 | Applicable standard for furniture mechanical performance testing for seating |
Standardized tender description text
This product must meet the following technical requirements: 1. GB 18580-2017: Applicable standard for formaldehyde emission limits on plywood seat substrate; 2. GB/T 10357.3-2013: Applicable standard for furniture mechanical performance testing for seating; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
