Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1780 x 680 x 800 mm | |
|---|---|---|
| Individual seat width | 580 mm | |
| Seat depth | 480 mm | |
| Seat height from floor | 450 mm | |
| Backrest height | 420 mm | |
| Armrest height from floor | 660 mm | |
| Divider bar width between seats | 30 mm | |
| Leg footprint spread | 1680 x 620 mm | |
| Floor clearance under seat | 320 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net product weight | 32 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Recommended maximum concurrent users | 3 adults | |
| Frame static load cyclic test reference | 100000 cycles | |
| Floor glide static friction coefficient | 0.6 | |
| Maximum concurrent user capacity | 3 adults | |
| Frame fatigue durability | 100000 load cycles | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back cushions | 12mm thick high-resilience polyurethane foam | |
|---|---|---|
| Seat and back upholstery | 1.0mm thick black polyurethane (PU) leather | |
| Support beam frame | 2.0mm thick cold-rolled steel tube with polished chrome plating | |
| Armrests | Cast aluminum alloy with polished chrome finish | |
| Vertical seat dividers | 1.5mm thick polished stainless steel strips | |
| Support legs | 1.8mm thick chrome-plated steel Y-shaped legs | |
| Floor contact pads | 12mm diameter non-slip rubber glides | |
| Seam construction | 8 stitches per inch reinforced stitching | |
| Seat and back cushion core | 60mm thick 40kg/m³ density high-resilience polyurethane foam | |
| Main support beam | 2.0mm thick cold-rolled steel tube with 0.1mm thick polished chrome plating | |
| Inter-seat dividers | 1.5mm thick polished chrome-plated steel strips | |
| Floor contact glides | 12mm diameter non-slip nitrile rubber pads |
Adjustment / rotation / tilt / mobility / storage features

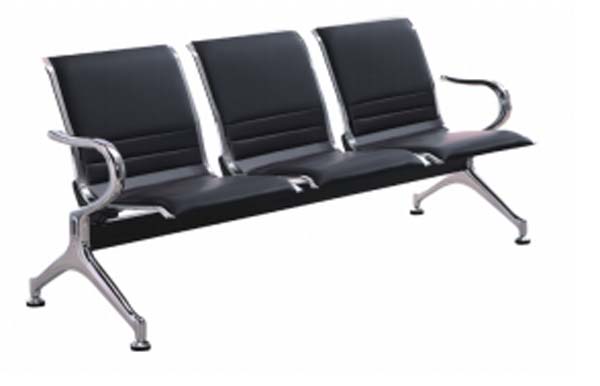

| Seating configuration | Fixed linear 3-seat gang arrangement with integrated individual backrests and separate seat surfaces | |
|---|---|---|
| Armrest support | Curved end armrests at both left and right ends of the bench | |
| Floor installation option | Pre-drilled glide holes for floor anchoring | |
| Cleaning access | 320mm under-seat clearance for broom, mop or robotic vacuum access | |
| Back support | Horizontal channel stitching on backrests to prevent upholstery sag and provide subtle lumbar contact | |
| Divider function | Chrome vertical dividers between seats to define personal seating space and prevent cross-contamination between users | |
| Seating arrangement | Fixed linear 3-position gang layout with independent backrests and connected seat surfaces, bolted permanent construction with no modular reconfiguration capability | |
| Floor mounting option | Pre-drilled mounting holes at each glide position allowing replacement of rubber glides with M8 expansion anchor bolts for permanent fixation in high-traffic public areas | |
| Backrest support design | Three horizontal stitched channels on each backrest to secure foam padding, prevent upholstery slippage and provide structured lumbar contact for seated users | |
| Inter-seat space definition | Full-height vertical chrome dividers between adjacent seats to define personal seating boundaries and reduce cross-contact between users | |
| Level adjustment | 10mm thread height adjustment on each floor glide to compensate for uneven floor surfaces and eliminate unit rocking | |
| Surface maintenance | Non-porous PU upholstery surface compatible with 75% alcohol and quaternary ammonium disinfectant wipes for routine public area sanitation |
Verified carton / gross weight / assembly / loading data
| Package count | 1 unit | |
|---|---|---|
| Carton dimensions | 1820 x 720 x 280 mm | |
| Gross weight per carton | 37 kg | |
| Packaging volume (CBM) | 0.37 CBM | |
| assembly time | 20 minutes | |
| 20ft GP container loading quantity | 72 units | |
| 40ft HQ container loading quantity | 175 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
Recommended spaces / users / usage modes
| Public transit waiting areas | Suitable for airport, railway station and bus terminal waiting zones due to durable frame and easy-to-clean PU surface | |
|---|---|---|
| Medical facility reception areas | Suitable for hospital, clinic and dental office waiting rooms, with smooth non-porous upholstery for infection control | |
| Government and bank service halls | Suitable for public service queue waiting areas, with defined individual seat dividers to maintain orderly queuing | |
| Office reception and breakout zones | Suitable for corporate lobby and employee rest areas, with padded cushions for extended waiting comfort | |
| Indoor use only | Designed for dry indoor environments, not suitable for outdoor installation without additional weatherproofing | |
| Medical facility reception zones | Suitable for hospital outpatient, clinic and dental office waiting rooms, with non-porous upholstery and open under-seat design to support infection control protocols with no dirt-trapping fabric crevices | |
| Public service hall waiting areas | Suitable for government service centers, bank branches and utility payment halls, with defined inter-seat dividers to maintain orderly queuing and a polished chrome finish matching formal institutional design aesthetics | |
| Corporate reception and breakout spaces | Suitable for office lobby waiting areas and employee rest zones, with padded foam cushions for comfortable short-term waiting and a neutral black finish compatible with most commercial interior schemes |
EU Market Access Requirements* EN Standards
| EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating | Applicable European standard for commercial public seating structural performance verification | |
|---|---|---|
| EN 1022:2018 Furniture - Seating - Determination of stability | Applicable standard for lateral and forward stability testing of the fixed bench |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for furniture | Applicable standard for dimensional tolerance, material strength and finish quality verification of metal furniture | |
|---|---|---|
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable standard for formaldehyde and heavy metal emission testing for any wood-based inner support components | |
| GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools | Applicable standard for static load, impact and fatigue durability testing of seating surfaces and backrests | |
| GB 20286-2006 Flame retardant products and components in public places - Burning behaviour requirement and mark | Applicable standard for upholstery fire resistance verification for seating installed in high-occupancy public spaces, recommended for procurement acceptance inspection |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for furniture: Applicable standard for dimensional tolerance, material strength and finish quality verification of metal furniture; 2. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable standard for formaldehyde and heavy metal emission testing for any wood-based inner support components; 3. GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools: Applicable standard for static load, impact and fatigue durability testing of seating surfaces and backrests; 4. GB 20286-2006 Flame retardant products and components in public places - Burning behaviour requirement and mark: Applicable standard for upholstery fire resistance verification for seating installed in high-occupancy public spaces, recommended for procurement acceptance inspection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
