PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1750 × 680 × 880 mm
Individual seat width	520 mm
Seat height from floor	435 mm
Individual seat depth	460 mm
Backrest height above seat	510 mm
Armrest height above seat	220 mm
Knee clearance under seat	435 mm
Leg spread width (end to end at floor)	1680 mm
Support beam cross-section	68 x 68 mm
Floor glide diameter	50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit net weight	45 kg
Total static load capacity	900 kg
Individual seat static load rating	300 kg
Design service life	20 years
Surface stain resistance	Wipe-clean non-porous surface
Frame corrosion resistance	Powder-coated rust-proof finish
Weld joint static load rating	1200 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back panels	20mm thick self-skin molded polyurethane, integrated steel insert
End armrests	2.0mm thick die-cast aluminum alloy, silver nano-sparkle powder coat
Support beam	2.0mm wall thickness hexagonal steel tube, electrostatic powder coat
Leg assemblies	2.0mm thick die-cast aluminum alloy, splayed Y-shape, silver finish
Floor glides	50mm diameter anti-slip nitrile rubber, adjustable leveling base
Beam fasteners	Grade 8.8 zinc-plated steel bolts, lock washers
Seat mounting brackets	1.5mm thick stamped steel, black powder coat
Surface finish on metal parts	Lead-free electrostatic polyester powder coating
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Fixed 3-position tandem seating on single rigid beam
Floor mounting	Free-standing with anti-slip glides, optional bolt-down fixation
Armrest layout	Two end-position armrests only, no intermediate dividing armrests
Seat ergonomics	Contoured lumbar curve and waterfall front seat edge
Modular part replacement	Individual seat/back/armrest/leg components are bolt-replaceable
Cleaning access	Open under-seat frame with no enclosed gaps
Seat attachment	Bolted bracket mounting to central beam
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions	1800 x 720 x 270 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office and public seating safety requirements	EN 16139:2013
Furniture surface emission limits	EN 13986:2004+A1:2015

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Multi-seat public seating performance	ANSI/BIFMA X2022
Floor glide performance	ANSI/BIFMA X2017

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Public seating structural safety	GB/T 3326
Metal furniture coating performance	GB/T 3325
Furniture mechanical performance for public seating	GB/T 10357.3

Standardized tender description text

This product must meet the following technical requirements:
1. Public seating structural safety: GB/T 3326;
2. Metal furniture coating performance: GB/T 3325;
3. Furniture mechanical performance for public seating: GB/T 10357.3;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TW-3S-BLU-AL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TW-3S-BLU-AL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TW-3S-BLU-ALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

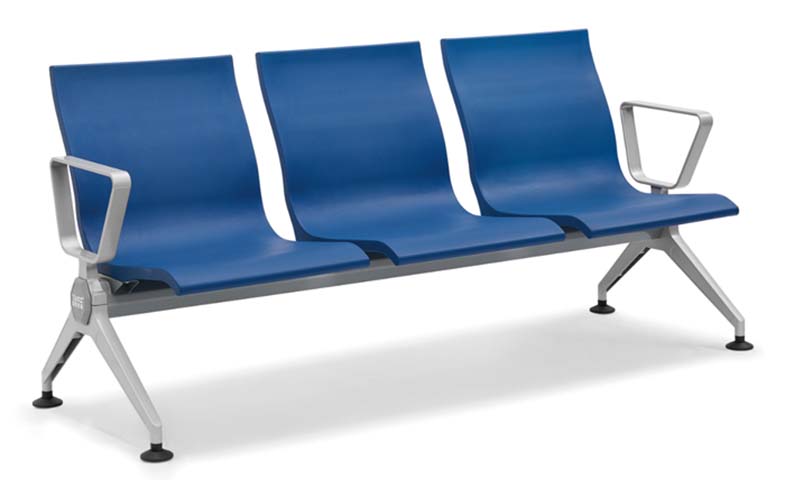

This 3-seat beam public tandem waiting chair balances durable construction, functional design, and approachable aesthetic for high-traffic public settings. Visually, the unit features uniform molded blue polyurethane seat and back panels contrasted by a silver metal frame, with clean linear lines from the continuous central support beam and splayed Y-shaped aluminum legs. The layout includes only end-position armrests with no intermediate dividers, creating an open, unobstructed seating profile that fits seamlessly into professional public environments. At 1750 mm wide, 680 mm deep, and 880 mm tall, the chair’s proportions align with standard public space clearances, with individual seats offering 520 mm of width and a 435 mm seat height from the floor, and 510 mm backrests positioned to support upright seated posture. Each seat incorporates a contoured lumbar curve and waterfall front edge to reduce pressure during extended waits, while the open under-seat frame eliminates enclosed gaps for quick, unobstructed cleaning access. The non-porous seat and back surfaces wipe clean easily to resist staining, and the lead-free electrostatic polyester powder coating on all metal components delivers rust-proof corrosion resistance for long-term use. The welded beam structure supports a 900 kg total static load capacity, with each individual seat rated for 300 kg static load, and weld joints rated for 1200 kg static load to withstand regular high-volume use over a 20-year design service life. Construction includes 20mm thick self-skin molded polyurethane seat and back panels with integrated steel inserts and 14 mm bent plywood internal support, mounted to a 2.0mm wall thickness hexagonal steel support beam via 1.5mm thick stamped steel brackets secured with Grade 8.8 zinc-plated steel bolts and lock washers. The 2.0mm thick die-cast aluminum end armrests sit 220 mm above the seat surface, matching the silver nano-sparkle powder coat finish of the splayed Y-shaped aluminum alloy legs, which terminate in 50mm diameter anti-slip nitrile rubber glides with adjustable leveling bases. The unit is free-standing for quick placement, with optional bolt-down fixation available for permanent installations, and individual seat, back, armrest, and leg components are bolt-replaceable to simplify long-term maintenance. This seating is suited for transit hubs, healthcare clinic waiting areas, government service lobbies, corporate reception zones, and educational institution common areas, pairing well with a 2.4 m executive desk for reception counter use with a reference daily use duration of 8 hours, subject to ergonomic confirmation. Procurement teams should note the set ships in two cartons with a total packaged gross weight of 23 kg, requires 40 minutes of assembly per unit, and should evaluate floor surface conditions to select between free-standing glide placement or bolt-down mounting for site-specific stability needs. No intermediate armrests are included, so teams should confirm seating layout needs align with the open 3-position configuration prior to purchase.

3-Seat Beam Public Tandem Waiting Chair with Aluminum End Armrests Specifications
