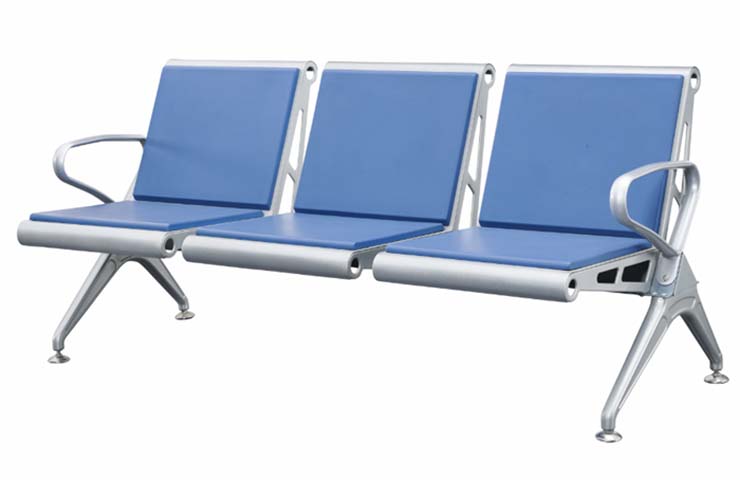

Product supplier3-Seat Blue Padded Public Waiting Gang Chair with Silver Steel Frame, 2.5mm thick cold-rolled steel tube, silver powder-coated finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1790 × 700 × 780 mm | |
|---|---|---|
| Seat depth | 480 mm | |
| Support beam outer diameter | 80 mm | |
| Seat panel thickness | 20 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 27 kg | |
|---|---|---|
| Per-seat static load capacity | 200 kg | |
| Recommended seated user capacity | 3 adults | |
| Seating durability cycle rating | 100000 cycles | |
| 24-hour static seat deformation limit | 110 kg | |
| Standard warranty period | 5 years | |
| Available color options | 6 | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main support beam | 2.5mm thick cold-rolled steel tube, silver powder-coated finish | |
|---|---|---|
| Tripod support legs | 2.0mm thick die-cast cold-rolled steel, silver powder-coated finish | |
| End armrests | Curved tubular steel, polished silver finish, bolted to leg assemblies | |
| Seat panels | 20mm thick self-skin polyurethane, matte blue surface, integrated mounting brackets | |
| Backrest panels | 20mm thick self-skin polyurethane, matte blue surface, metal side support frames | |
| Floor glides | Chrome-plated steel adjustable feet with non-slip rubber contact pads | |
| Fastening hardware | Zinc-plated steel bolts and lock nuts for beam-to-leg assembly | |
| Panel side frames | Die-cast aluminum alloy brackets with cutout detailing, silver finish | |
| Surface finish on metal components | Epoxy polyester powder coating, anti-rust treated for high-traffic use | |
| Seam spacing on upholstered edges | 50 mm | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed non-adjustable structure | Rigid bolted beam assembly with no recline, swivel, or fold mechanisms | |
|---|---|---|
| Floor leveling adjustment | Threaded adjustable glides allow 15mm height correction for uneven floors | |
| Modular seat configuration compatibility | Beam supports 1 to 5 seat units for custom row lengths | |
| Cushion upgrade option | Half-pad or full-pad PU seat/back upgrades available from bare steel base | |
| Permanent installation suitability | Pre-drilled glide bases support floor anchoring for high-security public areas | |
| Anti-trip leg design | Splayed tripod legs positioned at row ends to eliminate protruding middle legs | |
| Easy surface cleaning | Non-porous PU panels and smooth powder-coated metal allow wipe-down sanitization | |
| Inter-row spacing compatibility | 700mm total depth meets 900mm minimum aisle clearance requirements for public buildings | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Airport terminal waiting zones | High durability and easy cleaning suit constant high-volume passenger use | |
|---|---|---|
| Hospital and clinic waiting areas | Non-porous surfaces support regular sanitization for healthcare environments | |
| Bank and service hall queuing areas | Fixed sturdy structure prevents unauthorized movement in public service spaces | |
| Rail and bus station waiting halls | High load rating withstands heavy daily use by diverse passenger groups | |
| School and government office reception areas | Neutral blue/silver finish matches formal public interior design schemes | |
| Outdoor covered public waiting shelters | Powder-coated steel frame resists moisture and light weather exposure | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139 | Applicable strength, durability and safety standard for non-domestic public seating | |
|---|---|---|
| EN 1022 | Applicable stability test standard for commercial seating products | |
| EN 13501-1 Class B | Applicable fire reaction requirement for public space furniture materials |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 | Applicable for chair strength and durability testing for public seating procurement | |
|---|---|---|
| GB/T 22792.3 | Applicable for seating stability testing to prevent tip-over in public use | |
| GB 8624 B1 | Applicable flame retardancy requirement for public area seating materials |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3: Applicable for chair strength and durability testing for public seating procurement; 2. GB/T 22792.3: Applicable for seating stability testing to prevent tip-over in public use; 3. GB 8624 B1: Applicable flame retardancy requirement for public area seating materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
