PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 680 × 870 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat static load capacity	200 kg
Product net weight	71 kg
Recommended number of users	3 adults
Seat surface abrasion resistance	50000 cycles
Frame corrosion resistance (salt spray)	48 hours
Recommended daily usage turnover	200 users
Floor glide vertical static load	180 kg per glide
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and backrest panels	30mm thick integral molded polyurethane
Internal seat skeleton	1.2mm thick cold-rolled steel plate
Main support beam	2.5mm thick powder-coated mild steel
End legs and armrests	ADC12 die-cast aluminum with silver powder coating
Floor contact glides	Non-slip rubber with polymer base
Beam connection brackets	Die-cast aluminum with anti-loosening fasteners
Surface finish (metal parts)	Electrostatic powder coating, matte silver
PU surface finish	Semi-matte textured molded surface
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat positioning	Fixed non-reclining, non-swivel, non-lifting design
Floor stabilization	Four adjustable non-slip glides for uneven floor leveling
Seat modularity	Individual seats removable and replaceable via bracket connections
Cleaning compatibility	Non-porous PU surface compatible with hospital-grade disinfectant wipes
Installation option	Freestanding placement with optional expansion-screw ground fixation
Anti-pinch design	Rounded seat edges and controlled inter-seat gap size
Noise reduction	Bracket fastening system prevents metal-on-metal rattle during use
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging type	3-piece knock-down export carton packaging
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital clinic waiting areas	Suitable for triage and consultation waiting zones, disinfectant-compatible surfaces
Airport and rail station terminals	High-turnover heavy-duty structure for continuous passenger waiting use
Government and public service halls	Formal, durable fixed seating for citizen service waiting zones
Bank and office lobby reception	Low-maintenance multi-seat waiting for customer queuing areas
School and campus public areas	Vandal-resistant construction for student common area waiting spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Public seating strength and stability	EN 16139:2013
Furniture surface flame retardancy	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Multi-seat seating static load	ANSI/BIFMA X2017Clause 5
Seating durability cycle test	ANSI/BIFMA X2017Clause 8
Seating stability requirement	ANSI/BIFMA X2017Clause 4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Public seating mechanical safety	GB 28007
Furniture surface durability	GB/T 4893.8
Metal furniture coating performance	GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. Public seating mechanical safety: GB 28007;
2. Furniture surface durability: GB/T 4893.8;
3. Metal furniture coating performance: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · GW-3S-PU-AL1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · GW-3S-PU-AL1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · GW-3S-PU-AL1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

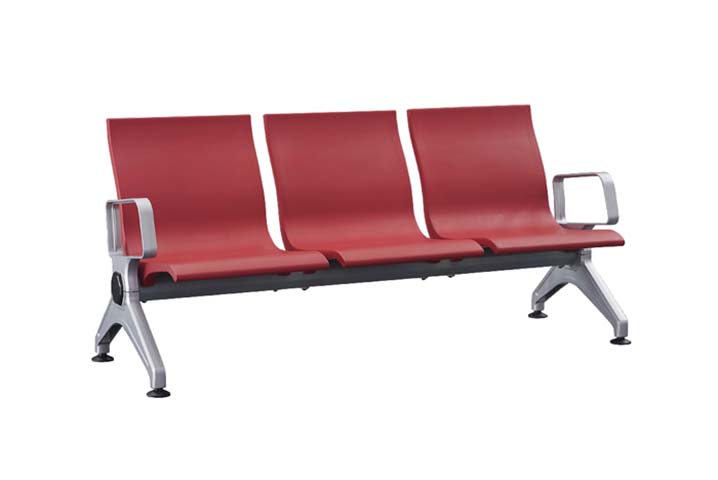

The 3-Seat Molded PU Gang Public Waiting Chair with Aluminum Frame (model GW-3S-PU-AL1800) delivers durable, low-maintenance fixed seating for high-traffic public environments, with a clean, utilitarian visual profile suited to formal and functional spaces alike. Its linear, beam-mounted layout presents three contoured, individual seat positions aligned along a single continuous support structure, with die-cast aluminum armrests defining each seating zone and tapered silver-finished end legs anchoring the unit to deliver a streamlined, uncluttered appearance. The semi-matte textured molded polyurethane seat and back surfaces, paired with matte silver electrostatic powder-coated metal components, create a cohesive, professional aesthetic that resists visible scuffs and wear from regular use. The chair is built for heavy, repeated use: 30mm thick integral molded polyurethane forms the seat and backrests, supported internally by 1.2mm cold-rolled steel plate and a 14mm bent plywood support board, with finished seat cushion thickness of 90mm, backrest padding thickness of 70mm, and a 240mm high lumbar support zone for ergonomic comfort during extended waits. The 2.5mm thick powder-coated mild steel main support beam connects to ADC12 die-cast aluminum armrests and legs with anti-loosening fasteners, while non-slip rubber glides with polymer bases sit at each floor contact point. Each seat supports a 200kg static load, the PU surface withstands 50,000 abrasion cycles, and the metal frame offers 48 hours of salt spray corrosion resistance, engineered to handle a daily usage turnover of 200 users. Functional design details prioritize ease of use and maintenance: the fixed non-reclining, non-swivel, non-lifting seat structure ensures long-term stability, while four adjustable non-slip glides allow leveling on uneven floors. Individual seats are removable and replaceable via bracket connections, the non-porous PU surface is compatible with hospital-grade disinfectant wipes, rounded seat edges and controlled inter-seat gaps prevent pinching hazards, and the fastening system eliminates metal-on-metal rattle to reduce ambient noise. The unit supports freestanding placement, with optional expansion-screw ground fixation for permanent installations. This chair is suited for hospital clinic triage and consultation waiting zones, airport and rail station passenger terminals, government and public service halls, bank and office lobby reception queuing areas, and school campus public common areas. For procurement teams, note the unit ships in 2 knock-down export cartons, requires 40 minutes of assembly per set, and is supplied as an unbranded product with no included coordinating desk; when paired with a work surface, a 2.4m executive desk is recommended for alignment.
