PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1820 × 768 × 800 mm
Seat height from floor	450 mm
Individual seat width	580 mm
Individual seat depth	480 mm
Backrest height above seat	600 mm
Armrest height above seat	220 mm
Main support beam cross-section	80 x 90 mm
Leg floor contact pad diameter	60 mm
Seat panel thickness	30 mm
Frame tube wall thickness	1.7 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	350 kg
Seating capacity	3 adults
Surface abrasion resistance	50000 cycles
Frame corrosion resistance service life	5 years
Product net weight	28 kg
Seamless surface cleanability rating	Medical-grade wipeable
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and backrest panels	Integral self-skinning polyurethane, bright green, seamless molded
Internal seat support frame	1.2 mm thick cold-rolled steel plate embedded in PU
Main horizontal support beam	1.7 mm wall thickness cold-rolled steel, chrome plated
Cantilever support legs	1.5 mm thick cold-rolled steel, polished chrome finish
Outboard armrests	Molded PU top pad on chrome-plated steel bracket
Floor mounting feet	Chrome-plated steel with anti-slip rubber base
Frame surface treatment	Electrostatic chrome plating over acid-pickled steel
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel
Five-star Base Material Thickness	Metal base wall 3.5 mm; diameter 700 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Fixed rigid beam-mounted 3 connected seats, no recline or rotation
Armrest layout	Armrests installed only at left and right outboard ends
Floor mounting option	Pre-drilled feet for permanent anchoring to hard floors
Surface maintenance	Seamless non-porous PU surfaces compatible with standard disinfectant wipes
Leveling adjustment	Threaded foot pads allow 15 mm height adjustment per leg
Accessory compatibility	Pre-mounting points for optional intermediate dividers, side tables, or IV poles
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital clinic waiting areas	Suitable for patient and visitor waiting, disinfectant-compatible surface
Airport and transit terminal waiting zones	High-traffic durable construction, easy to clean between passenger use
Government service hall waiting lines	Stable fixed installation prevents movement, clear seat demarcation
Bank and office reception waiting areas	Bright green finish provides clear visual guidance for visitor seating
School and public facility lobby areas	Sturdy construction resists rough use by general public, low maintenance
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Public seating safety requirement	EN 16139:2013
Furniture surface fire resistance	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Multi-place seating structural standard	ANSI/BIFMA X2015

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Metal furniture general requirement	GB/T 3325
Furniture mechanical performance test for seating	GB/T 10357.3
Furniture environmental test for metal surfaces	GB/T 4893.9

Standardized tender description text

This product must meet the following technical requirements:
1. Metal furniture general requirement: GB/T 3325;
2. Furniture mechanical performance test for seating: GB/T 10357.3;
3. Furniture environmental test for metal surfaces: GB/T 4893.9;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PUB-G3-CRL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PUB-G3-CRL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PUB-G3-CRLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

This 3-seat public waiting beam seating delivers a streamlined, functional seating solution built for consistent high-traffic use, with a cohesive visual design anchored by bright green seamless molded seats and backrests paired with polished chrome cantilever framing. The linear fixed layout features three connected evenly spaced seats, with armrests positioned only at the outboard left and right ends to create unobstructed, clearly demarcated seating positions, while the slim cantilever leg structure keeps floor space open for ease of movement around the seating bank. The bench is engineered for long-term durability: seats and backrests are formed from integral self-skinning polyurethane, with embedded 1.2mm cold-rolled steel plates and 14mm bent plywood internal supports to deliver consistent structural stability. The main horizontal support beam uses 1.7mm wall thickness cold-rolled steel, with 1.5mm thick cold-rolled steel cantilever legs, all finished with electrostatic chrome plating over acid-pickled steel for corrosion resistance. Outboard armrests combine a molded PU top pad with a chrome-plated steel bracket, and floor mounting feet feature chrome-plated steel construction with anti-slip rubber bases. With a total static load capacity of 350kg, the unit seats three adults, with fixed rigid beam mounting that eliminates recline or rotation for consistent, predictable use. Seamless non-porous PU surfaces offer medical-grade wipeable performance, compatible with standard disinfectant wipes to support fast, thorough cleaning between users, and 50,000 cycles of surface abrasion resistance supports heavy repeated use. Threaded foot pads allow 15mm of height adjustment per leg to accommodate uneven floors, while pre-drilled feet enable permanent anchoring to hard floors for added stability. Pre-mounted connection points support optional add-ons including intermediate dividers, side tables, or IV poles to adapt to specific site needs. This bench is well suited for hospital and clinic waiting areas, airport and transit terminal waiting zones, government service hall queue lines, bank and office reception waiting areas, and school or public facility lobbies, where its bright green finish offers clear visual guidance for visitor seating. When planning procurement, note that each unit ships in two cartons, requires 40 minutes of assembly per set, and features pre-set mounting hardware for permanent floor installation; the fixed design is intended for static placement rather than frequent reconfiguration, and the corrosion-resistant frame delivers a 5-year service life under standard public use conditions.

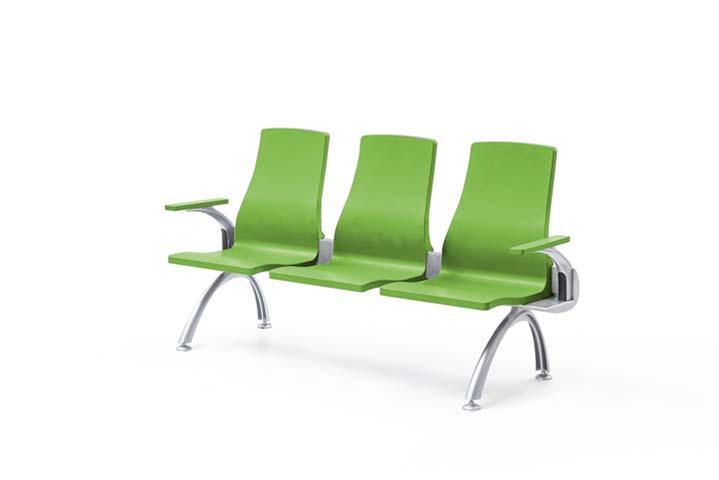

3-Seat Green Molded PU Public Beam Waiting Bench with Chrome Cantilever Legs Specifications
