Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions (excl. extended IV poles) | 2140 x 800 x 1080 mm | |
|---|---|---|
| Single seat width | 600 mm | |
| Seat height from floor | 450 mm | |
| Seat depth | 480 mm | |
| Backrest height above seat | 630 mm | |
| Armrest height above seat | 220 mm | |
| IV pole extended height above seat | 1200 mm | |
| Underframe leg tube section | 60 x 30 mm | |
| Perforated back panel thickness | 6 mm | |
| Frame wall thickness | 2.0 mm | |
| Footpad diameter | 60 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Total static load capacity (3 seats) | 450 kg | |
|---|---|---|
| Net weight per complete unit | 58 kg | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Foam density (seat cushion) | 45 kg/m³ | |
| Seat cushion foam thickness | 80 mm | |
| Backrest foam thickness | 50 mm | |
| Foam rebound rate | 60% | |
| Powder coating corrosion resistance | 72 hours neutral salt spray | |
| Seam stitch pitch | 8 stitches per inch | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main load-bearing frame | Cold-rolled steel tube, electrostatic powder coated after pickling and phosphating | |
|---|---|---|
| Perforated back support structure | Cold-rolled perforated steel plate with reinforced edges | |
| Seat and back cushion upholstery | Scratch-resistant medical-grade PU (synthetic leather) over high-resilience polyurethane foam | |
| Cushion base substrate | High-density fiberboard underlay for foam support | |
| Integrated IV poles | Chrome-plated stainless steel, 2 double hooks per pole top | |
| Armrest pads | PU-padded curved support surface mounted to steel brackets | |
| IV pole height adjustment lock | Steel quick-release locking collar with rubber retention knob | |
| Floor contact footpads | Non-slip rubber pads with chrome decorative cover at each leg base | |
| Armrest support brackets | 1.5mm thick bent steel tube with welded frame attachment | |
| Frame weld joints | Full penetration welded seams with ground smooth finish before coating | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features

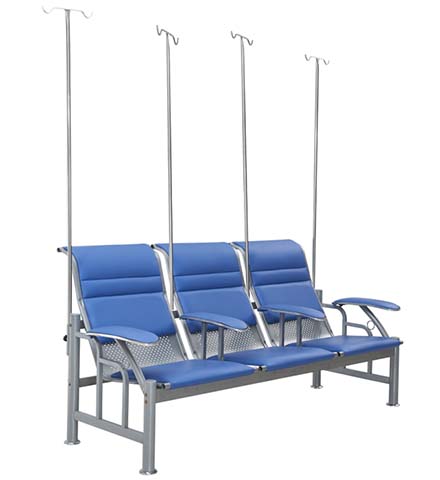

| Seating configuration | Linear 3 connected adult seats with shared rigid steel underframe | |
|---|---|---|
| IV pole arrangement | 4 integrated height-adjustable IV poles with dual hanging hooks per pole | |
| Back support structure | Fixed reclined metal back with padded cushion for static long-duration seating | |
| Armrest layout | 4 individual padded armrests positioned between and at both ends of seats | |
| IV pole height adjustment | Vertical telescoping adjustment with locking knob to set suspension height | |
| Installation type | Floor-mounted fixed placement with pre-drilled leg base holes for anchoring | |
| Cleaning compatibility | Smooth PU surfaces and powder-coated metal resistant to clinical disinfectant wipes | |
| Seating separation | Individual contoured cushions to delineate separate patient seating positions | |
| Underframe cross bracing | Horizontal steel cross bars between legs to prevent frame racking | |
| Backrest recline angle | 120 degrees | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Hospital outpatient infusion rooms | Designed for patients receiving intravenous therapy over extended seated periods | |
|---|---|---|
| Community health clinic waiting and treatment areas | Durable gang seating suitable for high-traffic public medical facilities | |
| Emergency department observation zones | Fixed, easy-to-clean seating for short-stay patient monitoring | |
| Vaccination and blood collection centers | Seating with armrests suitable for injection and blood draw procedures | |
| Long-term care facility common treatment areas | Stable, supportive seating for elderly patients during regular treatment | |
| Recommended configuration | Anchor to concrete flooring for stability in high-traffic public medical spaces | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
