PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1791 × 680 × 880 mm
Seat height from floor	450 mm
Individual seat width	510 mm
Individual seat depth	480 mm
Backrest height above seat	420 mm
Armrest height above seat	230 mm
Connecting beam wall thickness	2.0 mm
Seat/back PU material thickness	30 mm
End leg splay width per side	620 mm
Leveling foot diameter	50 mm
Under-seat ground clearance	280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single seat static load capacity	200 kg
PU surface abrasion resistance	50000 cycles
PU material flame retardancy grade	B1
Unit net weight	35 kg
Recommended maximum daily use cycles	500 uses
Frame corrosion resistance service life	10 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and backrest panels	Integral-skin rigid polyurethane (PU) molding
End armrests and leg frames	Polished die-cast aluminum alloy
Horizontal connecting beam	Cold-rolled steel tube with matte powder coat
Seat mounting brackets	Die-cast aluminum alloy with zinc-plated fasteners
Leveling feet	Chrome-plated steel stem with non-slip rubber base
Seat internal support skeleton	1.2 mm thick cold-rolled steel plate
Surface finish on aluminum components	Polished clear anodized coating
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel
Five-star Base Material Thickness	Metal base wall 3.5 mm; diameter 700 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed non-reclining seat structure	All seat and back units mounted rigidly with no tilt or recline adjustment
Floor-mounted installation option	Legs include pre-drilled foot points for bolt-down secure fixation
Adjustable leveling feet	Each leg has a threaded adjustable foot to compensate for uneven floors
Seamless easy-clean PU surfaces	Contoured, seam-free seat and back surfaces support wipe-down sanitation
No intermediate armrests	Armrests provided only at the two outer ends for open multi-seat access
Modular seat count configurability	Beam-mounted design supports 5seat variants per shared support structure
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions (L×W×H)	1855 x 770 x 860 mm
Packaged gross weight	40 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Airport departure/arrival waiting zones	Durable easy-clean structure supports continuous high passenger throughput
Hospital and clinic waiting areas	Seamless non-porous PU surfaces support clinical hygiene wipe-down protocols
Rail and transit station waiting halls	Corrosion-resistant aluminum frame performs reliably in humid high-traffic environments
Bank and government service lobbies	Consistent seat dimensions support accessible queuing and visitor waiting
School administration and reception areas	Sturdy construction withstands student and visitor daily use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Public seating strength and stability	EN 16139:2013
Furniture surface fire resistance	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.4 Public and Lounge Seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Public seating mechanical safety requirement	GB/T 35607
Furniture flame retardancy requirement	GB 20286
Metal furniture coating durability	GB/T 3325

Standardized tender description text

This product must meet the following technical requirements:
1. Public seating mechanical safety requirement: GB/T 35607;
2. Furniture flame retardancy requirement: GB 20286;
3. Metal furniture coating durability: GB/T 3325;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TPB-PU3-ALU-1791

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TPB-PU3-ALU-1791

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TPB-PU3-ALU-1791Open Export Tool

Quick Actions

Post an RFQ

Product Description

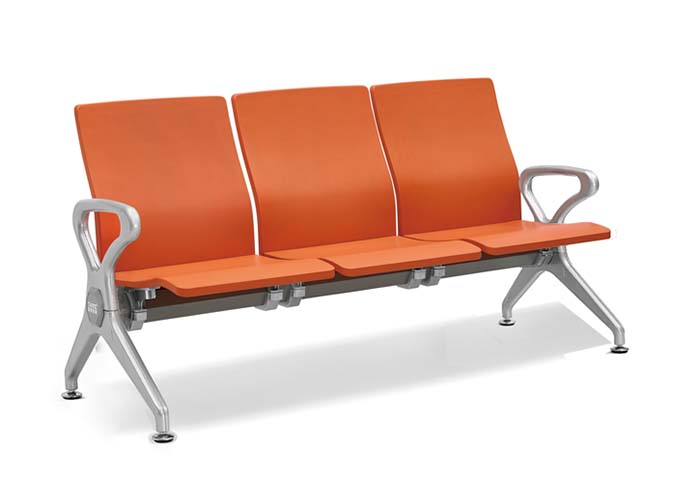

This 3-seat high-traffic public waiting bench delivers robust, functional tandem seating designed for sustained use in busy shared spaces, finished with vibrant orange integral-skin polyurethane seats and backrests paired with a polished metal frame. The unit presents a streamlined, open layout with armrests positioned only at the two outer ends, eliminating intermediate barriers to enable flexible, accessible multi-seat access, with gently contoured, seam-free seat and back surfaces set at a fixed 125° angle for consistent supported posture across all three positions. The overall form balances clean, professional visual appeal with structural durability, suited to high-visibility public environments. Construction prioritizes long-term resilience for frequent use: seats and backrests are formed from 30mm thick rigid integral-skin PU, supported internally by 14mm bent plywood reinforcement and a 1.2mm cold-rolled steel plate skeleton, with 45 kg/m³ density foam delivering 65% rebound for sustained comfort. End frames, armrests, and seat mounting brackets are constructed from polished die-cast aluminum alloy with a clear anodized coating, connected by a 2.0mm wall thickness cold-rolled steel beam finished in matte powder coat, and fitted with zinc-plated fasteners. Each leg features a chrome-plated steel stem with a non-slip rubber adjustable leveling foot to compensate for uneven floors, plus pre-drilled mounting points for permanent bolt-down floor fixation. The PU surface withstands 50000 abrasion cycles, carries a B1 flame retardancy rating, supports a 200kg static load per individual seat, and the frame delivers 10 years of corrosion-resistant service, rated for up to 500 daily use cycles per seat. Key practical features include seamless, non-porous seat surfaces that enable quick wipe-down sanitation, no moving recline components to reduce maintenance needs, and a beam-connected modular design that supports configuration of up to 5-seat variants on a shared support structure. Individual seat dimensions are standardized for accessible, consistent user space, with a 450mm seat height, 230mm outer armrest height above the seat, and 420mm backrest height above the seat for upright supported waiting. This bench is well-suited for airport departure and arrival zones, hospital and clinic waiting areas, rail and transit station halls, bank and government service lobbies, and school administration reception areas, where its durable, easy-clean construction matches continuous visitor throughput needs. Procurement teams should note the model number TPB-PU3-ALU-1791, unbranded supply structure, 40-minute per-set assembly time, 2-carton packaging configuration, 35kg unit net weight, and available floor mounting hardware to plan installation, shipping, and ongoing maintenance alignment with site requirements.

3-Seat High-Traffic Public Waiting Bench with Orange PU Seats and Aluminum Frame Specifications
