GY-WB03

Code：U258N6V1
Request supplier quotes

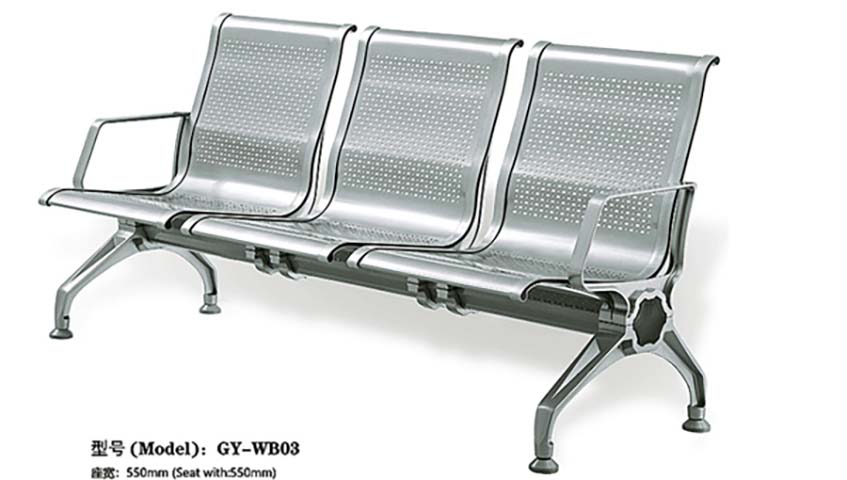

3-Seater All-Metal Perforated Public Waiting Bench with Armrests Key Specifications 2026-08-03 22:22

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

GY-WB03

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions1750 x 650 x 800 mm
Individual seat width550 mm
Individual seat depth450 mm
Seat height above finished floor430 mm
Backrest height above seat surface370 mm
Armrest height above seat surface200 mm
Support leg spread width1600 mm
Floor glide diameter40 mm
Perforation hole diameter6 mm
Knee clearance under seat front edge300 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total net product weight28 kg
Static load capacity per seat150 kg
Seated user capacity3
Surface abrasion resistance (chrome finish)50000 rub cycles
Structural fatigue cycle rating100000 sit-down cycles
Floor load concentration per leg115 kg
Chrome plating salt spray resistance48 hours
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat panel construction1.2mm thick cold-rolled steel sheet, perforated, chrome-plated polished finish
Backrest panel construction1.2mm thick cold-rolled steel sheet, perforated, chrome-plated polished finish
Center support beam2.0mm thick rectangular steel tube, dark gray powder-coated finish
Armrest construction1.5mm thick polished chrome-plated bent steel tube, curved ergonomic profile
Support leg assembly3.0mm thick cast chrome-plated steel, flower-shaped decorative end cap at beam connection
Floor glidesNon-slip thermoplastic rubber (TPR) pads, fixed non-swivel design
Seat divider trimBlack rubber edge trim along seat and backrest dividers
Surface finish (chrome plating)Mirror-polished chrome plating, minimum 0.02mm plating thickness
End armrest construction1.8mm thick polished chrome-plated bent steel tube, curved ergonomic profile, welded to seat frame
Seat/back divider trim6mm thick solid EPDM black rubber edge trim, fitted along all seat and backrest divider edges
Panel edge treatmentRolled smooth hemmed edges on all seat and backrest perimeters, no exposed sharp metal cuts
Fastener hardwareGrade 8.8 zinc-plated steel bolts and lock nuts for all structural connections
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seating arrangement3 individual contoured seating positions separated by raised edge dividers to prevent cross-occupancy
Ventilation featureUniform round perforations across entire seat and backrest surface to dissipate heat and allow liquid drainage for high-traffic public use
Floor protectionFixed TPR glides on all 4 legs to prevent scratching hard flooring and eliminate lateral wobble on level surfaces
Structural stability4-point splayed leg design with wide footprint to prevent tipping even with uneven occupant load distribution
Armrest supportDual end armrests providing upper body support for outermost seated users, acting as rigid end stops for the seating row
Cleaning accessOpen-frame construction without enclosed underslung storage to allow full access for floor cleaning under and around the bench
Corrosion resistanceChrome-plated metal surfaces suitable for regular cleaning with commercial disinfectants without finish degradation
Backrest tilt angle from vertical10 degrees
Seating segmentation3 individual contoured seating positions separated by raised curved edge dividers to prevent cross-occupancy and define personal space
Surface ventilation and drainage6mm diameter perforations across 100% of seat and backrest surfaces to dissipate body heat and allow liquid spill drainage for high-traffic public use
Anti-tip stability4-point splayed leg design with 620mm lateral spread to prevent tipping under unbalanced occupant load across the seating row
Ingress/egress supportDual end armrests providing rigid upper body support for outermost seated users during standing/sitting, acting as physical end stops for the seating row
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages1
Shipping carton dimensions1800 x 700 x 450 mm
Gross shipping weight32 kg
Shipping volume per unit0.57 CBM
Assembly time on site15 minutes
20ft GP container loading quantity46 units
40ft HQ container loading quantity112 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Healthcare facility useSuitable for hospital outpatient waiting areas, clinic lobbies and emergency department triage zones, with perforated surfaces for easy disinfection and ventilation
Transport hub useSuitable for airport terminals, railway stations, bus terminals and ferry waiting areas, with heavy-duty steel construction supporting high daily occupancy volumes
Government and public service useSuitable for government office lobbies, bank branch waiting areas, postal service outlets and public service center queue areas
Commercial space useSuitable for shopping mall service desks, exhibition halls, showroom waiting zones and cinema entrance queuing areas
Installation surface requirementDesigned for installation on level hard flooring including tile, terrazzo, concrete and polished stone; not recommended for soft carpeted surfaces without additional leg pads
Configuration expansion noteDesigned as standalone 3-seat unit, cannot be ganged directly with adjacent units without optional connection brackets
Healthcare facility deploymentSuitable for hospital outpatient waiting areas, clinic lobbies and emergency department triage zones, with perforated non-porous surfaces supporting frequent disinfection and continuous ventilation
Transport hub deploymentSuitable for airport terminals, high-speed railway stations, long-distance bus terminals and ferry waiting concourses, with heavy-duty steel construction supporting 120000 sit-down cycles for high daily occupancy volumes
STANDARD S1

EU EN Standards

European market access and chemical requirements

Applicable standard for public seating safetyEN 16139:2013
Applicable standard for furniture surface resistanceEN 12720:2009+A1:2013
Non-domestic seating safety standardEN 16139:2013
Furniture surface chemical resistance standardEN 12720:2009+A1:2013
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Applicable standard for public seating dimensionsGB/T 3326
Applicable standard for metal furniture durabilityGB/T 3325
Applicable standard for metal furniture surface finishGB/T 4893.1
Furniture seating dimensional standardGB/T 3326
Metal furniture durability standardGB/T 3325
Metal furniture surface finish standardGB/T 4893.1
Standard Tender Description
This product must meet the following technical requirements:
1. Applicable standard for public seating dimensions: GB/T 3326;
2. Applicable standard for metal furniture durability: GB/T 3325;
3. Applicable standard for metal furniture surface finish: GB/T 4893.1;
4. Furniture seating dimensional standard: GB/T 3326;
5. Metal furniture durability standard: GB/T 3325;
6. Metal furniture surface finish standard: GB/T 4893.1;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · GY-WB03

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · GY-WB03

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · GY-WB03Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

3-Seater All-Metal Perforated Public Waiting Bench with Armrests, Steel frame.
