Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1900 x 780 x 890 mm | |
|---|---|---|
| Per-seat width | 580 mm | |
| Seat height | 450 mm | |
| Seat depth | 450 mm | |
| Backrest height | 480 mm | |
| PU seat/back panel thickness | 30 mm | |
| Support beam cross-section | 90 x 80 mm | |
| Support beam wall thickness | 3.0 mm | |
| End armrest length | 360 mm | |
| Leveling foot diameter | 40 mm | |
| Leg splay width (each end) | 585 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Per-seat static load capacity | 150 kg | |
|---|---|---|
| Net weight per 3-seat unit | 60 kg | |
| PU foam density | 60 kg/m³ | |
| PU surface hardness | 80 Shore A | |
| Recommended number of users | 3 adults | |
| Surface abrasion resistance | 100000 cycles | |
| Operating temperature range | 60 °C | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

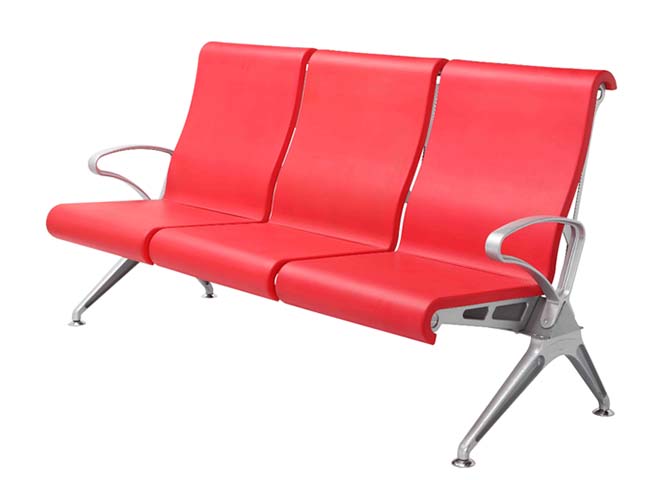

| Seat and back panels | Integral molded self-skin red polyurethane | |
|---|---|---|
| Inner support frame under PU | 1.2 mm thick steel tube and 1.0 mm steel plate | |
| Main structural beam | Powder-coated cold-rolled steel octagonal tube | |
| End armrests | 5 mm thick die-cast aluminum alloy | |
| Outrigger support legs | Die-cast aluminum alloy with epoxy powder coating | |
| Leveling feet | Non-skid PP with stainless steel base | |
| Seat mounting brackets | 2.5 mm thick steel with anti-rust treatment | |
| Surface finish on metal parts | Electrostatic polyester powder coating | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | 3 connected fixed seats on shared beam, no middle armrests | |
|---|---|---|
| Backrest function | Fixed upright 100° back angle, no recline adjustment | |
| Leveling adjustment | 10 mm height adjustment per foot for uneven hard floors | |
| Installation compatibility | Suitable for floor anchor mounting or free-standing placement | |
| Surface maintenance | Waterproof, stain-resistant seamless PU surface for wipe cleaning | |
| End armrest function | Curved end armrests provide upper body support at unit terminals | |
| Structural rigidity | Single continuous beam eliminates wobble between adjacent seats | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Airport departure/arrival waiting areas | Durable, easy-clean construction supports continuous high-traffic passenger use | |
|---|---|---|
| Railway and coach station waiting halls | Fixed rigid structure resists heavy daily use and impact from luggage | |
| Hospital and clinic waiting zones | Stain-resistant seamless surface allows quick disinfection between users | |
| Government public service lobbies | Consistent modular design matches standardized public facility furnishing | |
| Bank and service hall customer waiting areas | Neat professional appearance fits formal public-facing commercial spaces | |
| Semi-outdoor transit terminal platforms | Weather-resistant PU and coated metal withstand intermittent outdoor exposure | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Non-domestic seating strength, durability and stability requirements for public areas | |
|---|---|---|
| EN 1022:2018 | Seating stability test standard, applicable to fixed beam seating verification |
US and Canada office-furniture standards
| ANSI/BIFMA X5.11-2015 | Standard for heavy-duty public seating, covering static and fatigue load requirements |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to frame strength verification | |
|---|---|---|
| GB 20286-2006 | Flame retardant requirements for public seating materials, recommended B1 grade compliance | |
| GB/T 10357.3-2013 | Furniture mechanical test for seating strength and durability, applicable to load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame strength verification; 2. GB 20286-2006: Flame retardant requirements for public seating materials, recommended B1 grade compliance; 3. GB/T 10357.3-2013: Furniture mechanical test for seating strength and durability, applicable to load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
