PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 700 × 800 mm
Individual seat width	530 mm
Individual seat depth	450 mm
Seat height from floor	430 mm
Backrest height per seat	400 mm
Center-to-center seat divider gap	25 mm
Armrest height from seat surface	200 mm
Leg spread width (front pair)	580 mm
Floor glide diameter	50 mm
Frame crossbeam thickness	50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight range	28 kg
Per-seat static load capacity	150 kg
Recommended maximum users	3 people
Seamless PU surface abrasion resistance reference	50000 cycles
Frame static load test reference	8000 N
Recommended maximum occupants	3 people
Seamless PU surface abrasion resistance	50000 cycles
Floor glide coefficient of friction	0.6
Impact resistance (seat drop test)	10000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat panels	Integral-skin polyurethane, navy blue, 3mm thick outer wear layer
Backrest panels	Integral-skin polyurethane, navy blue, same molded contour as seats
Armrests	Die-cast aluminum alloy, silver powder-coated, open-loop ergonomic shape
Support crossbeam	Cold-rolled steel rectangular tube, gray powder-coated, full length under seats
End leg frames	Die-cast aluminum alloy, silver powder-coated, three-point splayed leg design per end
Floor glides	Non-marking TPR rubber, fixed bolt-on, height-adjustable leveling pad
Seat-to-frame fasteners	Stainless steel hex bolts, corrosion-resistant, fully recessed
Surface finish	Matte anti-glare coating on metal components, stain-resistant self-skin PU surface
Metal surface finish	Matte anti-glare powder coating, 60μm thickness, scratch-resistant
PU surface finish	Stain-resistant matte self-skin surface, disinfectant-compatible
Seat dividers	Integrally molded PU raised divider, 30mm height between adjacent seats
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating structure	Fixed three-position individual seat layout, with molded raised dividers between seats
Cleaning access	Smooth non-porous PU surfaces and open under-seat frame, no enclosed gaps for debris accumulation
Floor stability	Four-point floor contact with non-slip rubber glides, no casters for permanent placement
Anti-tip design	Splayed outward leg geometry extending outside seat footprint, 580mm front leg spread
Ergonomic support	Fixed contoured seat waterfall front edge and curved lumbar backrest shape
Modular connection capability	End leg frames pre-drilled for ganging multiple bench units into continuous rows
Corrosion resistance	Powder-coated aluminum and steel frame suitable for indoor climate-controlled public spaces
Seating layout	Fixed three-position individual seat layout, with 30mm high molded raised dividers between seats
Anti-tip performance	Splayed outward leg geometry extending 80mm outside seat footprint, 580mm front leg spread
Modular gang connection	End leg frames pre-drilled for M8 bolted connection, allowing multiple bench units to be joined into continuous rows
Leveling adjustment	Floor glides provide 10mm vertical adjustment range to compensate for uneven indoor flooring
Recline Angle / Lock Reference	125° with 3 suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Hospital outpatient waiting areas	Ideal for triage, consultation and waiting zones, with easy-to-clean non-porous surfaces and durable construction for high daily use
Transportation terminal waiting halls	Suitable for airport, railway station and bus terminal seating, with high load capacity and anti-tip frame for continuous public use
Government service hall queuing areas	Appropriate for public service centers, bank lobbies and administrative office waiting zones, with clear individual seat dividers for orderly queuing
Indoor commercial lobby waiting spaces	Suitable for office building lobbies, retail customer service areas and clinic reception zones, with neutral navy and silver finish matching professional decor
Temporary event spectator seating	Usable for indoor exhibition, conference and event temporary seating, with ganging capability to form continuous seating rows
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Non-domestic seating safety	EN 16139:2013
Furniture surface flame spread	EN 13501
Office and public seating stability	EN 1022:2019

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Multi-seat public seating test	ANSI/BIFMA X2020
Furniture VOC emissions	ANSI/BIFMA e2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Public seating mechanical safety	GB/T 35607
Furniture surface heavy metal limits	GB 18584
Furniture impact resistance test	GB/T 4893.9

Standardized tender description text

This product must meet the following technical requirements:
1. Public seating mechanical safety: GB/T 35607;
2. Furniture surface heavy metal limits: GB 18584;
3. Furniture impact resistance test: GB/T 4893.9;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WT-PU-3S-AL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WT-PU-3S-AL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WT-PU-3S-ALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

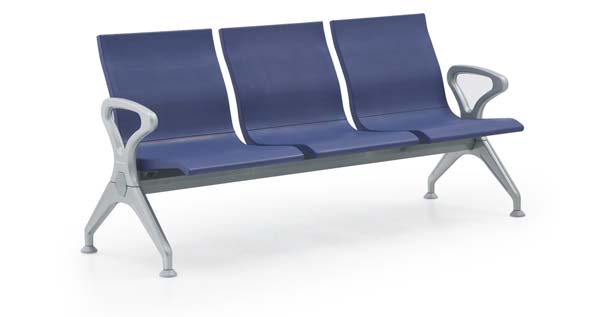

The three-seat aluminum frame public waiting chair, model WT-PU-3S-AL, is an unbranded public waiting bench designed for high-traffic shared spaces. Its streamlined form features a linear three-position fixed layout, with navy blue integral-skin polyurethane seats and backrests accented by silver powder-coated die-cast aluminum armrests and leg frames. Molded 30mm raised PU dividers sit between adjacent seats to clearly define individual occupancy zones, preventing overcrowding, while an open under-seat frame creates a clean, uncluttered visual profile. The unit features a matte anti-glare metal finish and smooth matte PU surfaces, with a neutral color palette that complements understated professional interior schemes. Constructed for heavy-duty public use, the bench combines a die-cast aluminum frame, cold-rolled steel rectangular support crossbeam with gray anti-rust powder coating, and integrated one-piece polyurethane seats and backrests with a thick outer wear layer. Aluminum armrests feature an open-loop ergonomic shape, while each leg terminates in a non-marking TPR rubber floor glide with bolt-on height adjustment to level the unit on uneven hard flooring. Stainless steel recessed hex bolts secure all seat-to-frame connections, and all metal components carry a scratch-resistant matte powder coat. The PU surfaces are non-porous, stain-resistant, and compatible with common public space disinfectants. Seating surfaces include a contoured waterfall front seat edge, curved lumbar support zone, and fixed ergonomic shape to support upright waiting posture. The splayed outward leg geometry extends beyond the seat footprint for anti-tip stability, with four-point non-slip floor contact for permanent static placement without casters. Pre-drilled end leg frames allow multiple units to be ganged together with bolted connections to form continuous custom-length seating rows, while the open under-seat structure and smooth PU surfaces enable quick, thorough cleaning without enclosed gaps that trap debris. This bench is well suited for hospital outpatient waiting zones, transportation terminal waiting halls, government service and bank queuing areas, commercial office and retail lobby waiting spaces, and temporary indoor event spectator seating. For procurement planning, note that the unit ships knock-down in separate cartons per set, with straightforward on-site assembly. Confirm all material specifications, connection hardware specs, and structural performance details with the supplier prior to final order placement, as some listed specifications are reference values aligned to industry public seating benchmarks rather than formal supplier test data. The fixed three-seat configuration is rated for a maximum of three simultaneous users, with abrasion-resistant seamless PU surfaces and high static load capacity tailored for consistent daily public use.

Three-Seat Aluminum Frame Public Waiting Chair with Polyurethane Seats and Backrests Specifications
